PR 3100 - Mounting and Demounting of System 3000

3100V106-IN 9
MOUNTING AND DEMOUNTING OF SYSTEM 3000

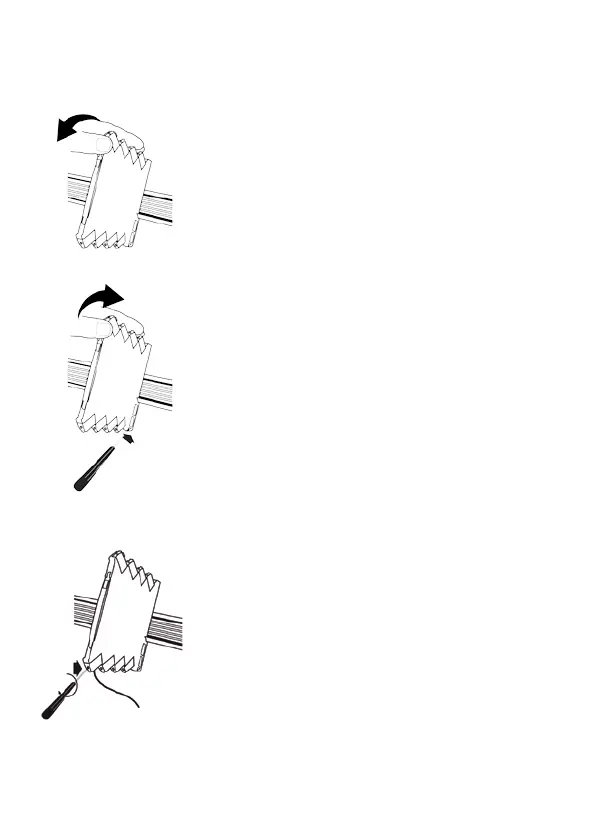

Picture 1:
Mounting on DIN rail / power rail.
Click the device onto the rail
Picture 2:
Demounting from DIN rail / power rail .
First, remember to demount the connectors with
hazardous voltages. Detach the device from the rail
by lifting the bottom lock.
Picture 3:
Wire size 0.13 x 2.5 mm
2
stranded wire.
Screw terminal torque 0.5 Nm.
