PR 3109 - DIP-SWITCH PROGRAMMING

18 3100V106-IN
1 2 3 4 5 6 7 8 9 10
0…20mA OFF OFF OFF OFF 0…20mA OFF OFF OFF NA NA NA
4…20mA OFF OFF ON OFF 4…20mA OFF ON OFF NA NA NA
0…10V OFF ON OFF OFF 0…10V ON OFF OFF NA NA NA
2…10V OFF ON ON OFF 2…10V ON ON OFF NA NA NA
0…5V OFF ON OFF ON 0…5V ON OFF ON NA NA NA
1…5V OFF ON ON ON 1…5V ON ON ON NA NA NA
0...20 mA Tx ON OFF OFF OFF
4...20 mA Tx ON OFF ON OFF
DIP-SWITCH PROGRAMMING

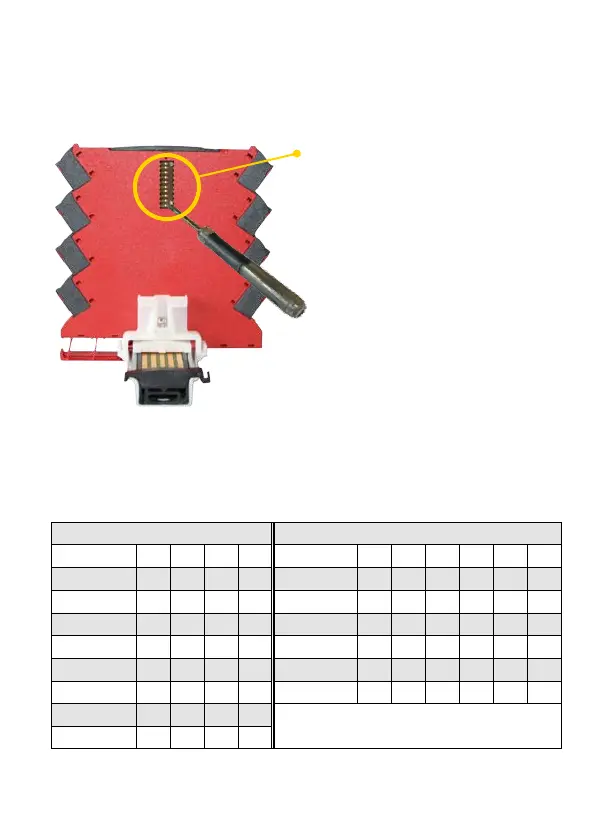

The devices 3104, 3105 and 3109 can be configured via DIP-switches. The DIP-
switches are located on the side of the device and can be adjusted with a small
screwdriver or other implement.
Adjustment of DIP-switches.
Default factory settings are:
Input=0…20mA
Output=0…20mA
All DIP-switches in the OFF position
The tables below show the configuration based on DIP-switch settings.
NA = no function of DIP-switch.
3104
Input setup Output setup
