6
Bidirectional ventilation unit with heat recovery “PRANA” is a monoblock ready for use in
accordance with design and assembly tasks and conditions.
The system is mounted in a hole of the appriate diameter in the upper part of the wall
adjoining the outside, at a distance of no less than 100-150 mm from the ceiling or walls. The
through hole should be a slope of 3-5 degrees towards the outside. The operating module of
the ventilation unit is mounted in the hole using a seal (Fig. 4).
The length of the working module should correspond to the thickness of the wall in which
the installation will be carried out. In order to ensure the normal operation of the system, it
is necessary that its body facing the the outside extends beyond the wall by 1-2 cm to the
beginning of the air intake (Fig. 4).
INSTALATION

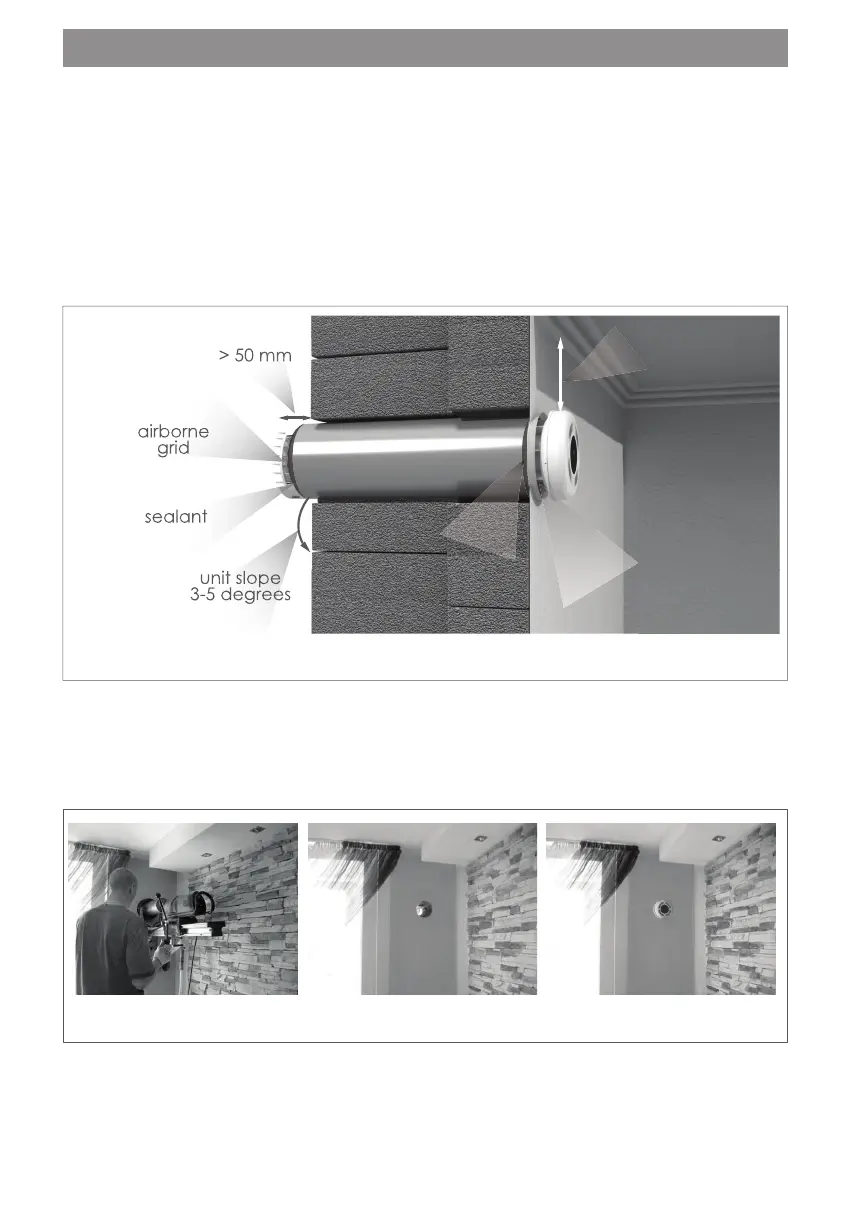

Fig. 4. The diagram of installing the recuperator in the wall.
unit slope
3-5 degrees
unit slope
unit slope
3-5 degrees
unit slope
100-150 mm
from the ceiling
sealant
air intake
Fig. 5. An example of mounting of the recuperator “PRANA-150”, “PRANA-200G”, “PRANA-200C”.
Other preparatory works:
- preparation of the hole for installing the switch and preparation of the grooves for the
installation of the electrical supply network between the system, the switch and the place of
connection of the system to the power supply source.
