prana 200C User Manual

7
IMPORTANT:
READ THESE INSTRUCTIONS BEFORE COMMENCING THE INSTALLATION
DO NOT install this duct in areas where the following may be present or occur:
- Excessive oil or a grease laden atmosphere.
- Corrosive or fl ammable gases, liquids or vapors.
- Ambient temperatures higher than 40°C or less than –5°C.
- Possible obstructions which would hinder the access or removal of the recuperator.
SAFETY AND GUIDANCE NOTES
A. All wiring to be in accordance with the current I.E.E. Regulations, or the appriate
standards of your country and MUST be installed by a suitably qualifi ed person.
B. The recuperator should be vided with a local isolator switch capable of disconnecting
all poles, having a contact separation of at least 3mm.
C. Ensure that the mains supply (Voltage, Frequency, and Phase) complies with the rating
label.
D. The recuperator should only be used in conjunction with fi xed wiring.
E. The recuperator should not be used where it is liable to be subject to direct water spray
for longed periods of time.
F. Stationary appliances not fi tted with means for disconnection from the supply mains
having a contact separation in all poles that vide full disconnection under over voltage
category III, the instructions state that means for disconnection must be incorporated in the
fi xed wiring in accordance with the wiring rules.
Connecting the recuperator, controlling the system from the remote control.
The recuperator MUST be isolated from the power supply during the installation/or
maintenance

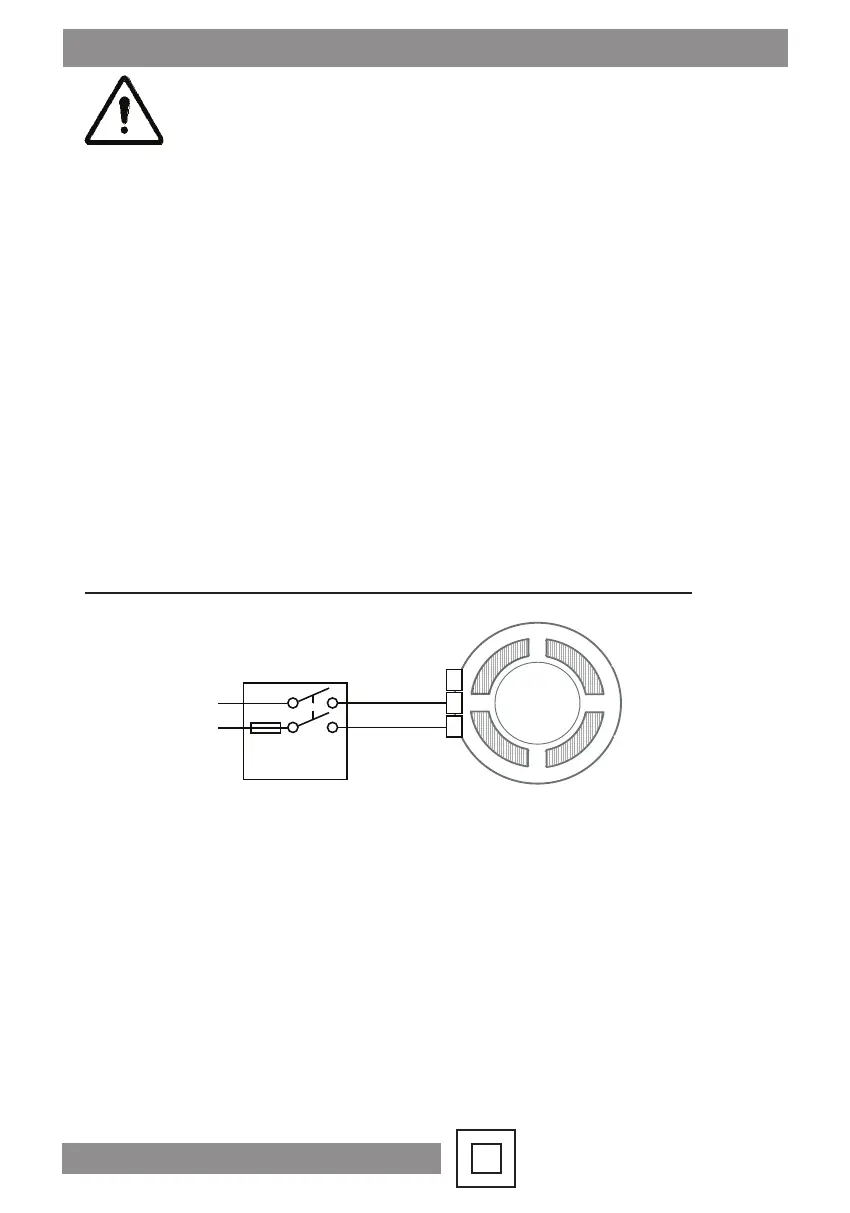

Fig. 6
220-240V
~50Hz
CONNECTING TO THE ELECTRICAL SUPPLY NETWORK
3Amp max
N
L
WARNING! Ensure that the electric power supply is really switched off using appriate test
equipment!
- To connect ventilation unit, follow wiring diagram Figure 6
- The ventilation unit should only be used in conjunction with fi xed wiring
- All electrical cables used in the installation should have the cross-section of 0.5-0.75
mm². The operation of the system is controlled using a remote control or mobile application
that controls the operation of the fans installed in the body of the ventilation system (it turns
on, regulates and turns off).
- Cable entry can only be made from the rear of the unit. Shorten the electric cable,
if necessary, to a length that is convenient for electrical connection.
- The ventilation unit is suitable for connection to 220-240V 50 Hz supply
- The ventilation unit is class II double insulated duct and must not be earthed
The PRANA 150 / 200G / 200C recuperators are adapted to connected voltage in an
automatic mode, without the use of software. This significantly reduces the noise indicators of
the equipment and allows ensure the noise characteristics of the ventilation system declared
in the technical passport.
Class II or double insulated electrical appliance
