EASYKA – EASYBKA
________________________________________________________________________________________________________________________________________________________________________________________________
12

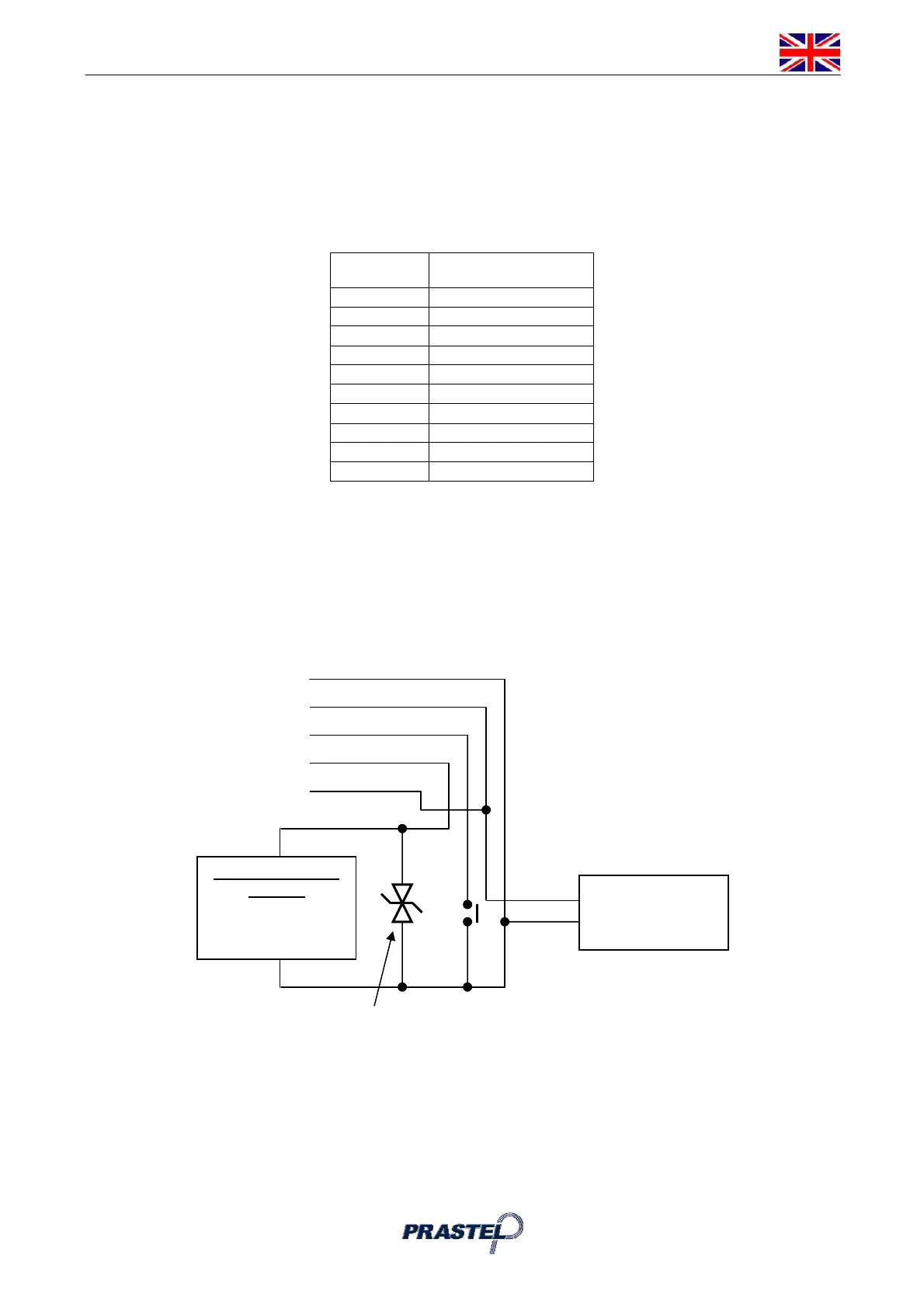

3.1 Wiring the EASYKA
The controller is supplied with a 1 m pigtail, having a 10 conductor cable. To wire the EASYKA, perform
the following steps.
1. Prepare the controller cable to the required length.
2. Splice the controller pigtail wires to the corresponding devices and cover each connection. Refer to
the wire colour guide provided below and to the wiring diagrams provided on the following pages.
COLOUR DESCRIPTION
RED V INPUT
BLACK GROUND
GREEN
REX / BL
WHITE I N / MONITOR
PURPLE LOCK: COM
GRAY N.O.
BROWN
N.C.
BLUE AUX: COM
YELLOW N.O.
ORANGE N.C.
3. Trim and cover all conductors that are not used.
Two typical wiring diagrams are shown hereunder.
3.2 Wiring the Lock Strike Relay and REX
BLACK
RED
GREEN
GRAY
VIOLET
(
-
)
(+)
(
-
)
(
-
)
(+)
COMMON
POWER SUPPLY
12V-24V AC/DC
ELECTRIC LOCK
STRIKE
FAIL SAFE
or
FAIL SECURE
Optional Varistor
