EASYKA – EASYBKA
________________________________________________________________________________________________________________________________________________________________________________________________
11
1. INTRODUCTION
The EASYKA is a vandal resistant keypad access control unit suitable for external applications. The unit
accepts up to 500 users and provides entry via the use of PIN codes.
Model EASYBKA is provided with LED backlight.
2. MAIN TECHNICAL FEATURES
Operating Voltage Range: 12-24 VAC/DC
Maximum Input Current:
without heating: 20 mA in standby –- 115 mA max
with backlight
(EASYBKA only): 50mA in standby – 145mA max
with heating, 12Vcc: 520mA in standby – 615 mA max
with heating, 24Vcc: 350mA in standby – 465 mA max
Lock Strike Relay: Form C, 2A
Auxiliary Relay: Form C, 2A
Inputs:
REX N.O., Dry Contact
Auxiliary Input (In / Monitor) N.C., Dry Contact in Monitor Mode
N.O., Dry Contact in Input Mode
Operating Temperature:
Keypad Heater Enabled: from –20 °C to 63 °C
Keypad Heater Disabled: from 0 °C to 63 °C
IP protection degree: IP 65
Dimensions: 120mm x 76mm x 21 mm
Weight: 410 g
3. MOUNTING

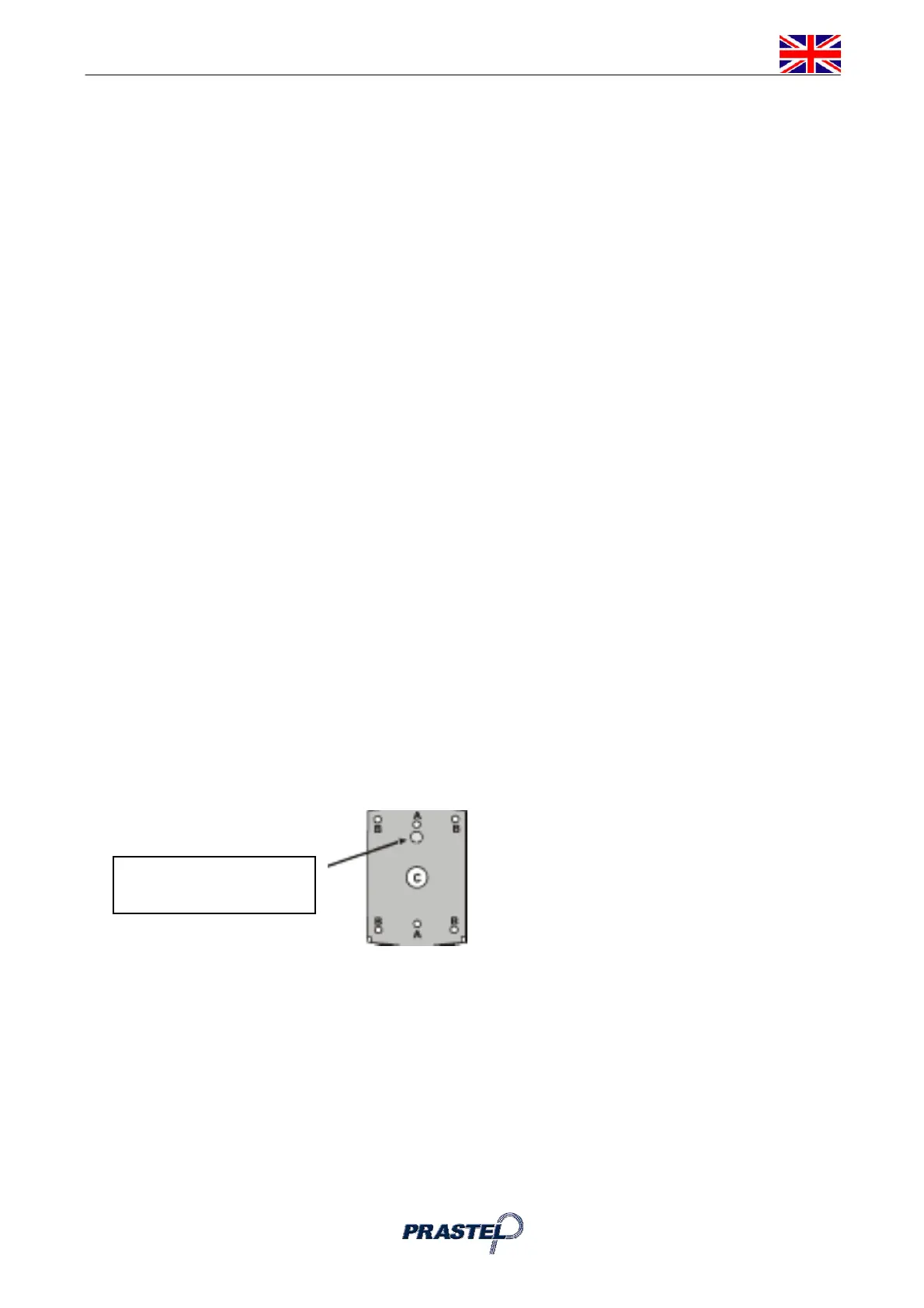

Before starting, select the location to mount the EASYKA controller. This location should be at shoulder
height and on the same side as the door handle. For fixing, drill two holes, in correspondence of the two
points marked as A.
Drill in correspondence of sign C for the passage of cables.
1. Wire the controller according to the wiring instructions on the following page.
2. Screw the EASYKA back cover to its mounting location.
3. Return the front cover of the EASYKA to the mounted back plate.
4. Secure the front cover by using the supplied security screw in the Installation Kit. An L-Shaped tool is
provided for use when tightening the security screw.
DO NOT DRILL
This is the Tamper Lens
