ENGLISH
26

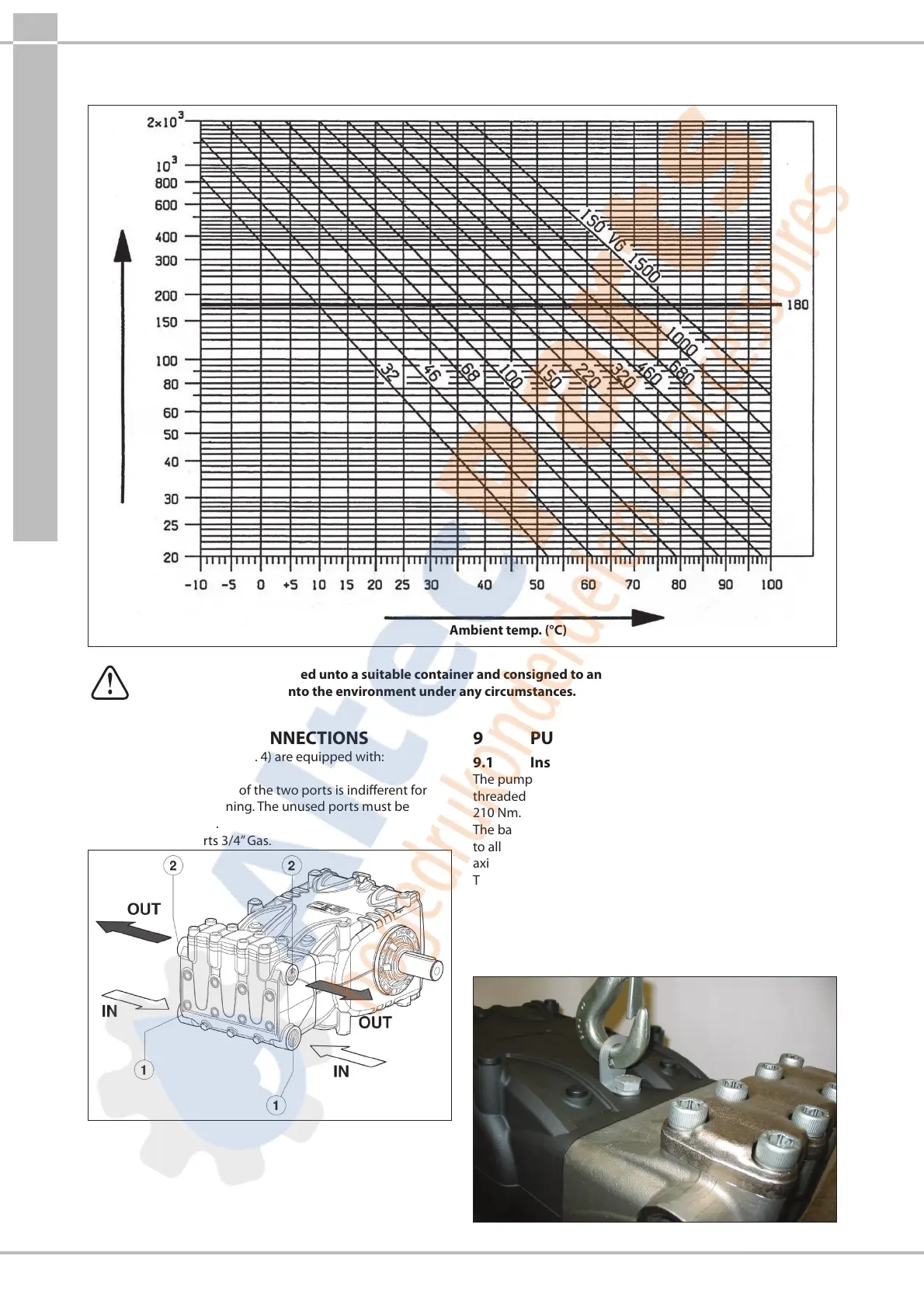

Viscosity / Room Temperature diagram
mm
2
/s = cSt
Viscosity ν
Ambient temp. (°C)
The used oil must be poured unto a suitable container and consigned to an authorised recycling centre.
Do not release used oil into the environment under any circumstances.
8 PORTS AND CONNECTIONS
The HF series pumps (see Fig.4) are equipped with:
c 2 “IN” inlet ports 1” Gas.
Line connection to any of the two ports is indierent for
proper pump functioning. The unused ports must be
hermetically closed.
d 2 “OUT” outlet ports 3/4” Gas.
Fig.4
9 PUMP INSTALLATION
9.1 Installation
The pump must be xed horizontally using the M16x1.5
threaded support feet. Tighten the screws with a torque of
210Nm.
The base must be perfectly at and rigid enough as not
to allow bending or misalignment on the pump coupling
axis/transmission due to torque transmitted during operation.
The unit cannot be xed rigidly to the oor but must
interposed with vibration dampers.
For special applications contact the Technical or Customer
Service Departments.
A lifting bracket is mounted on the pump for easy installation,
as per the gure below.
