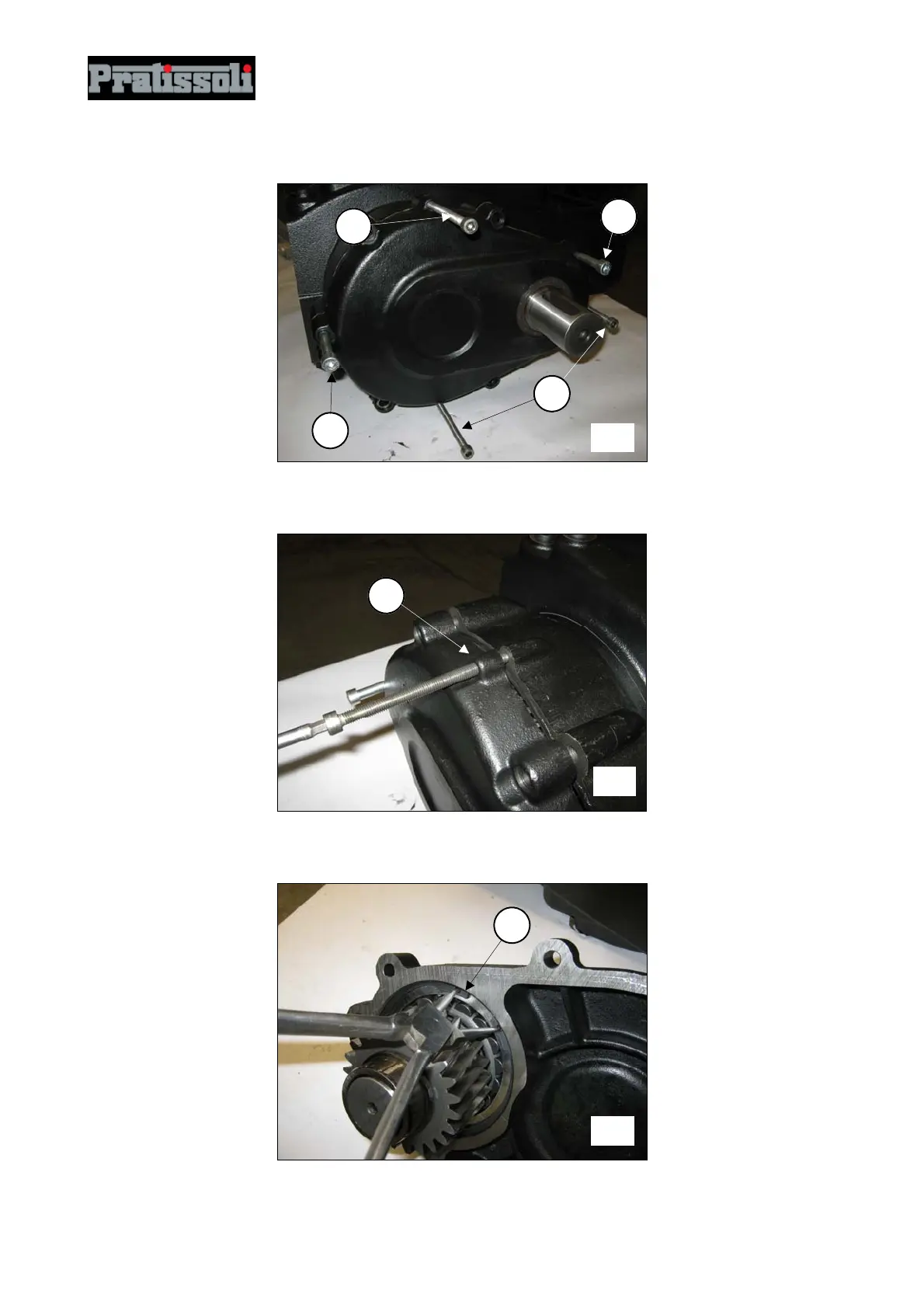

Position the 3 grub screws or M8 threaded screws (pos.c, fig.5) with the function of extractors in the holes
and two sufficiently long M10 screws with the function of supporting the cover (pos.d, fig.5).
Slowly screw in the 3 M8 screws (pos.c, fig.6) with the function of extractors to fully remove the cover unit
and pinion
Complete disassembly of the reduction gear cover from the pinion is possible following these steps:
Remove the Seeger ring Ø120 (pos.c, fig.7)
fig. 5
1
2
fig. 6
1
fig. 7
1
2
1
