Trident & Trident X2 Displays
FEATURE RICH & SIMPLE TO USE
The PD765 Trident digital panel meter is one of the most versatile
digital panel meters on the market and will satisfy a wide variety
of process applications. The Trident can be field programmed to
accept process voltage (0-5V, 1-5V, etc) and current (4-20 mA)
inputs, 100 Ohm RTDs, and the four most common thermocouples.
It is housed in a shallow-depth, 1/8 DIN enclosure that features a
NEMA 4X front panel and convenient mounting hardware. There
are two power options for the Trident: 85 to 265 VAC or 12-36
VDC and it can provide 24 VDC to power the transmitter if needed.
Programming and setup can be performed with the four front panel
pushbuttons, free MeterView software, or using the Copy function.
TWO DISPLAY SIZES
The display height on the standard Trident meter is 0.56" (14.2
mm) and on the Trident X2 the display height is an astounding 1.2"
(30.5 mm). The Trident X2 can be read easily from distances of up
to 30 feet! Both meters are available with all Trident features.
The intensity of the display on both versions of the Trident can be
adjusted to compensate for various lighting conditions, including
direct sunlight.

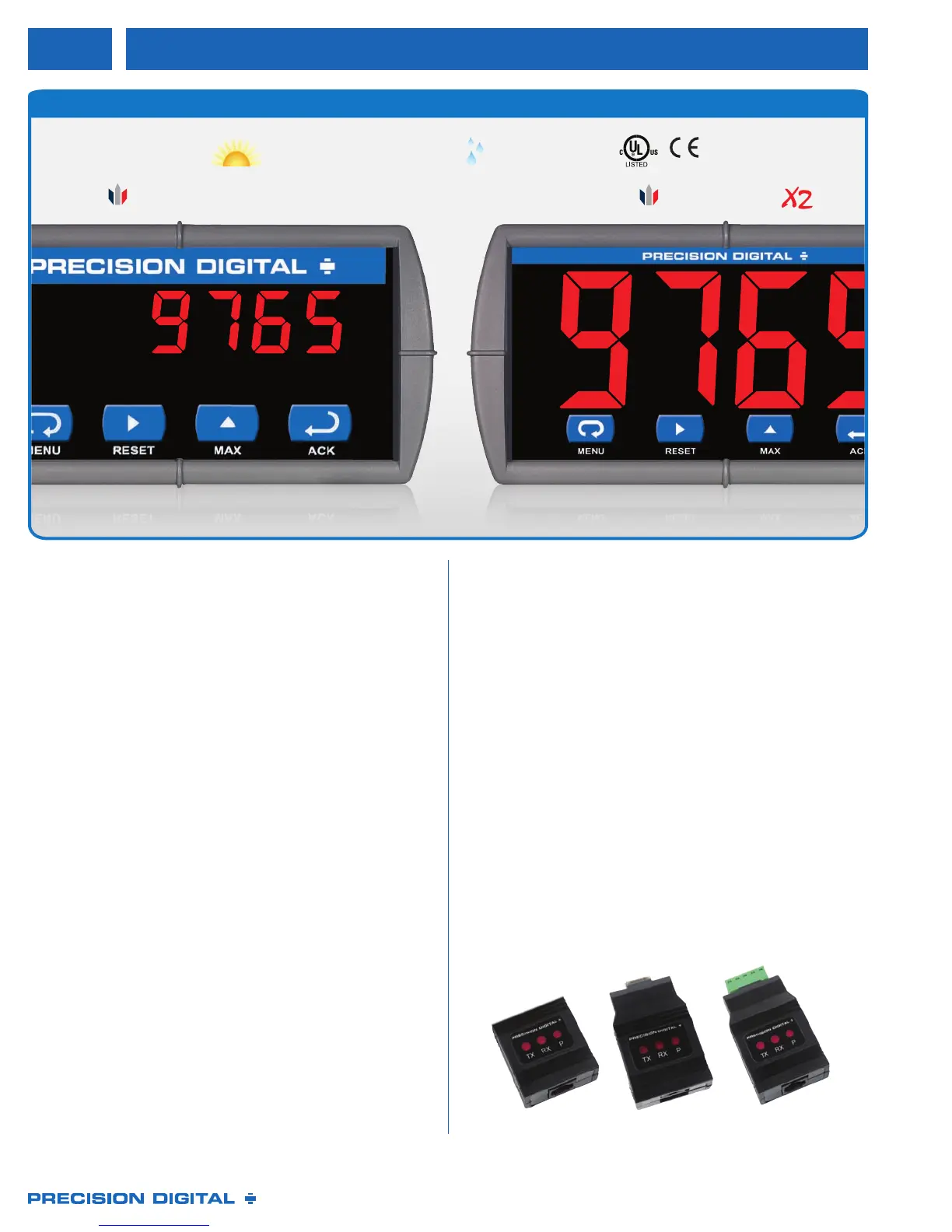

TRIDENT
(Actual Size Digits)
0.56" (14.2 mm) Display 1.2" (30.5 mm) Display
VERSATILE OPERATION
Look to the Trident meter for the key features and options you
want and don’t worry about getting bogged down in a confusing
array of things you don’t need. The Trident’s Max/Min function, 2
relays + 4-20 mA output, serial communication, and Modbus RTU
options provide all the utility you need to handle all the common
applications.
Maximum/Minimum
To display the maximum and minimum readings since the last reset/
power-up, use the Up arrow/Max button
Serial Communication Adapters & Converters
A wide variety of serial communication adapters and converters
are available for the Trident meter. A serial adapter and
Precision Digital’s free MeterView software allows the Trident
to be programmed from a computer and to connect to a PC
for data acquisition. Adapters are available for USB, RS-232,
and RS-485 communications. Converters are available for
isolated and non-isolated RS-232 to RS-422/485 and USB to
RS-422/485.
PDA8006 PDA7232 PDA7422
Powerful Relay Functionality
All relay functions are set up from the front panel or from a PC run-
ning MeterView
®
or LabView™ software.
• Automatic reset only
• Automatic or manual reset
• Latching or non-latching relays
• Pump alternation control
• On and off time delays from 0 to 199 seconds
• Fail-safe operation is user selectable
Isolated 4-20 mA Transmitter Output
The Trident’s Isolated 4-20 mA output option converts the Trident
into a transmitter with a digital display; perfect for temperature
applications!
UV Resistant
Sunlight Readable Models
Front Panel
NEMA 4X Rated
