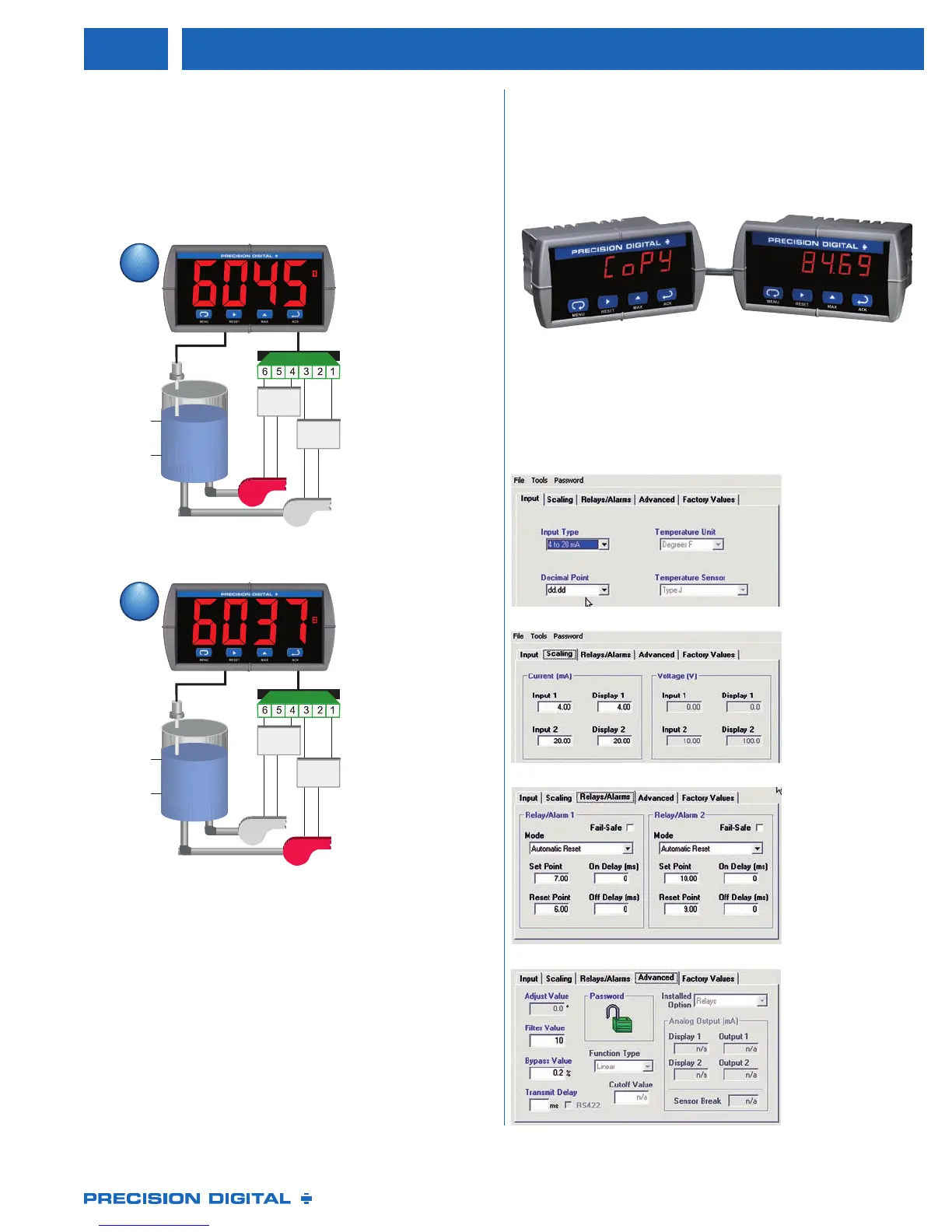

PRECISION DIGITAL Trident PD765 - Modbus RTU Communication; Meter Copy Functionality; PC Programming with MeterView; Configure Input Settings

EASY SETUP AND PROGRAMMING
The Trident is easily setup and programmed using the simple four-
button programming method. The meter can also be programmed
using a PC and Precision Digital’s free MeterView software or
“cloned” with the Copy function. There is only one switch on the
entire meter, no jumpers, and no need to ever open the case.
Programming with Four Front Panel Buttons
The Trident’s four front panel buttons keep the user in
control of the programming process. To see how simple
it is to program the Trident, check out the Virtual Meter at
www.predig.com.
1
Control
Relay
Control
Relay
Main
Pump
ON
6000
OFF
1000
Backup
Pump
ON
OFF
Level
Transmitter
Relay #1 turns
the main pump
on at 6000
gallons and
turns it off at
1000 gallons.
With the Pump
Alternation
feature
activated, the
next time the
level reaches
6000 gallons,
relay #2
transfers and
starts the
backup pump.
Control
Relay
Control
Relay
Main
Pump
ON
6000
OFF
1000
Backup
Pump
OFF
ON
Level
Transmitter
2
Programming From a PC with MeterView
®
Precision Digital’s free MeterView
®
software allows all PD765
Trident setup parameters to be programmed from a PC and to save
the configuration settings to a file for reporting or programming
other meters. And since the serial adapter is an external device,
one serial adapter can program an infinite number of meters!
•Inputtype
•Decimalpoint
•Tempunits
•Sensortype
•Scaleinput
•Nocrypticcodes
•Simpletouse
•Selectmode
•Set/resetpoints
•Fail-safeoperation
•On&offdelays
•Password
•Filter&bypass
•Transmitdelay
•Functiontype
•Cutoffvalue
Configure Input
Meter Scaling
Set Relays/Alarms
Advanced Settings
Modbus RTU
Use the Trident’s Modbus RTU communications to connect the
Trident to a PLC, SCADA system or other digital device. It is a
standard feature on all Trident models.
Pump Alternation
The Trident, in pump alternation mode, will automatically alternate
two pumps:
Meter Copy
The Copy function is used to copy (or clone) all the settings from
one Trident meter to other Trident meters in less than 10 seconds.
The Copy function is a standard feature on all meters. The Copy
feature does not require a serial communication adapter, it only re-
quires the optional cable assembly (PDA7420), see the ordering
information for
www.predig.com
3
PD765 Trident Series Process & Temperature Meters
