Precision matthews PM-1022V

34
PM-1030V v5 2020-10 Copyright © 2020 Quality Machine Tools, LLC

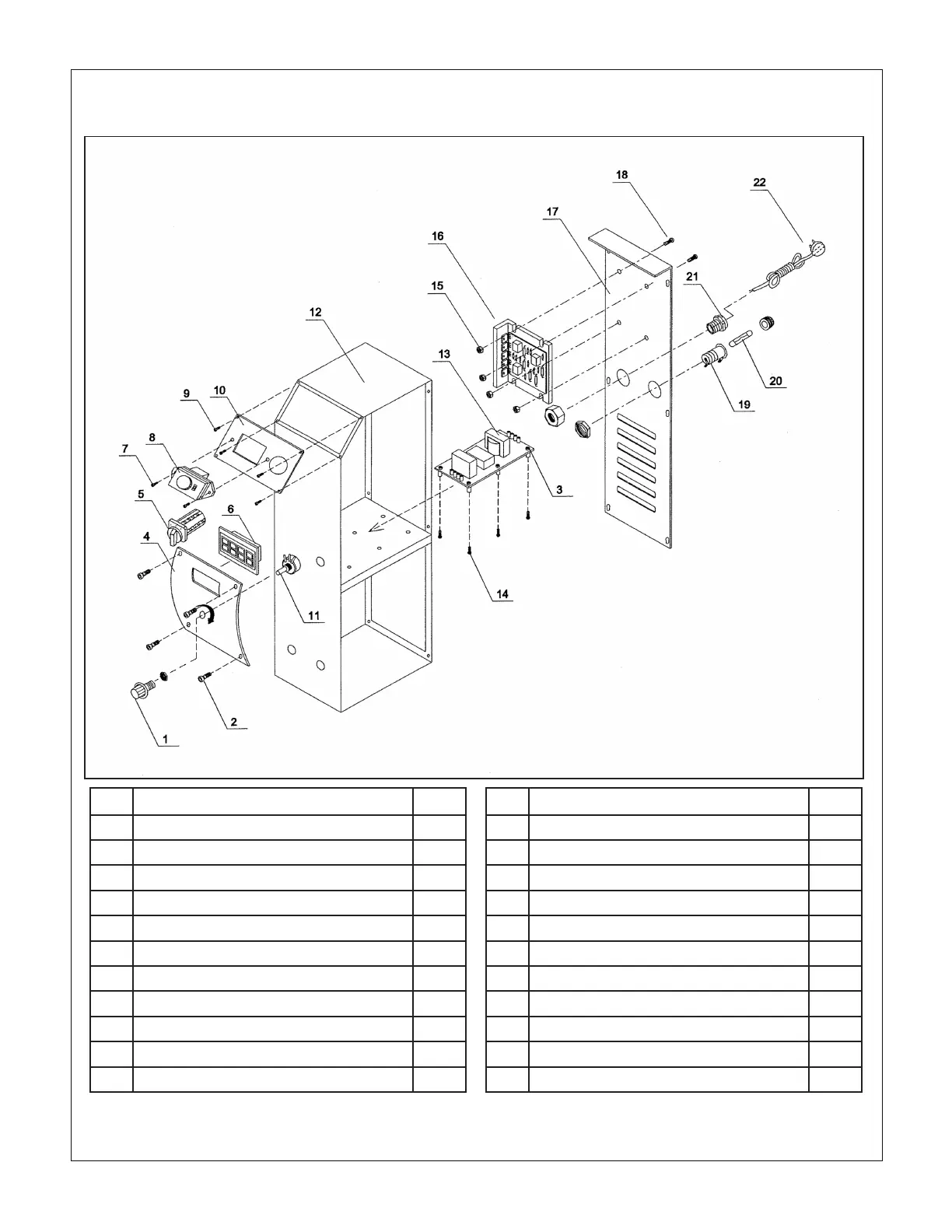

ELECTRICAL BOX Fig 7
There may be detail dierences
between this representative drawing
and the machine as supplied
Dimensions in millimeters
Ref Description Part
1 Speed control knob Z1338
2 Screw M3 x 6 Z1339
3 Nut M4 Z1340
4 Front panel Z1341
5 Forward-reverse switch Z1342
6 Speed display Z1343
7 Screw M4 x 14 Z1344
8 E-Stop switch Z1345
9 Screw M3 x 6 Z1346
10 Upper panel Z1347
11 Potentiometer Z1348
Ref Description Part
12 Electrical box Z1349
13 Filter unit Z1350
14 Screw M4 x 14 Z1351
15 Nut M4 Z1352
16 Motor control unit Z1043
17 Rear cover Z1354
18 Screw M4 x 12 Z1355
19 Fuse holder Z1356
20 Fuse 15A Z1357
21 Strain relief M16 Z1358
22 Power cord Z1359
