24
PM 25MV v9 2021-12 Copyright © 2021 Quality Machine Tools, LLC

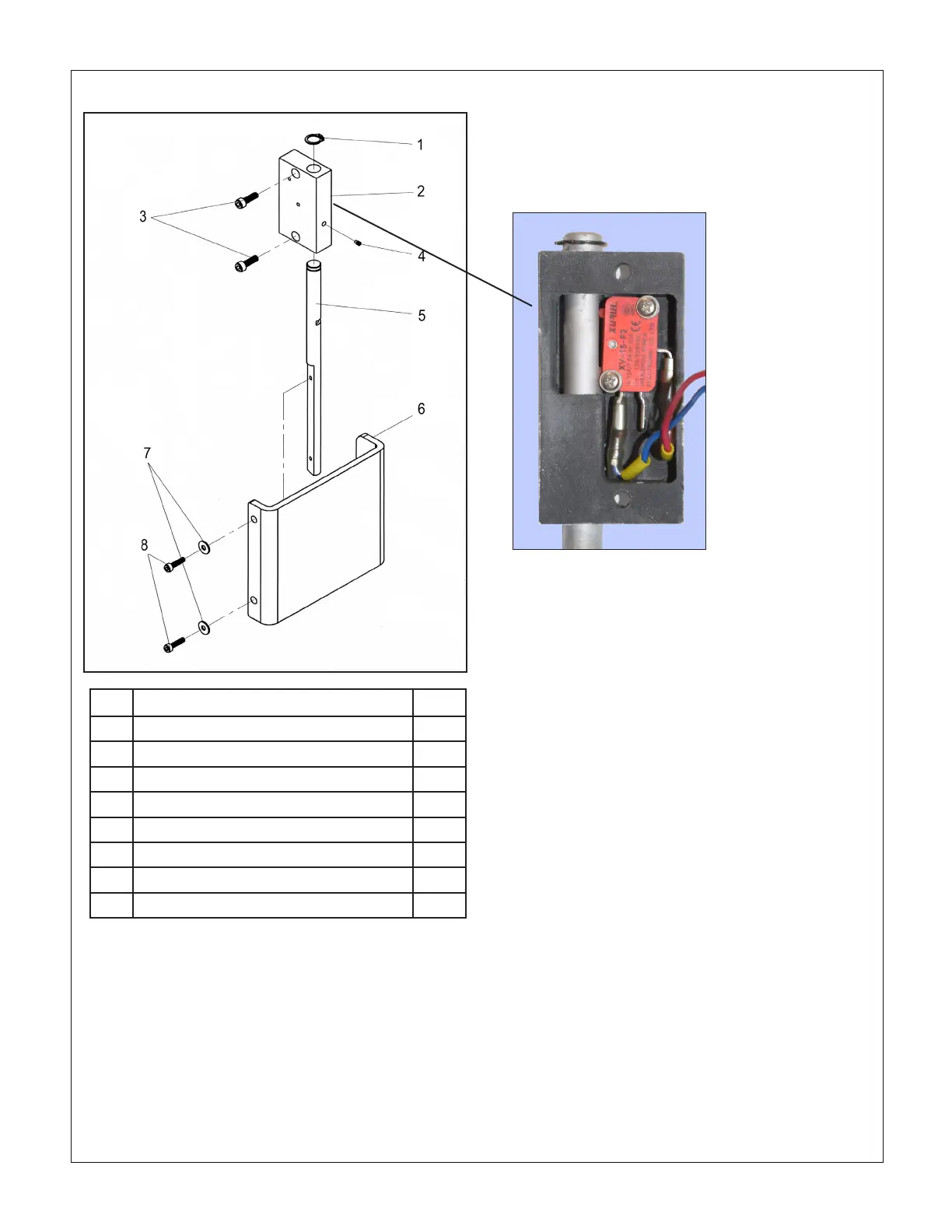

CHIP GUARD Fig 4
Ref Description Part
1 Circlip Z5364
2 Switch box Z5365
3 Screw: M5 x 16 skt hd Z5366
4 Screw: M4 x 8, set, spc'l Z5367
5 D-shape shaft Z5368
6 Shield Z5369
7 Washer: at, M4 Z5370
8 Screw: M4 x 14 skt hd Z5371
Dimensions in millimeters
There may be detail
dierences between this
representative drawing and
the machine as supplied
