Precision matthews PM-30MV - Chip Guard Parts

20
PM-30MV v3 2020-10 Copyright © 2020 Quality Machine Tools, LLC

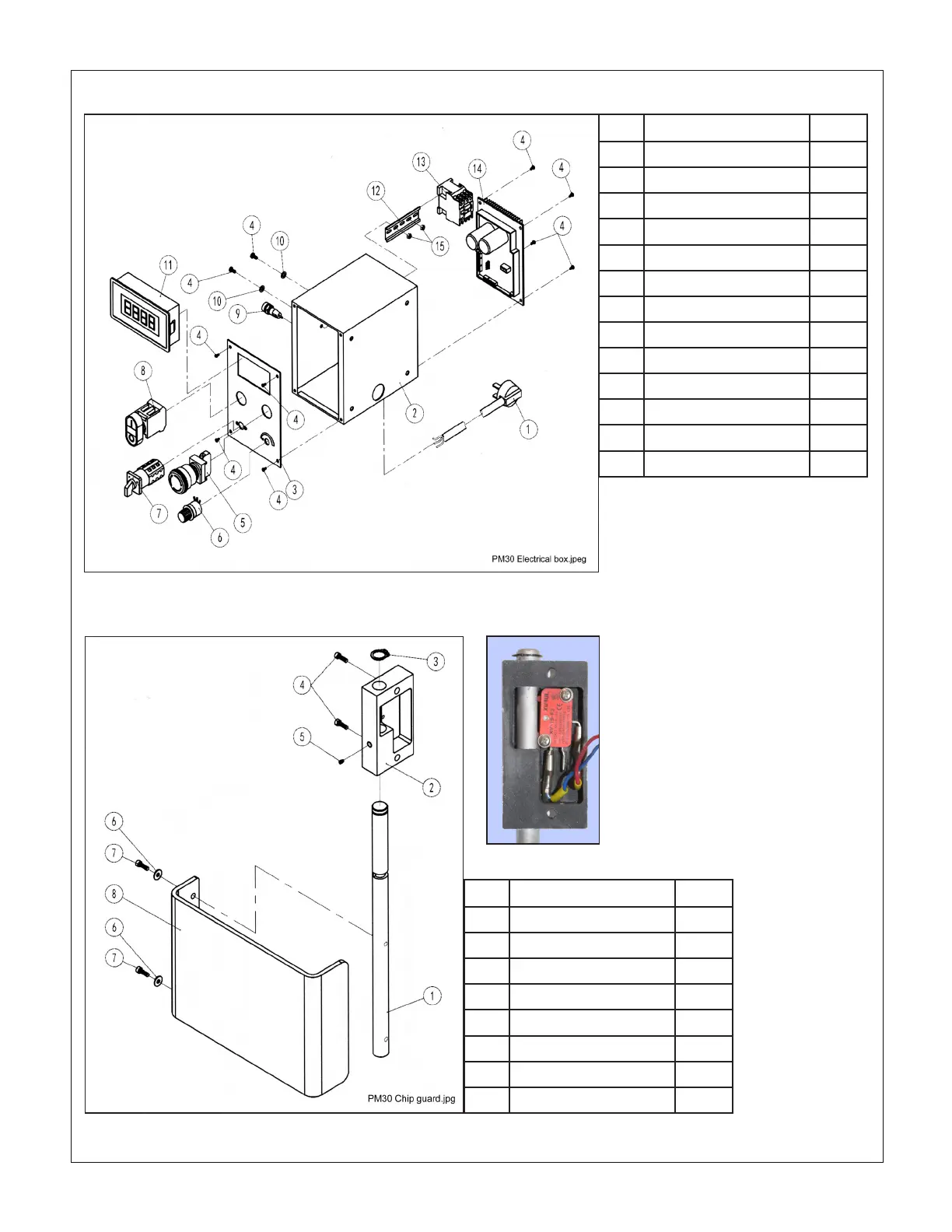

PM-30MV ELECTRICAL BOX Fig 2
Dimensions in millimeters
PM-30MV CHIP GUARD Fig 3
Dimensions in millimeters
Ref Description Part
2 Box Z5372
3 Front panel Z5373
4 Screw M4×8 Z5374
6 Potentiometer Z5375
7 Direction switch Z5376
8 Power ON/OFF Z5377
9 Fuse (5 A) Z5378
10 Washer 4 Z5379
11 Tach display Z5380
12 Contactor rail Z5381
13 Contactor Z7305
14 Control board Z7306
15 Nut M4 Z7307
Ref Description Part
1 Rod Z5382
2 Switch box Z5383
3 Circlip 12 Z5384
4 Screw M5×16 Z5385
5 Screw M5×8 Z5386
6 Washer 4 Z5387
7 Screw M4×14 Z5388
8 Guard Z5389
