PM-30MV v3 2020-10 Copyright © 2020 Quality Machine Tools, LLC

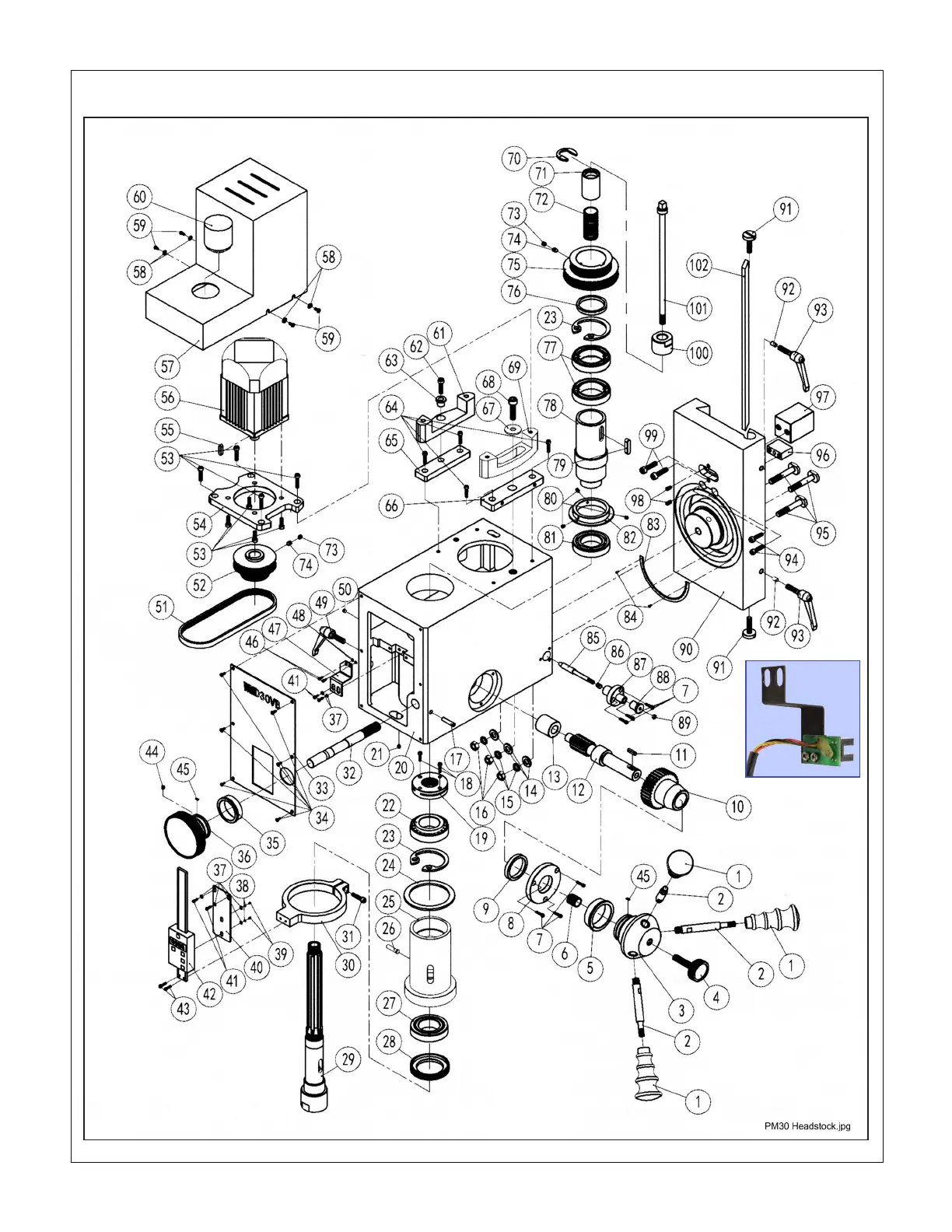

PM-30MV HEADSTOCK Fig 4
Speed sensor
and bracket 41.
Optically detects
holes in index
ring 82.
