Precision matthews PM-30MV - Table and Base Assembly Parts

23
PM-30MV v3 2020-10 Copyright © 2020 Quality Machine Tools, LLC

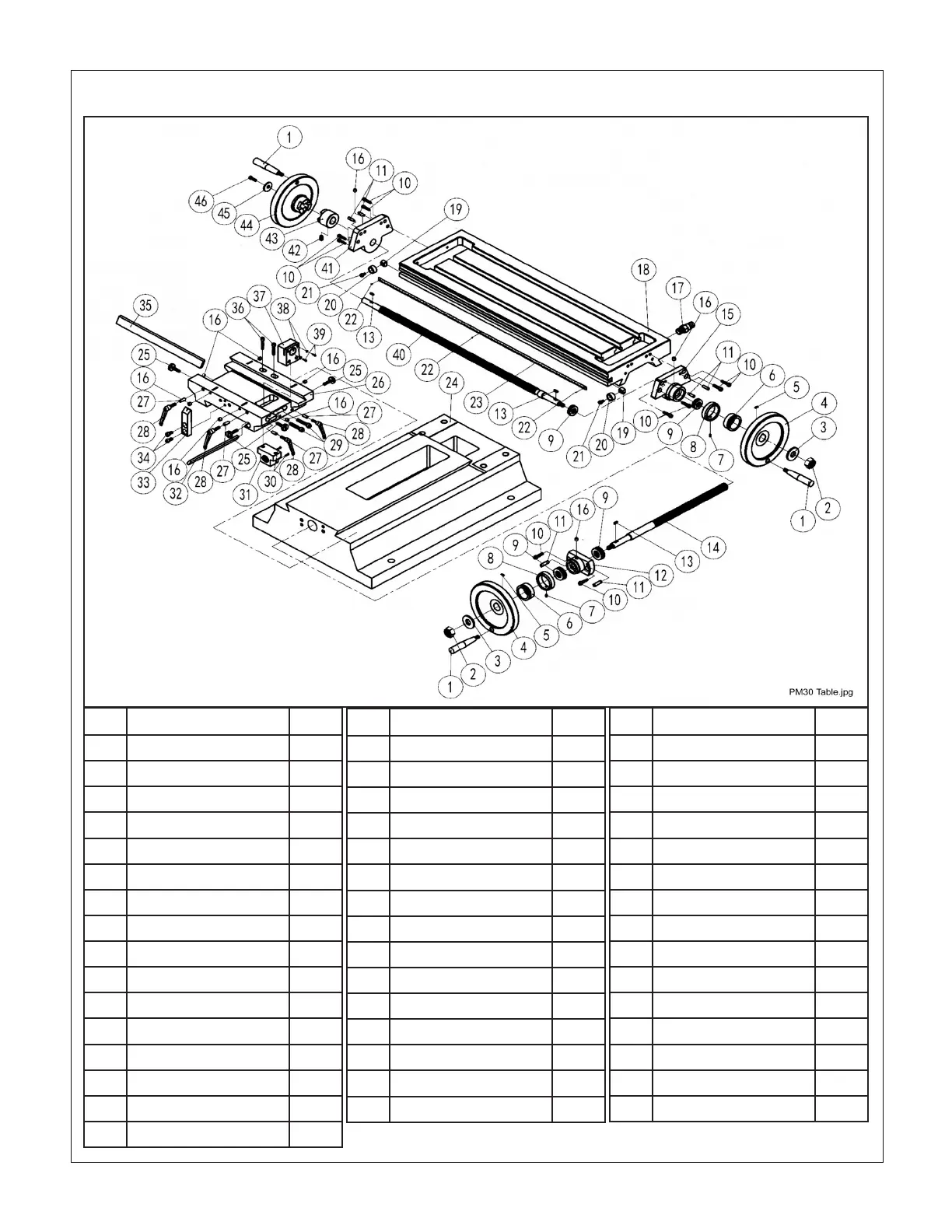

PM-30MV TABLE & BASE Fig 5
Dimensions in millimeters
Ref Description Part
1 Handle M10×80 Z5492
2 Lock Nut M10 Z5493
3 Washer 10 Z5494
4 Handwheel Z5495
5 Leaf spring Z5496
6 Dial Z5497
7 Lock screw M5×6 Z5498
8 Bushing Z5499
9 Bearing 51103 Z5500
10 Screw M8×25 Z5501
11 Taper pin 6×25 Z5502
12 Leadscrew bracket C Z5503
13 Key 5×16 Z5504
14 Y-axis leadscrew Z5505
15 Leadscrew bracket A Z5506
16 Oil Cup 6 Z5507
Ref Description Part
17 Pipe connector Z5508
18 Table Z5509
19 Dovetail nut Z5510
20 Spacer Z5511
21 Screw M6×10 Z5512
22 Rivet 2×5 Z5513
23 Scale Z5514
24 Base Z5515
25 Gib screw Z5516
26 Saddle Z5517
27 Pin 6×16 Z5518
28 Lock handle M8×25 Z5519
29 Screw M8×35 Z5520
30 Screw M4×12 Z5521
31 Y-axis leadscrew nut Z5522
Ref Description Part
32 Gib Z5523
33 Position marker Z5524
34 Screw M6×12 Z5525
35 Gib Z5526
36 Screw M×50 Z5527
37 X-axis leadscrew nut Z5528
38 Washer 4 Z5529
39 Screw M4×14 Z5530
40 X-axis leadscrew Z5531
41 Leadscrew bracket B Z5532
42 Lock screw M5×10 Z5533
43 Dog clutch Z5534
44 Handwheel Z5535
45 Washer 6 Z5536
46 Screw M6×20 Z5537
