Precision matthews PM-30MV

24
PM-30MV v3 2020-10 Copyright © 2020 Quality Machine Tools, LLC
Ref Description Part
1 Air spring Z5538
2 Column Z5539
3 Washer 14×5 Z5540
4 Rivet 2 Z5541
5 Spring washer 14 Z5542
6 Screw M14×80 Z5543
7 Scale Z5544
8 Screw M5×12 Z5545
9 Bearing 6001-2Z Z5546
10 Bearing ange Z5547
11 Bushing Z5548

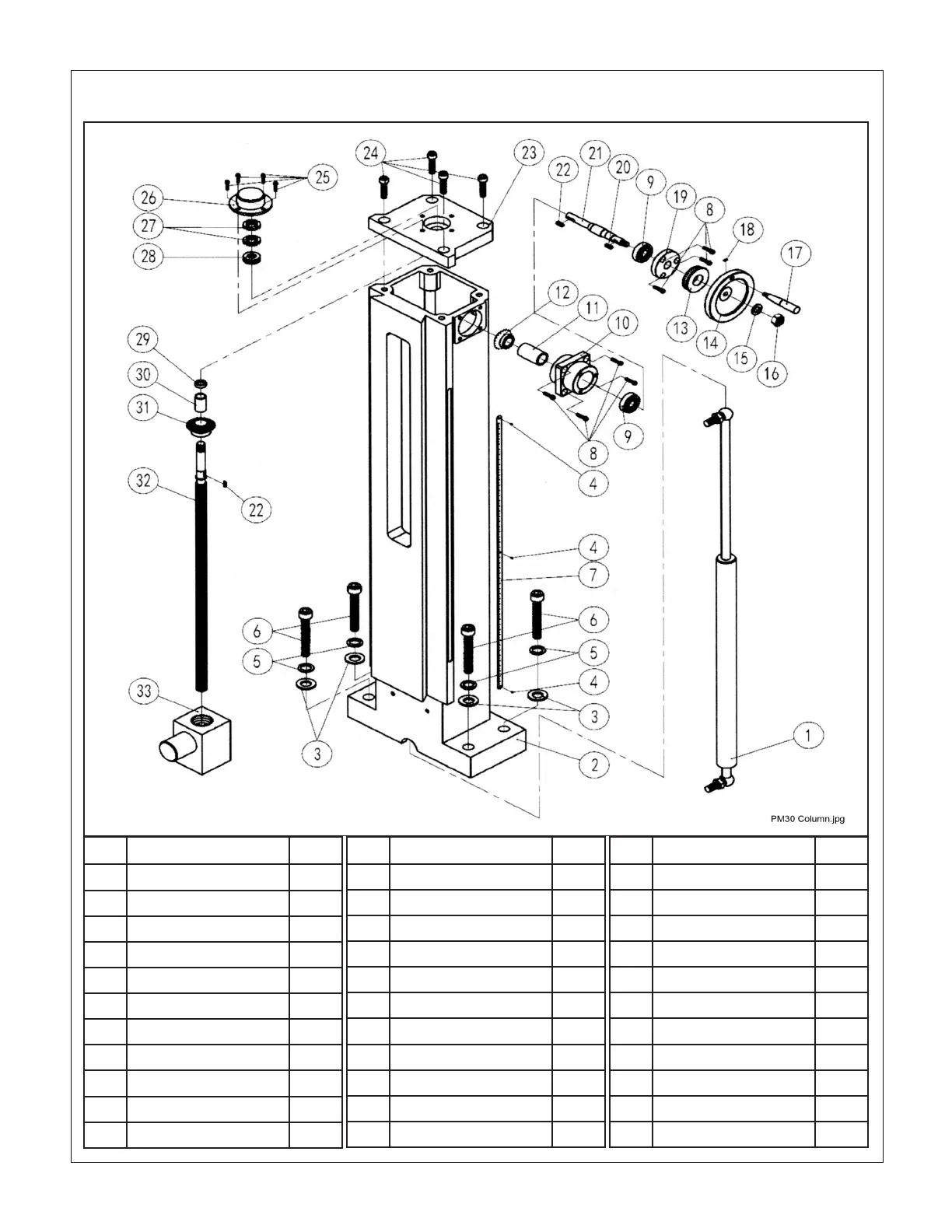

PM-30MV COLUMN Fig 6
Dimensions in millimeters
Ref Description Part
23 Cover plate Z5560
24 Screw M8×25 Z5561
25 Screw M5×8 Z5562
26 Cap Z5563
27 Nut M16×1.5 Z5564
28 Bearing 51203 Z5565
29 Copper sleeve Z5566
30 Bushing Z5567
31 Bevel gear Z5568
32 Z-axis leadscrew Z5569
33 Leadscrew nut Z5570
Ref Description Part
12 Bevel gear Z5549
13 Dial Z5550
14 Handwheel Z5551
15 Washer 8 Z5552
16 Nut M8 Z5553
17 Handle M10×80 Z5554
18 Leaf spring Z5555
19 Flange Z5556
20 Key 4×12 Z5557
21 Shaft Z5558
22 Key 4×16 Z5559
