19
PM 728V-T v2 2020-10 Copyright © 2020 Quality Machine Tools, LLC

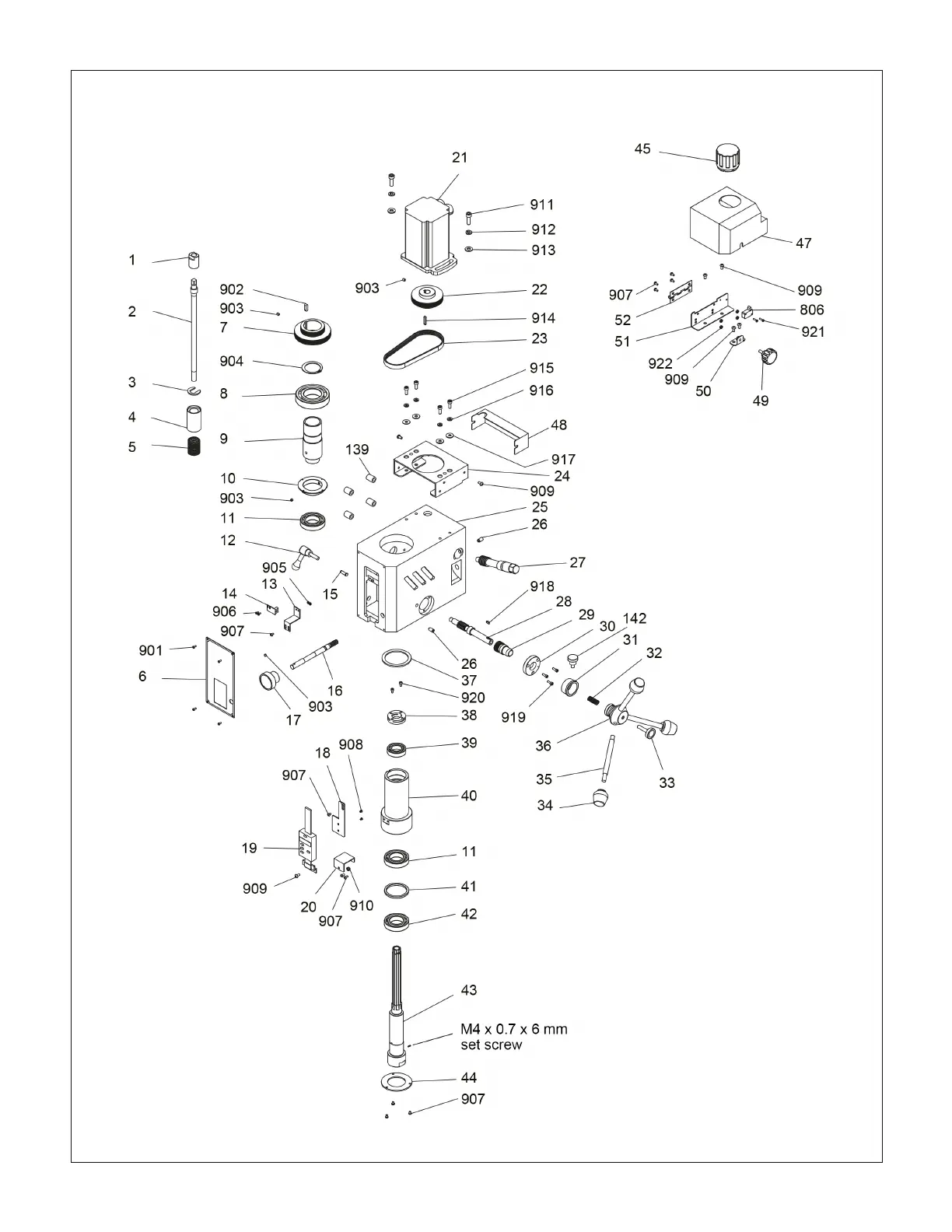

Model PM-728V-T HEADSTOCK & SPINDLE Fig 2
There may be detail dierences
between this representative drawing
and the machine as supplied
