PM 728V-T v2 2020-10 Copyright © 2020 Quality Machine Tools, LLC

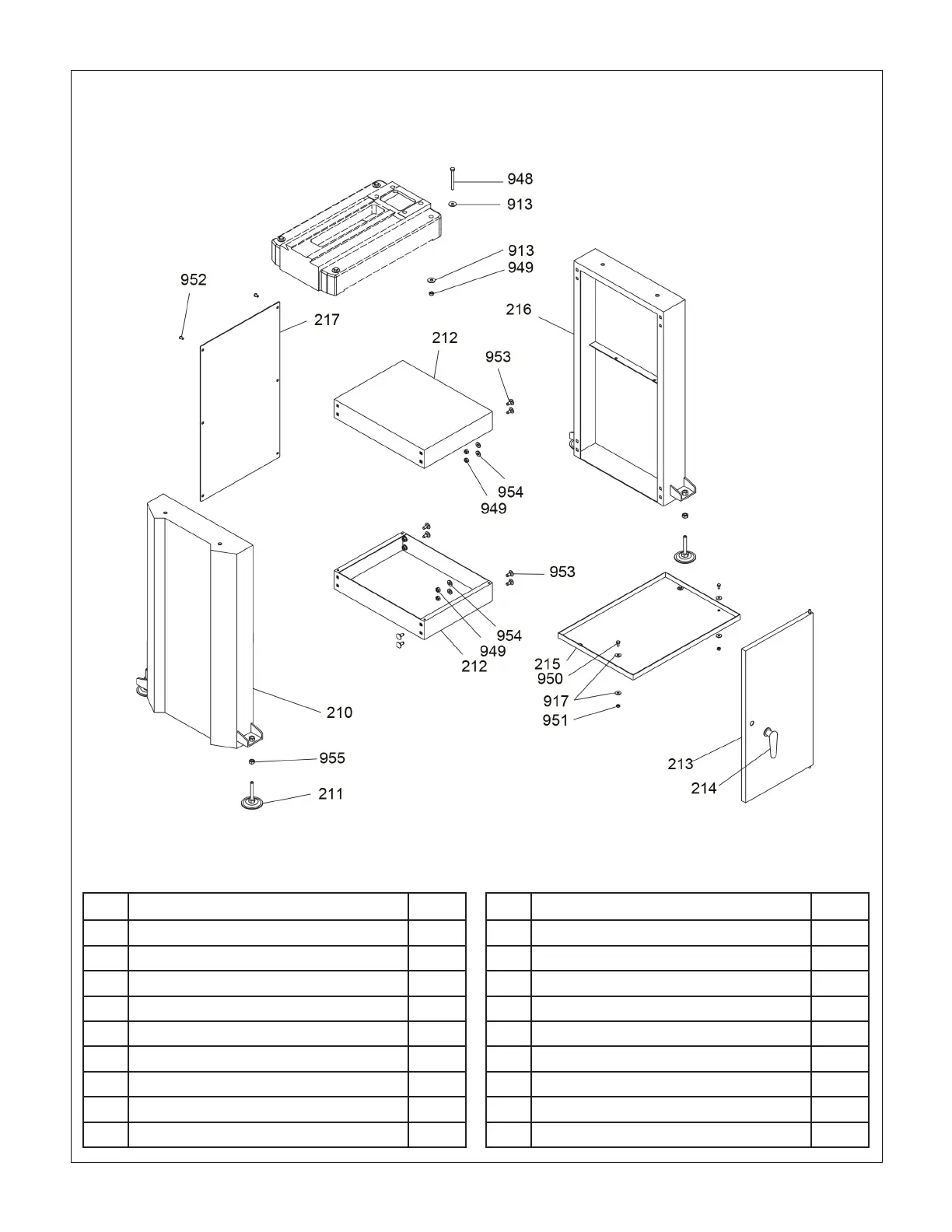

Model PM-728V-T STAND Fig 5
Ref Description Part
210 Front panel Z6122
211 Leveling screw Z6123
212 Top/bottom panel Z6124
213 Door Z6125
214 Handle Z6126
215 Chip pan Z6127
216 Rear panel Z6128
217 Side panel Z6129
913 Washer Z6130
Ref Description Part
917 Washer Z6131
948 Hex screw M8 x 100 Z6132
949 Nut M8 Z6133
950 Hex screw M8 x 20 Z6134
951 Nut M6 Z6135
952 Cap screw Z6136
953 Carriage screw M8 x 20 Z6137
954 Washer Z6138
955 Nut 1/2 x XX Z6139
There may be detail dierences
between this representative drawing
and the machine as supplied
