PM 728V-T v2 2020-10 Copyright © 2020 Quality Machine Tools, LLC

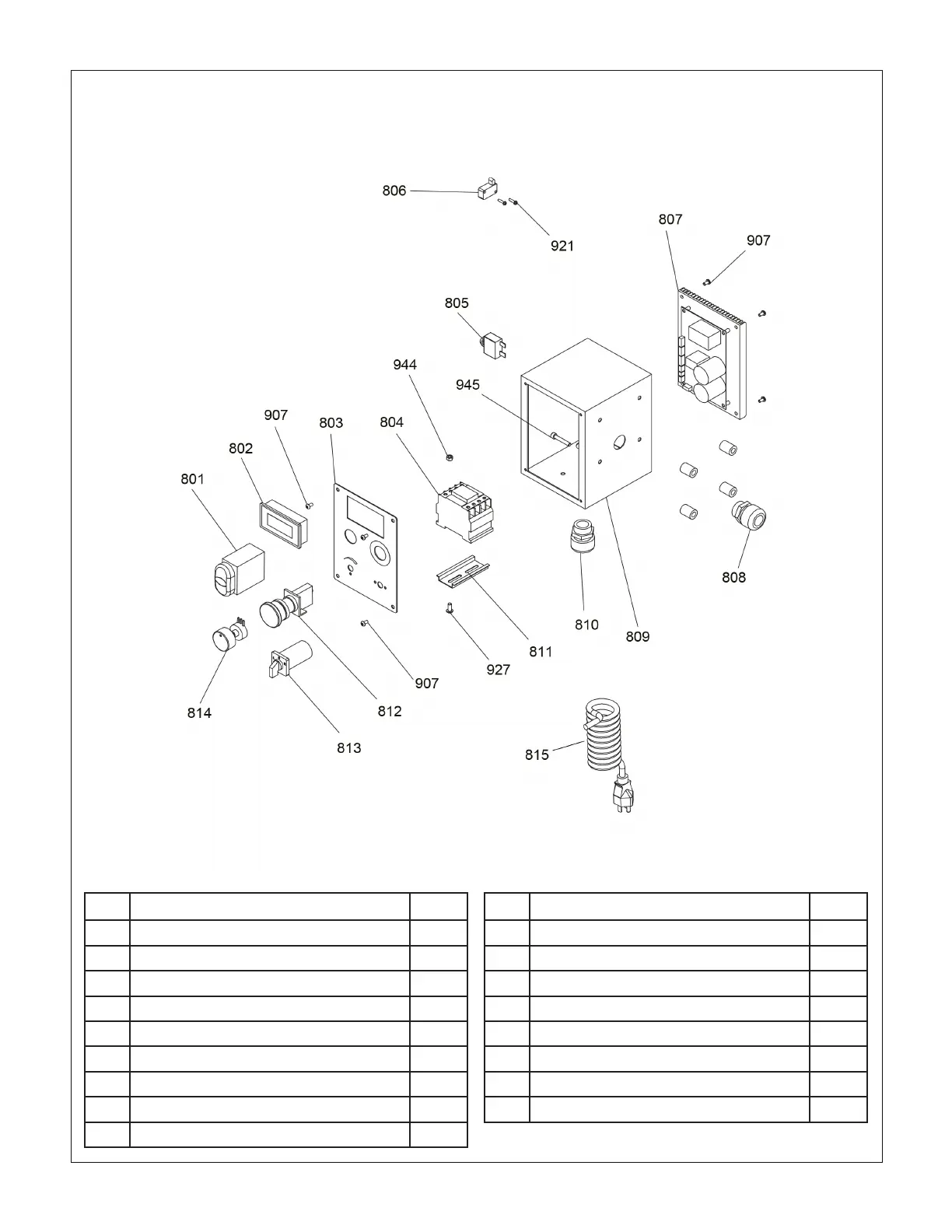

Model PM-728V-T ELECTRICAL COMPONENTS Fig 4
Ref Description Part
801 ON/OFF switch Z6105
802 Tachometer Z6106
803 Control panel Z6107
804 Contactor Z6108
805 Reset switch Z6109
806 Limit switch Z6110
807 Controller PCB Z6111
808 Cable bushing Z6112
809 Electrical box Z6113
Ref Description Part
810 Cable bushing Z6114
811 Connector mount Z6115
812 E-stop button Z6116
813 Fwd/Rev selector switch Z6117
814 Speed potentiometer Z6118
815 Power cord Z6119
907 Cap screw Z6120
927 Phl. hd. screw Z6121
There may be detail dierences
between this representative drawing
and the machine as supplied
