FUNCTIONS
MASTER SLAVE MASTER SLAVE
GAIN SUB SONIC PHASE SHIFT BASS BOOST LOW PASS DATA LINK
A1800.1D
GAIN SONIC PHASE SHIFT
BASS BOOST LOW PASS DATA LINK
A1800.1D
6.0V ~ 0.25V
20Hz ~ 50Hz
0 °
180°
0dB
~
18dB
50Hz
~
500Hz at 45H z
MASTER
SLAVE
6.0V ~ 0.25V
20Hz ~ 50Hz
0 °
180°
0dB
~
18dB
50Hz
~
500Hz
at 45Hz

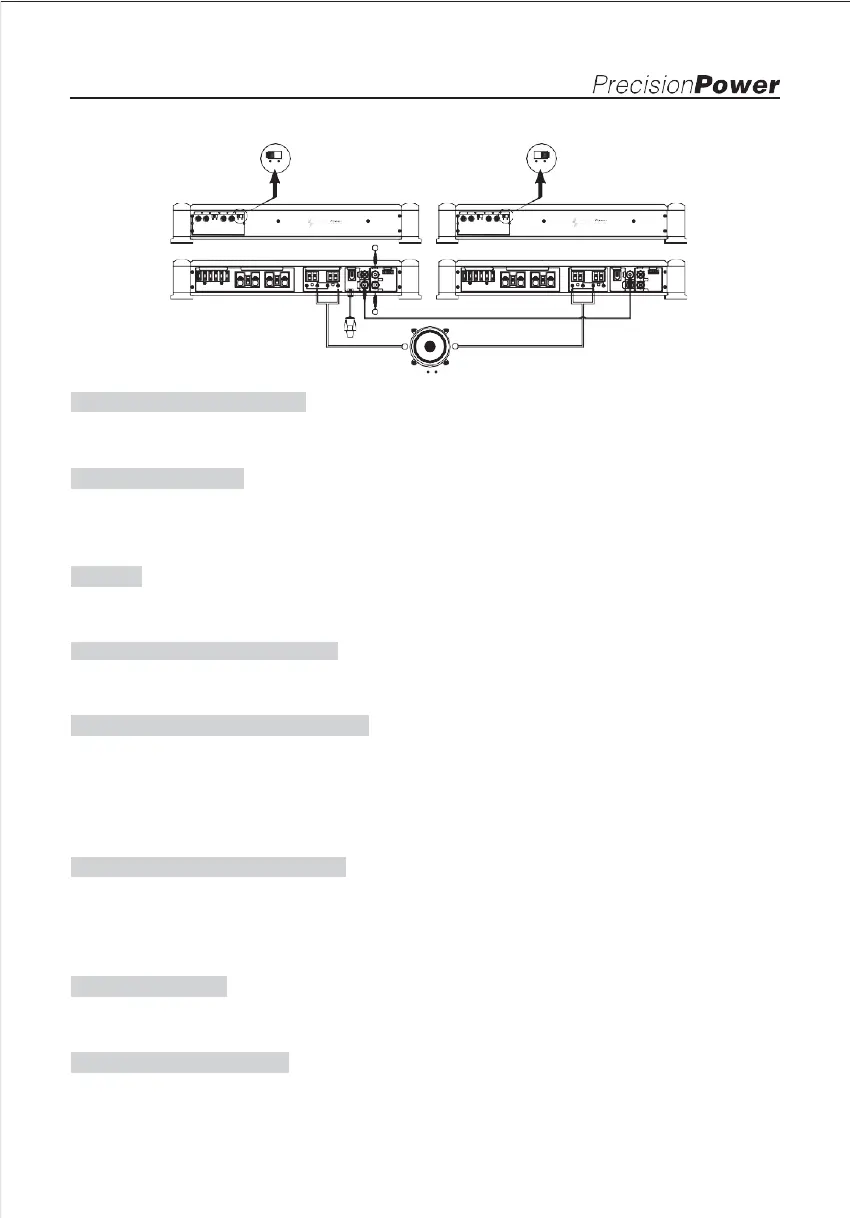

MASTER SLAVE
MONO CHANNEL CLASS D PREMIUM AUDIO SYSTEM MONO CHANNEL CLASS D PREMIUM AUDIO SYSTEM
L
FUSES
POWER IN PU T
SPEAKERS OUT
REMOTE
INPUT HI-
INPUT DTAT LINK
FUSES
POWER IN PU T
SPEAKERS OUT
REMOTE
INPUT HI-
INPUT DTAT LINK
+ L - G
- R +
AUTO
TURN O N
+ L - G - R +
AUTO TU RN ON
L
A1800.1D
DC12V REM GND
DC12V REM GND
GAIN CONTROL
A1800.1D
DC12V REM GND
DC12V REM GND
GAIN CONTROL
R
R
SLAVE
6.
Remote Bass Boost Control
1 ~ 8
This control adjusts the Bass Boost gain for the amplifier’s speaker output (0~ +12dB)
✽Packed product can be different from the photograph.
7.
SPEAKER Terminals
As shown in the wiring diagrams, be sure to observe speaker polarity through the system and
speaker impedance. This specially tooled terminal is designed to accommodate up to 10-gauge
speaker wire.
8.
FUSES
For convenience all ATOM Series amplifiers utilize common automotive ATC type fuses.
For continued protection in the event that a fuse blows, replace the fuse only with the same value.
9. +BATT (Power Input Connection)
This terminal is the main power input for the amplifier and must be connected directly to the
positive (+) terminal of the car battery.
10.
Remote (Remote Input Connection)
All atom Series amplifiers can be turned on by applying 12 volts to this terminal. This can be
found on the rear of the source unit in the form of an electric antenna output, or a remote
output.
If this is not available, you can wire to the ACC position on the key. An 18-gauge wire is
sufficient to run the REMOTE.
11.
GND (Ground Input Connection)
A good quality ground is required for your ATOM Series amplifier to operate at peak
performance.
A short length of cable the same gauge as your power cable should be used to attach the
ground terminal directly to the chassis of the vehicle.
12.
Power Indicator
The White when the power is on.
(PPI
Logo Badge)
13.
Gain adjustment control
The input level can be adjusted with this control. Turn it in the clockwise direction when the output
level of the car audio unit seems low.
9
-
+
