Assembling the AMT 21
Note: When the handlebars are mounted correctly, each
bends slightly outward.

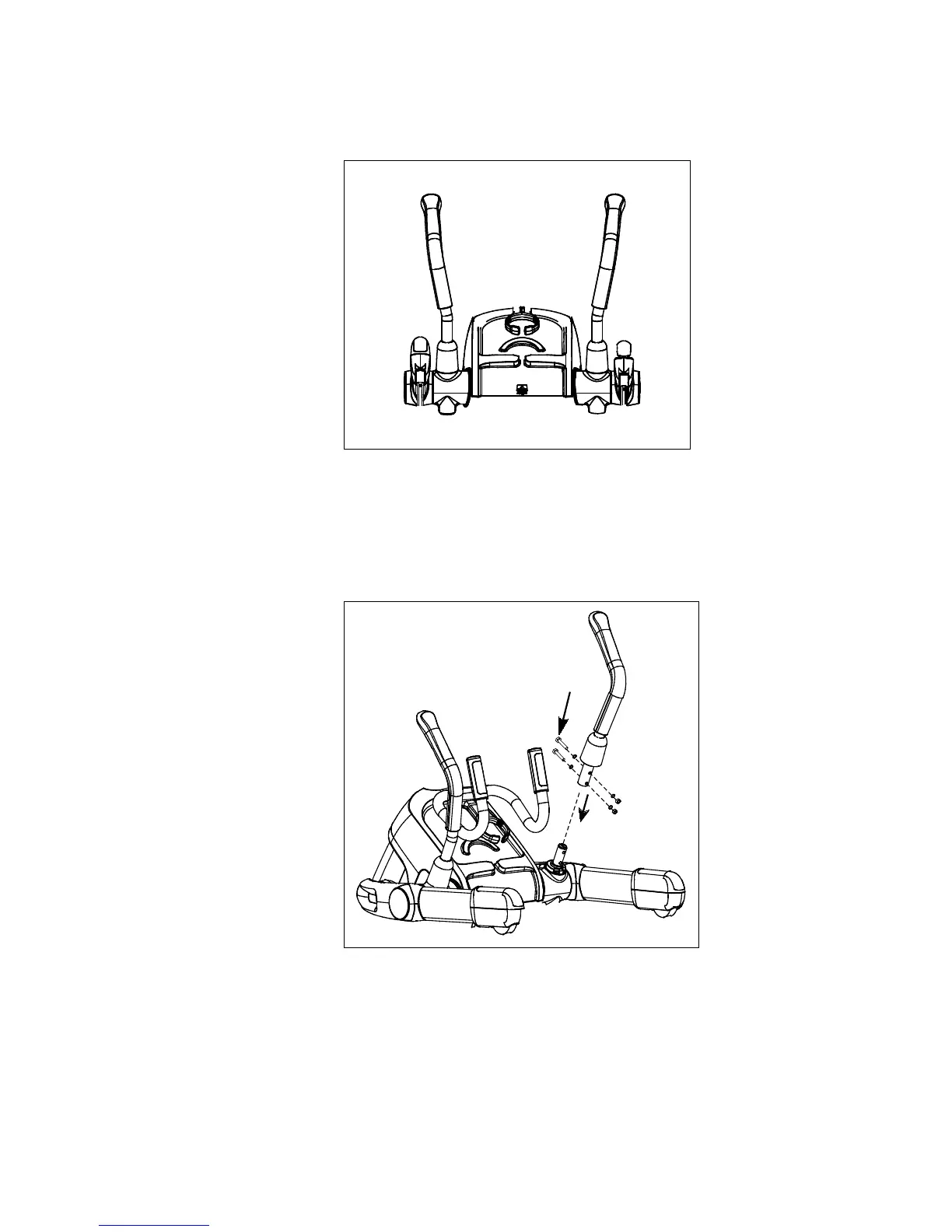

Figure 4: View of handlebar placement
3. Attach the handlebars using four ⁵₁₆-inch x 1¾-inch hex
head screws, eight ⁵₁₆-inch washers, and four ⁵₁₆-inch
locknuts. Using a torque wrench, tighten the fasteners
with 180 to 200 inch-pounds of torque.
Figure 5: Handlebar attachment
4. Rotate the plastic boot so that its tab aligns with the
cutout below it, and then press the boot downward to
secure it in place.
