C944 Treadmill
Page 36
Procedure 6.4 - Replacing the Lift Platform
WARNING
Always turn off the circuit breaker and unplug the treadmill before you remove the treadmill hood.
Removing the Lift Platform
1. Turn off the treadmill with the circuit breaker, then unplug the power cord from the wall
outlet.
Note:
To avoid scratching or marring the treadmill, put a drop cloth underneath the treadmill when you
perform Step 2.
2. Place the treadmill on its left side.
3. Remove the lower bolt and nut that secure the lift motor to the lift platform.
Note:
It is not necessary to remove the lift motor when you remove the lift platform.
4. Remove the bolt that connects the actuator block to the lift platform.
5. Remove the bolts and nuts that secure the lift platform to the treadmill frame (see Diagram
6.3

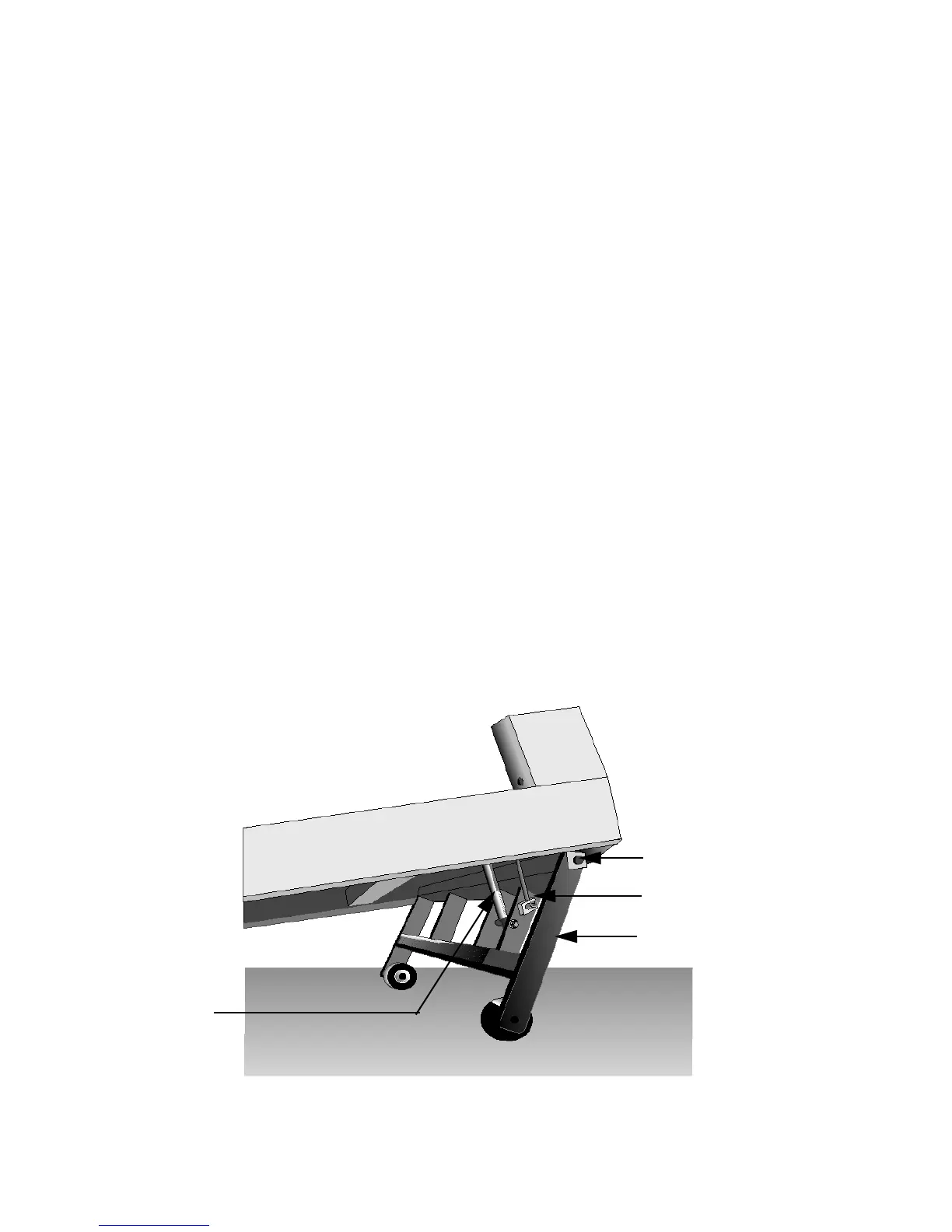

Diagram 6.3 - Lift Platform
Actuator Block
Lift Platform
Lift Motor
Lift Platform
Mounting Bolt
To Next Page
