C944 Treadmill
Page 5

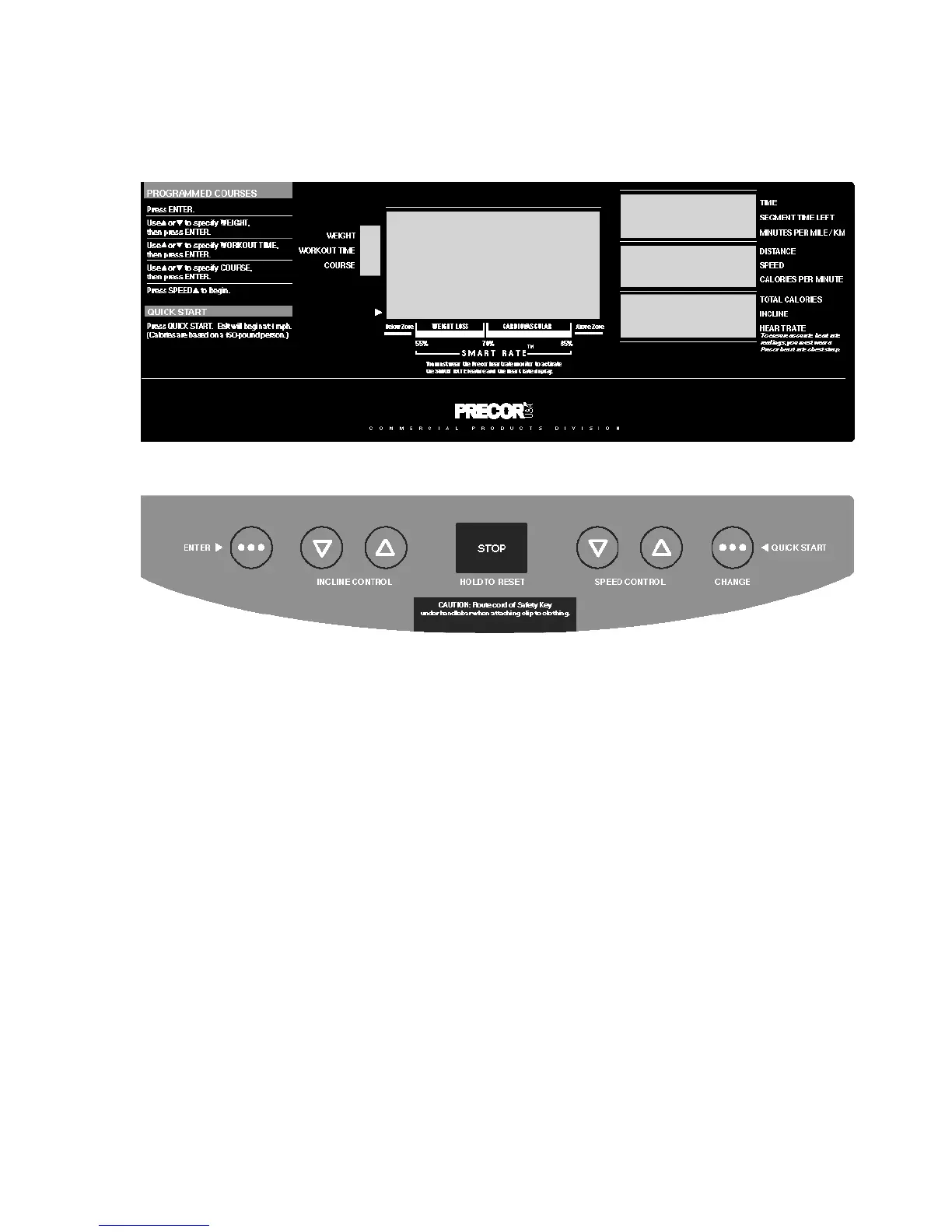

Diagram 2.1. C944 Treadmill Display
5. With the ADJUST LIFT banner scrolling, press the INCLINE keys. The running deck will
incline when the INCLINE
▲ key is pressed and decline as the INCLINE ▼ key is pressed.
The running deck will stop moving when the key is released. After the INCLINE keys are
pressed, the message, PRESS ENTER WHEN FINISHED will scroll by.
Note:
The following diagnostic test automatically searches for the upper and lower limit switches and
the zero sense switch. It also detects a non-functional (non-moving) lift.
6. Watch the electronic console. If the three limit switches are adjusted correctly, the following
series of messages is displayed on the electronic console:
GOING TO TWELVE PERCENT
AT TWELVE PERCENT
GOING TO UPPER LIMIT
GOING TO NEG TWO PERCENT
AT NEGATIVE TWO PERCENT
GOING TO LOWER LIMIT
GOING TO ZERO
7. If all of the messages listed in Step 6 are displayed on the electronic console...
