C954, C956 Treadmill
20077-107 Page 55
Procedure 6.11 - Replacing the Drive Motor Cooling Fan
1. Set the treadmill circuit breaker in the “off” position and unplug the treadmills line cord from
the AC outlet.
2. Remove the hood.
3. Remove the drive motor per Procedure 6.7, steps 2-8.
4. Remove the four screws that mount the drive motor cooling fan to the drive motor. See
Diagram 6.15

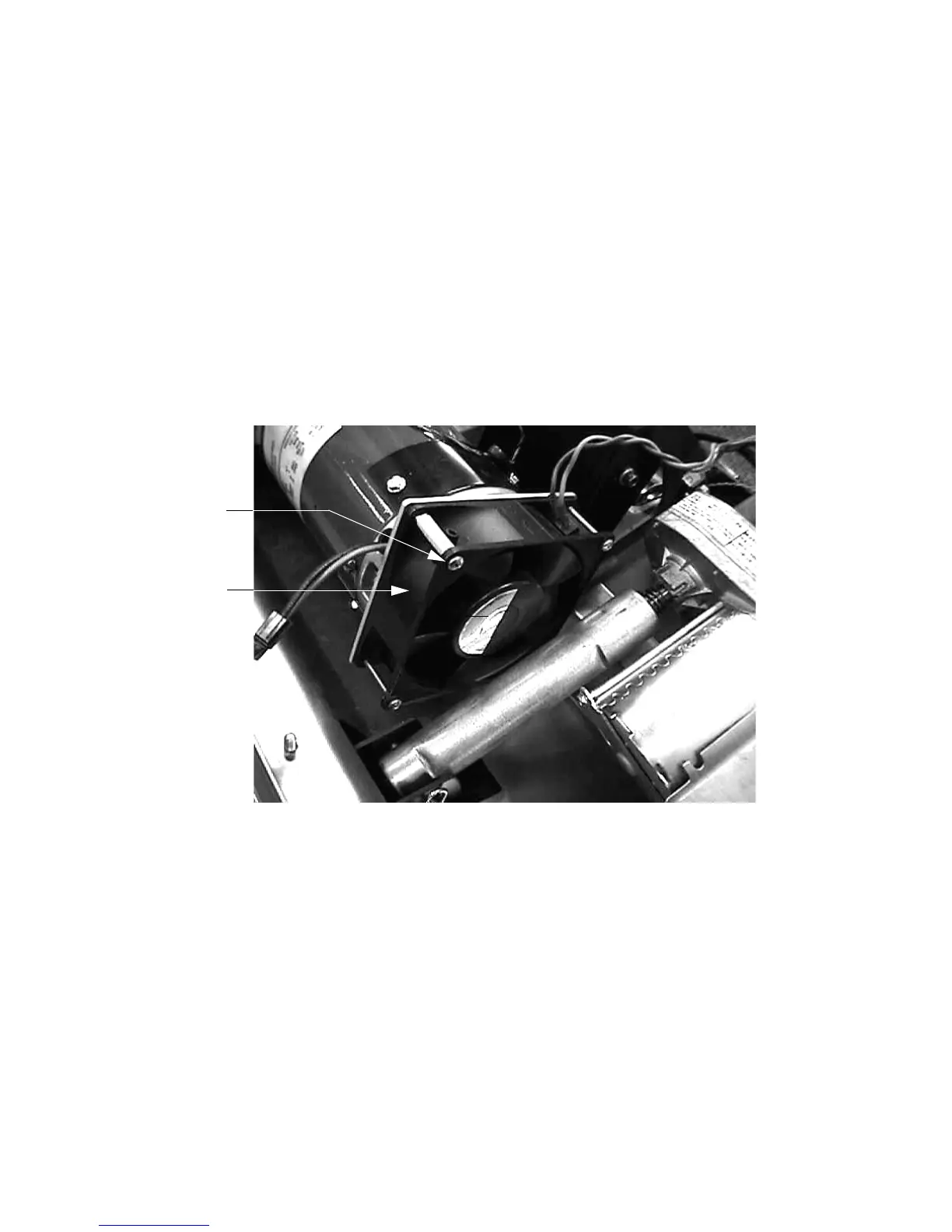

Diagram 6.15 - Drive Motor Cooling Fan Mounting
5. Set the replacement drive motor cooling fan at its mounting position on the drive motor and
fasten it with the hardware removed in step 4.
6. Replace the drive motor per Procedure 6.7, steps 11-15.
7. Check treadmill operation per Procedure 3.
