C956i, C966i (Gen 06) Treadmill
Page 1-32 Page 32
Procedure 6.2 - Replacing the Incline Platform
1. Set the treadmill circuit breaker in the “off” position. Remove the AC line cord from the AC
outlet.
2. Carefully, lay the treadmill on its side.
3. Remove the hitch pin and clevis pin that fastens the incline motor tube to the incline
platform. While the incline tube is not fastened to the incline platform, care must be taken to
not allow the incline tube to rotate. If the incline tube rotates, the incline motor must be re-
calibrated per Procedure 4.1.
4. Remove the two large hitch pins (one each side) from the incline platform to frame
mounting. See Diagram 6.1. Remove the incline platform mounting pins and remove the
incline platform from the treadmill.

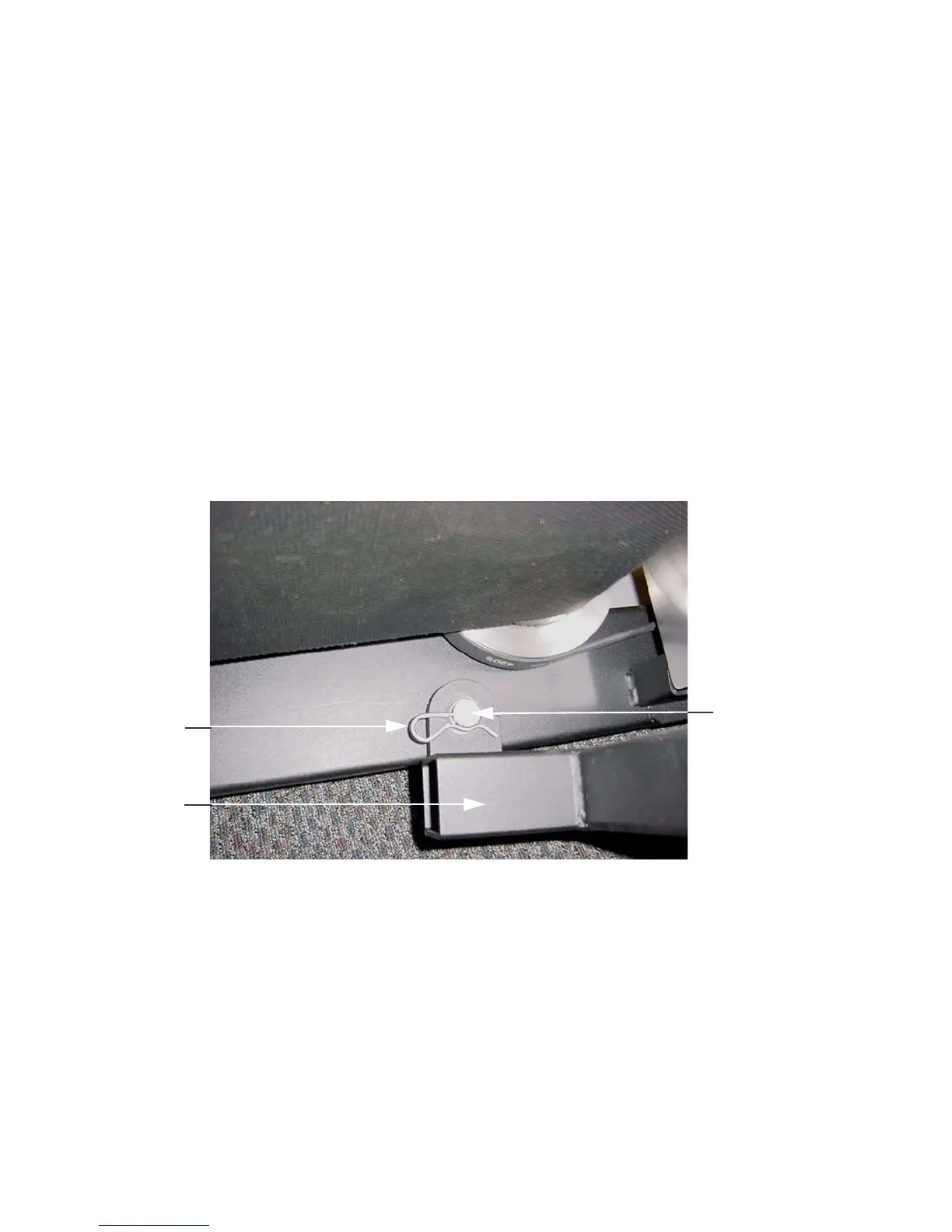

Diagram 6.1 - Incline Platform Mounting
5. Remove the wheels from the old incline platform and remount them on the replacement
incline platform.
6. Set the replacement incline platform in it mounting position. Align the key the incline
mounting pin with the keyway in the frame and slide the incline mounting pins into place.
See Diagram 6.2. Fasten the incline mounting pins with the hitch pins removed in step 4.
7. If the incline tube or the incline motor’s drive screw have been moved, re-calibrate the
incline motor per Procedure 4.1, at this time.
To Next Page
