C956i, C966i (Gen 06) Treadmill
Page 43
Procedure 6.10 - Replacing the Upper PCA
1. Set the treadmill circuit breaker in the “off” position and unplug the treadmill’s line cord from
the AC outlet.
2. The PCA’s in the display are static sensitive. They can be damaged if proper static
prevention equipment is not used. Attach an anti-static wrist strap to your arm, then connect
the ground lead of the wrist strap to the treadmill’s frame ground.
3. Remove the eight screws that fasten the display back cover and remove the display back
cover.
4. Disconnect the data cable, 2 CSAFE cables and the heart rate cable from the upper PCA.
See Diagram 6.9.

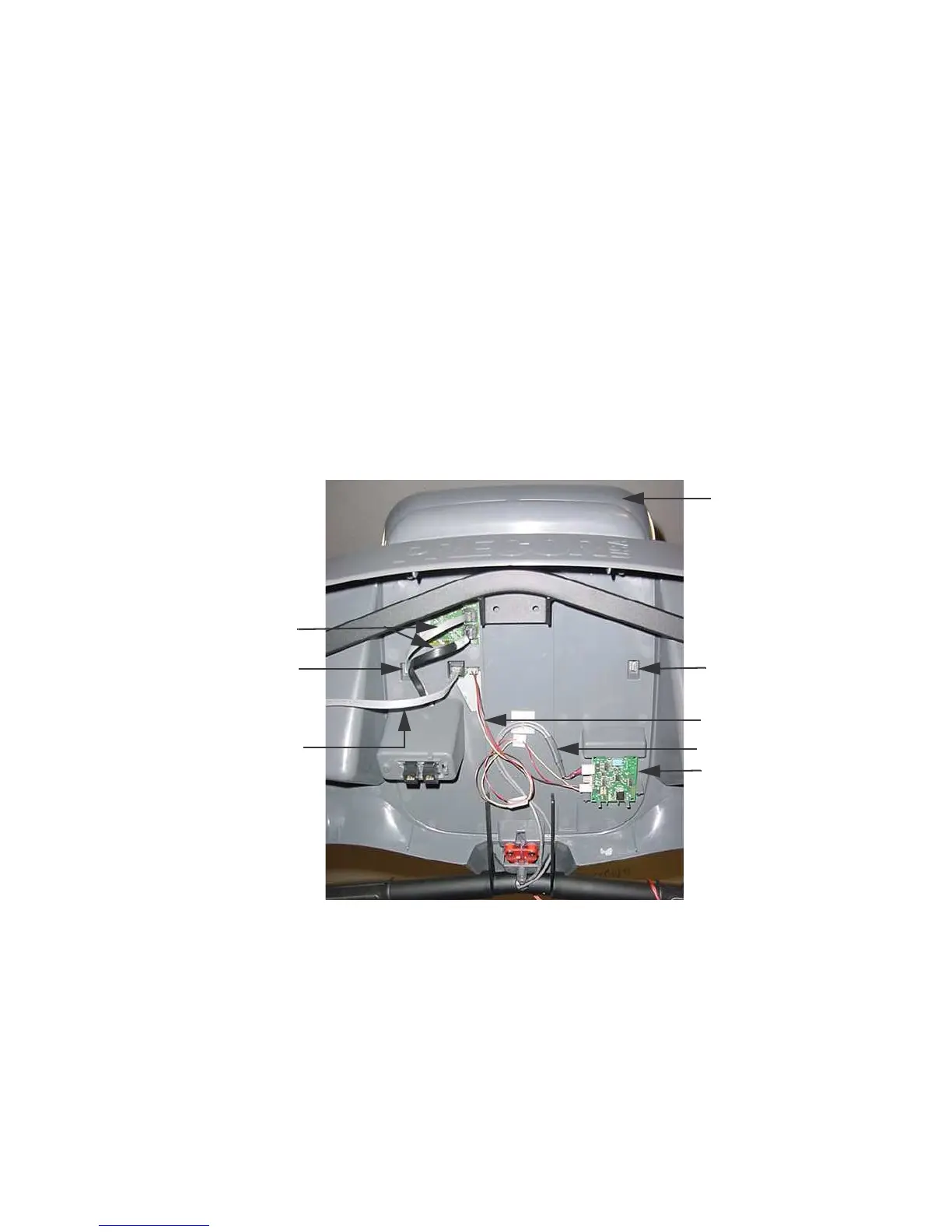

Diagram 6.9 - Upper PCA and Heart Rate PCA Mounting
5. The display cap snaps onto the display with two tabs. Reach into the upper portion of the
display and locate the two display cap tabs. Press the tabs outwards to disengage the tabs
and remove the display cap.
6. The display face snaps onto the display with six tabs. One of the tabs is behind the HR PCA.
The HR PCA snaps into its mounting. Press its tabs downward and remove the HR PCA
from its mounting.
