22 Assembling and Maintaining Elliptical Fitness Crosstrainers: EFX 883 / 833 / 813
2. Thread the cable through the left upright support. Tape it
to the top of the upright support to secure it temporarily.
Important: Do not stretch, crimp, or damage the cable.
Cables damaged by improper installation will not be covered
by the Precor Limited Warranty.

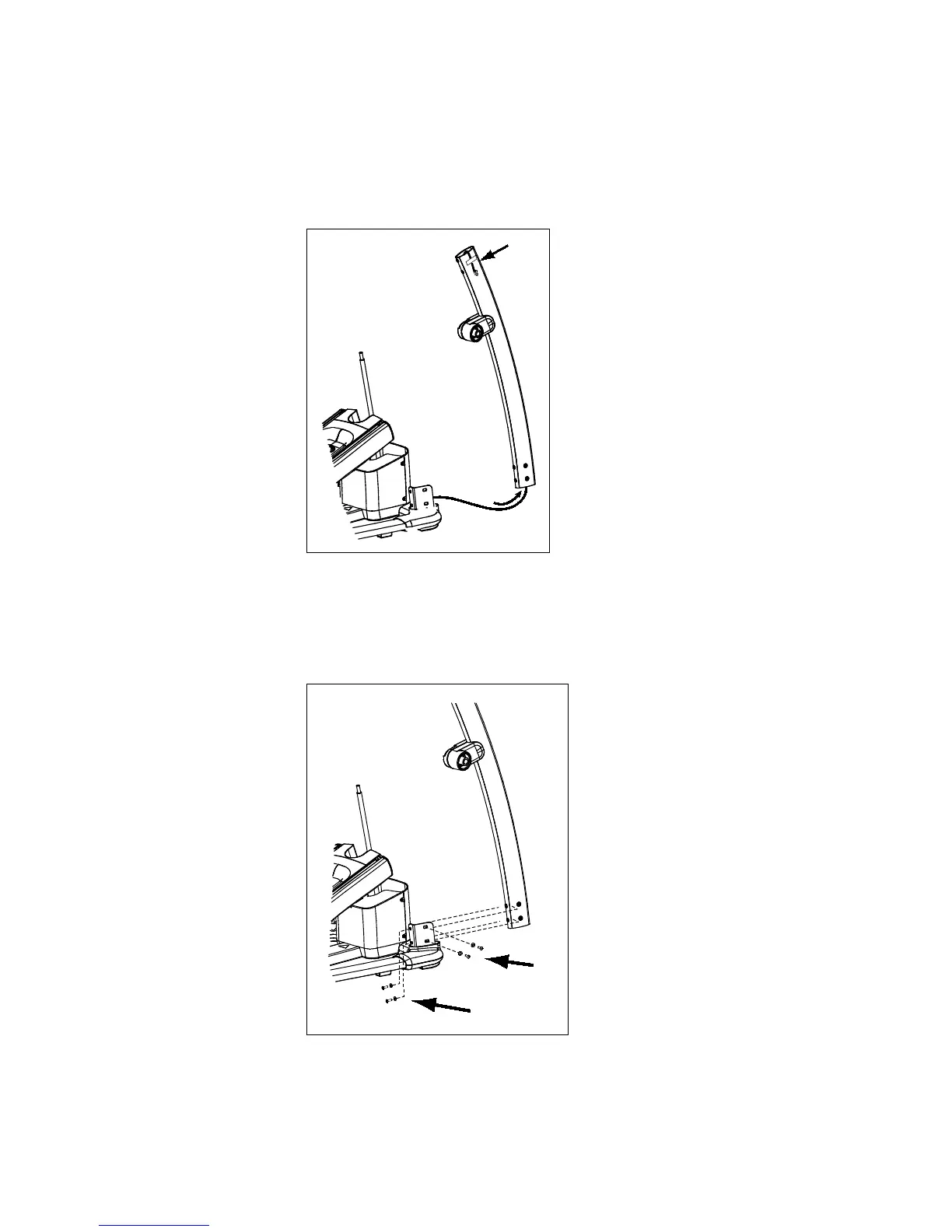

Figure 3: Route the cable
3. Attach the left upright support to the base frame using
four buttonhead screws, four split washers, and four
⁵₁₆-inch washers. Partially tighten the fasteners.
Figure 4: Attach the upright support to the base frame
