Assembling the EFX 23
4. Repeat steps 2 through 4 to attach the right upright
support.
5. Using a right-angle ³₁₆” hex wrench, remove the four ¹₄” x
³₄” buttonhead screws securing the central plastic base
cover.
6. Remove the tape at the top of the left upright support.
7. Feed one of the cables you want to install down through
the upright support, then along the inside of the foot
support and back through the central frame member.
Repeat this step to position the remaining cables. The
following illustration shows the general path of the cables.

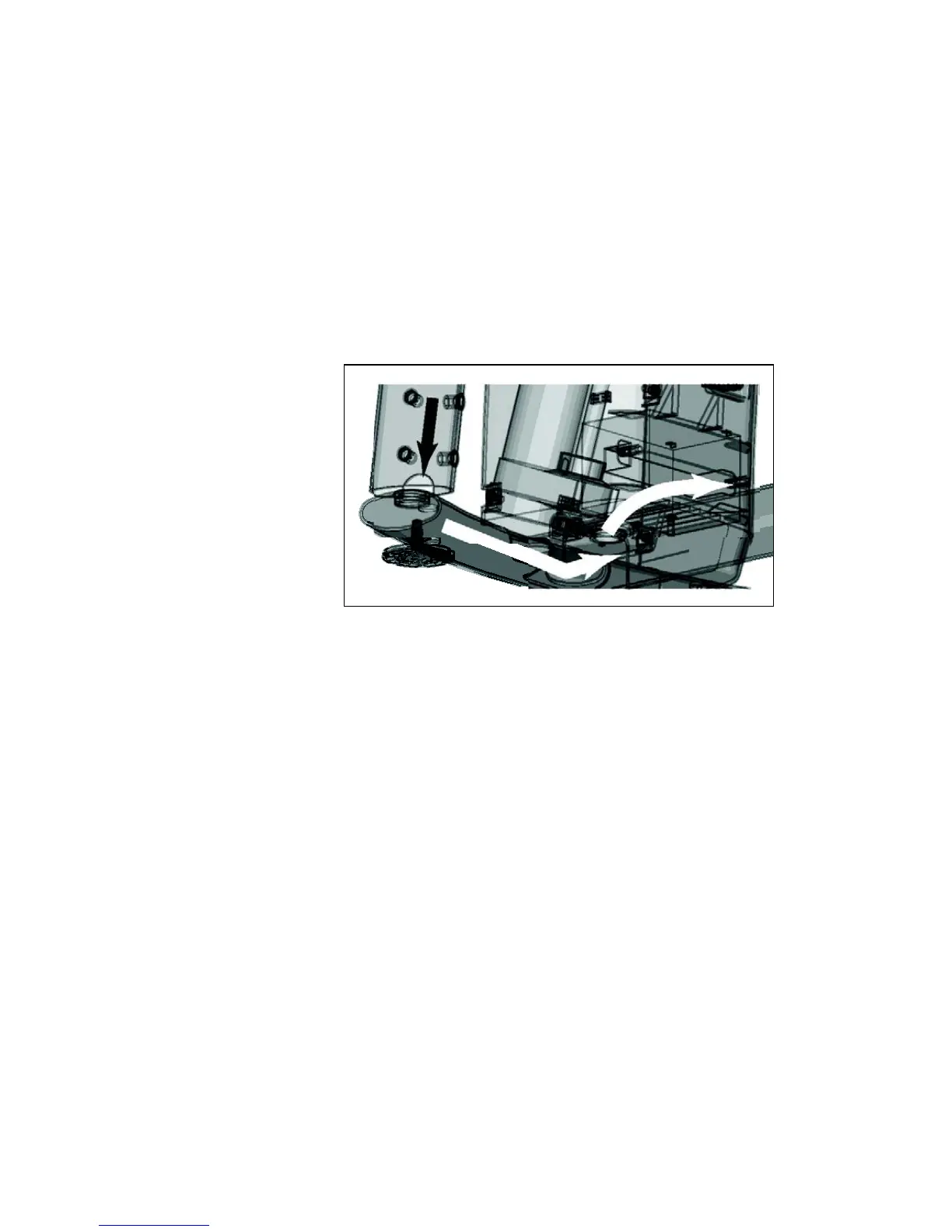

Figure 5: EFX cable path
8. Pull the end of the cable upward through the opening just
behind the lift motor, as shown in the previous illustration.
9. Locate the tabbed end of the modular plug coupler. Snap
this end of the coupler into the square opening in the jack
panel.
10. Slide the quick-disconnect terminal on the grounding lead
of the power cable over the grounding terminal on the
equipment frame.
