page 3
EFX parts overview.

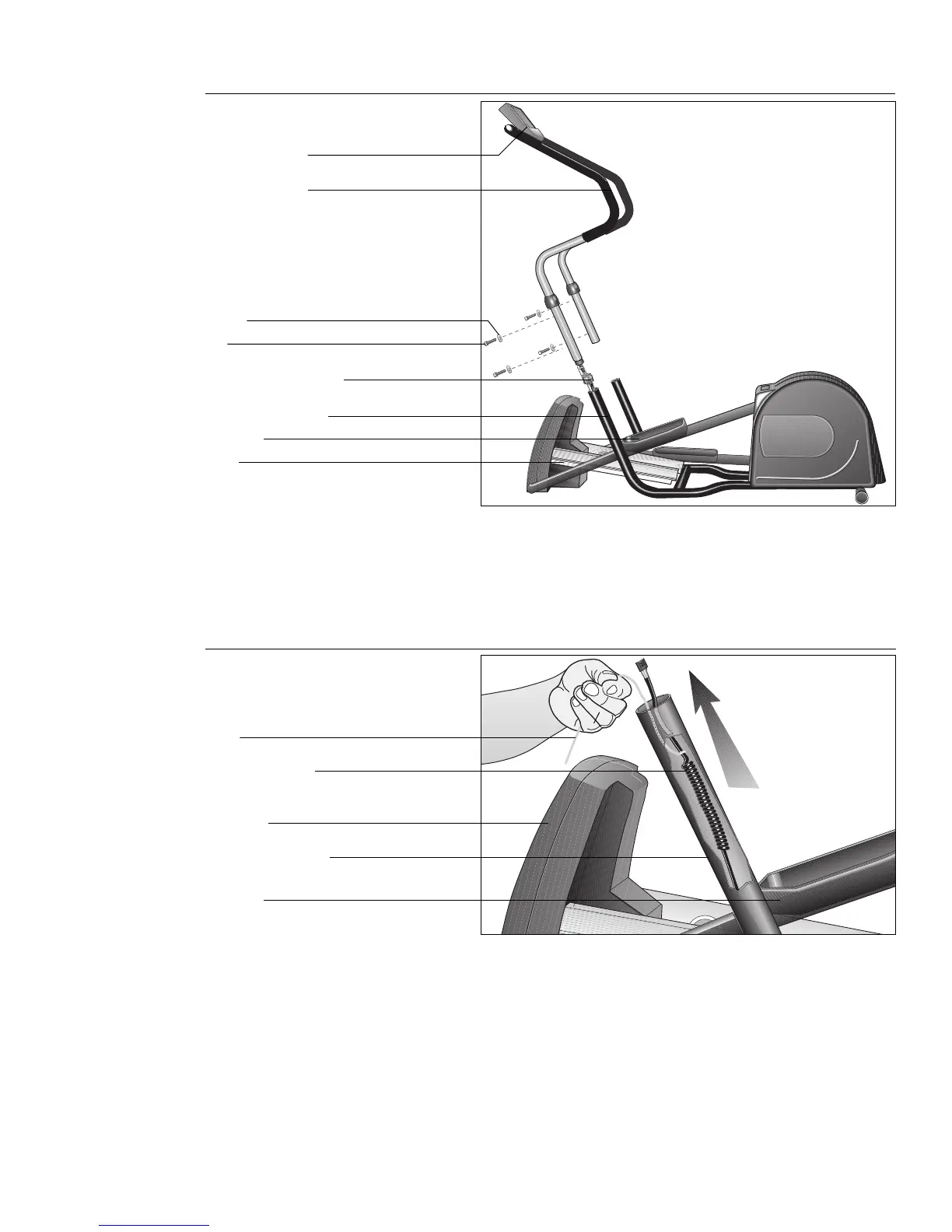

Diagram 2
Electronic console
Handrail assembly
3. For an overview of the EFX and its parts, study Diagram 2. Understanding the names of the
different parts will help you assemble the unit.
4. Set the handrail assembly close to the base handrail support, so that the ribbon cable from the
upper handrail assembly and the string protruding from the base support face each other.
Ramp
Base handrail support
Foot pedal
Ribbon cable connection
Washer
Bolt
5.
Get assistance before performing the following steps.
6. Grasp the string that is secured to the base support. Gently pull up on the string to produce
the ribbon cable connection from inside the base support. See Diagram 3.
Diagram 3
Front cover
Pulling out the
coiled ribbon cable.
String
Coiled ribbon cable
Base handrail support
Foot pedal
CAUTION: Do not let go of the string until you
are holding onto the coiled cable. The string
could drop inside the base support making it
difficult to retrieve the coiled ribbon cable.
CAUTION: Do not install the handrail
assembly until you move the EFX to its final
location. Ask for assistance to move the unit.
To Next Page
