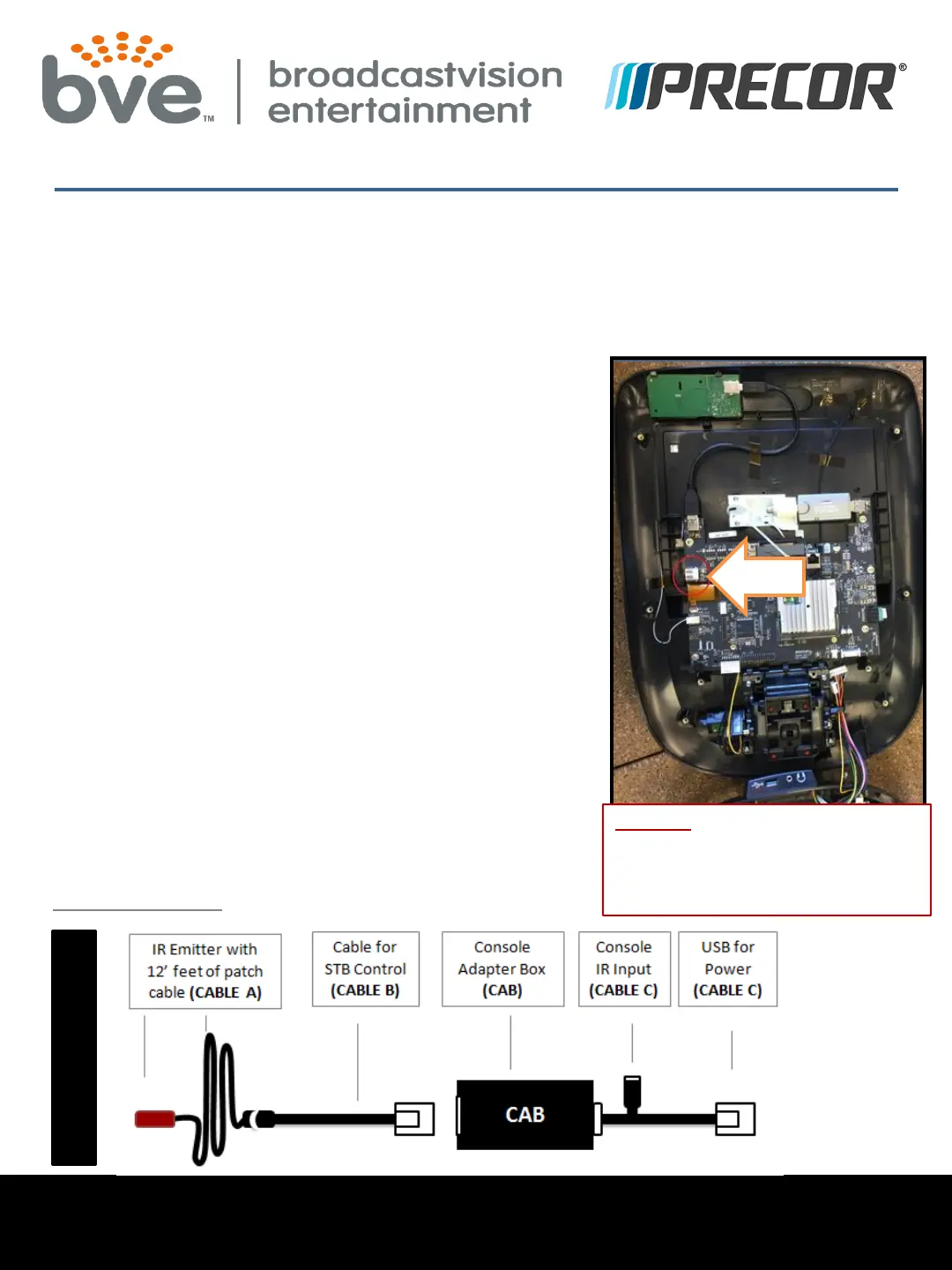

Installation Instructions - Precor P62 (w/media adapter)
A. Place console face-down on a soft, scratch-free
surface and remove rear cable access cover.
B. Remove 8 Phillips screws holding back cover (6
in plastic, 2 through metal armor) and carefully
remove back cover and armor from P62.
C. Plug CABLE C from the CAB into the USB port
for power.
D. Be aware of wires near the headphone jack
when connecting back cover to P62. Ground
wire and HR wire will need to be unplugged at
minimum. Back cover can be pivoted as shown.
E. Reconnect wires unplugged at step B and pivot
back cover onto P62 while routing other end of
USB to RJ45 patch cable through hole in P62
back armor (see picture on next page). Use
caution to avoid pinching wires.
F. Reattach back cover using 8 screws removed in
step B.
STEP 1 - When possible, install the USB to RJ45 patch prior to installing console
on unit. If this has been accomplished, skip to STEP 2. If console has already been
installed on unit with out connecting the USB to the RJ45, disconnect all cables
and remove console from the unit.
R
E
F
E
R
E
N
C
E
USB
WARNING - Use extreme caution to avoid
damaging board, connectors, or cables when
accessing Spare USB Port on P62 since Precor
will not warranty and many parts are not
available.
To Next Page
