Assembling the Treadmill 27
2. Connect the new power harness as shown in the following
figure and table.

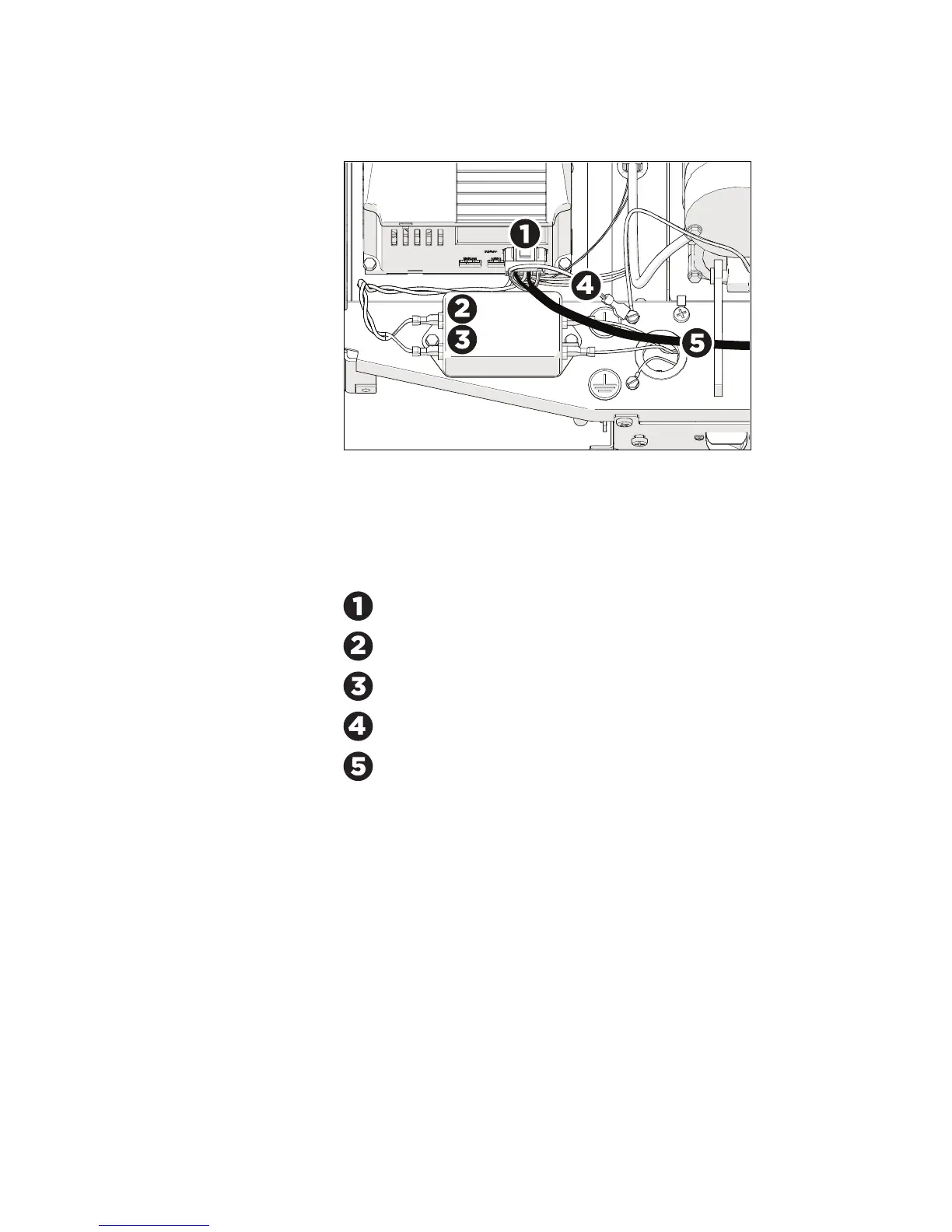

Figure 7: P80 power harness connection points
Table 1. P80 power harness connections
Location Connector
Drive input connector
Brown lead with quick-connect terminal
Blue lead with quick-connect terminal
Green and yellow lead with quick-connect terminal
AC input connector for DC power supply
3. Using the Velcro connectors provided, attach the power
supply to the right-hand side of the front crossmember on
the treadmill base. Plug the AC input connector into the
socket on the power supply.
4. Route the DC output cable of the power supply through
the cable ties behind the power supply, toward the
upright support on your right. Bend the cable ties over the
DC output cable to hold it in place.
5. Connect the black three-conductor plug on the AC wiring
harness to the socket on the power supply.
