28 Assembling and Maintaining TRM 800-Series Treadmills
In addition to the television and Ethernet cables, the P80
console packaging also includes an accessory jack panel that
you must install on the treadmill. This jack panel provides a
connection point between these two cables and the networks
at your facility.
To install the accessory jack panel (treadmills with P80
consoles only):
1. Remove the two #10 x ¹₂-inch Phillips-head machine
screws securing the blank plate at the right front corner of
the treadmill, as shown in the following figure. Discard the
blank plate.

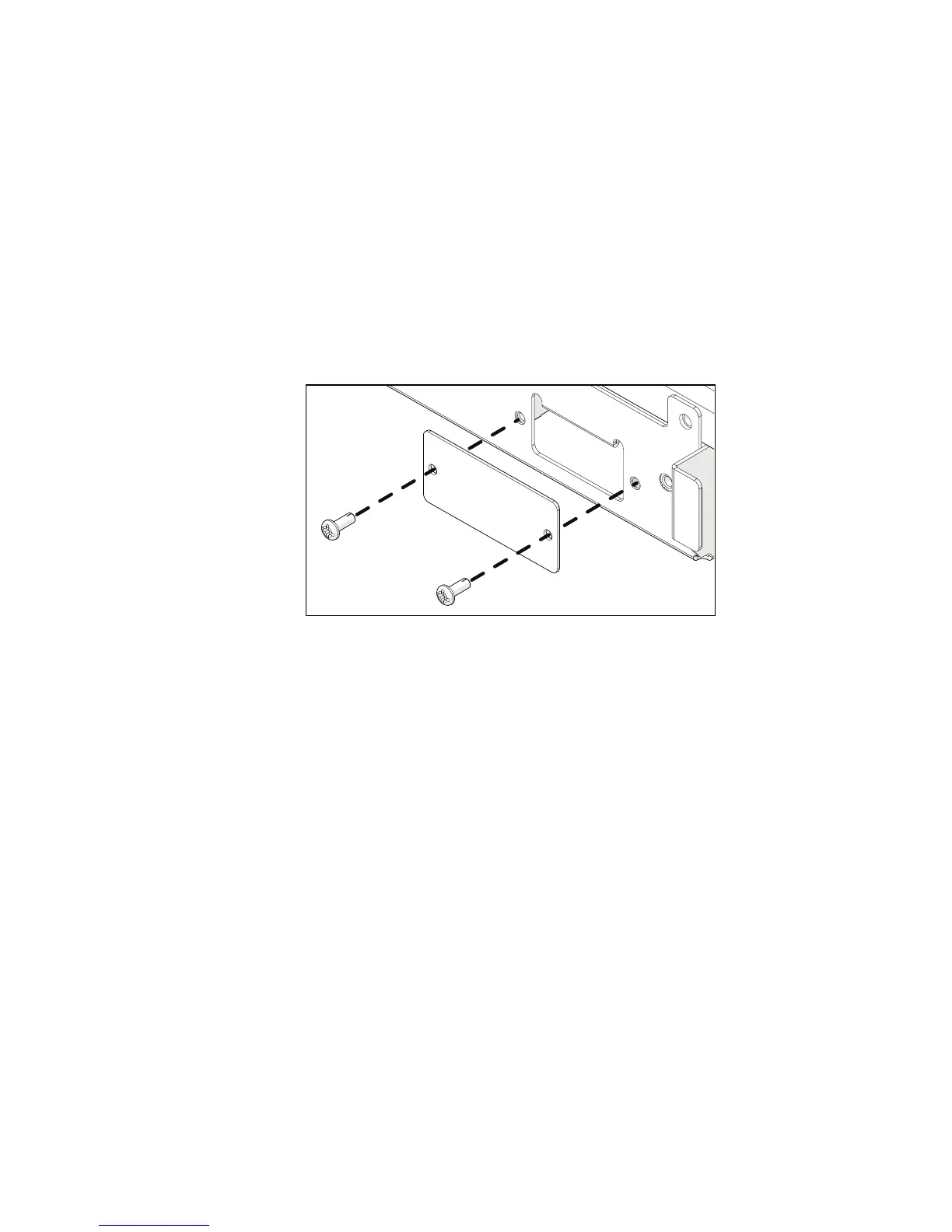

Figure 8: Blank plate removal
2. Feed the console cable assembly downward through the
cable channel in the upright support on your right. Drape
the remaining cable over the inside edge of the support
and tape it into place if necessary to secure it temporarily.
