Assembling the Treadmill 29
3. Pass the lower end of the television cable through the
right-hand grommet and attach its F-type connector to
the connector on the inward side of the jack panel. Using
a ⁷₁₆-inch torque wrench, tighten the connectors to 30
in-lb.
4. Pass the lower end of the Ethernet cable through the
right-hand grommet and snap it into the eight-pin
modular coupler installed in the jack panel.
5. Fit the lower ends of any optional console cables into the
notch in the upper edge of the jack panel.
6. Place the jack panel over the opening and replace the two
machine screws. Tighten the screws completely.

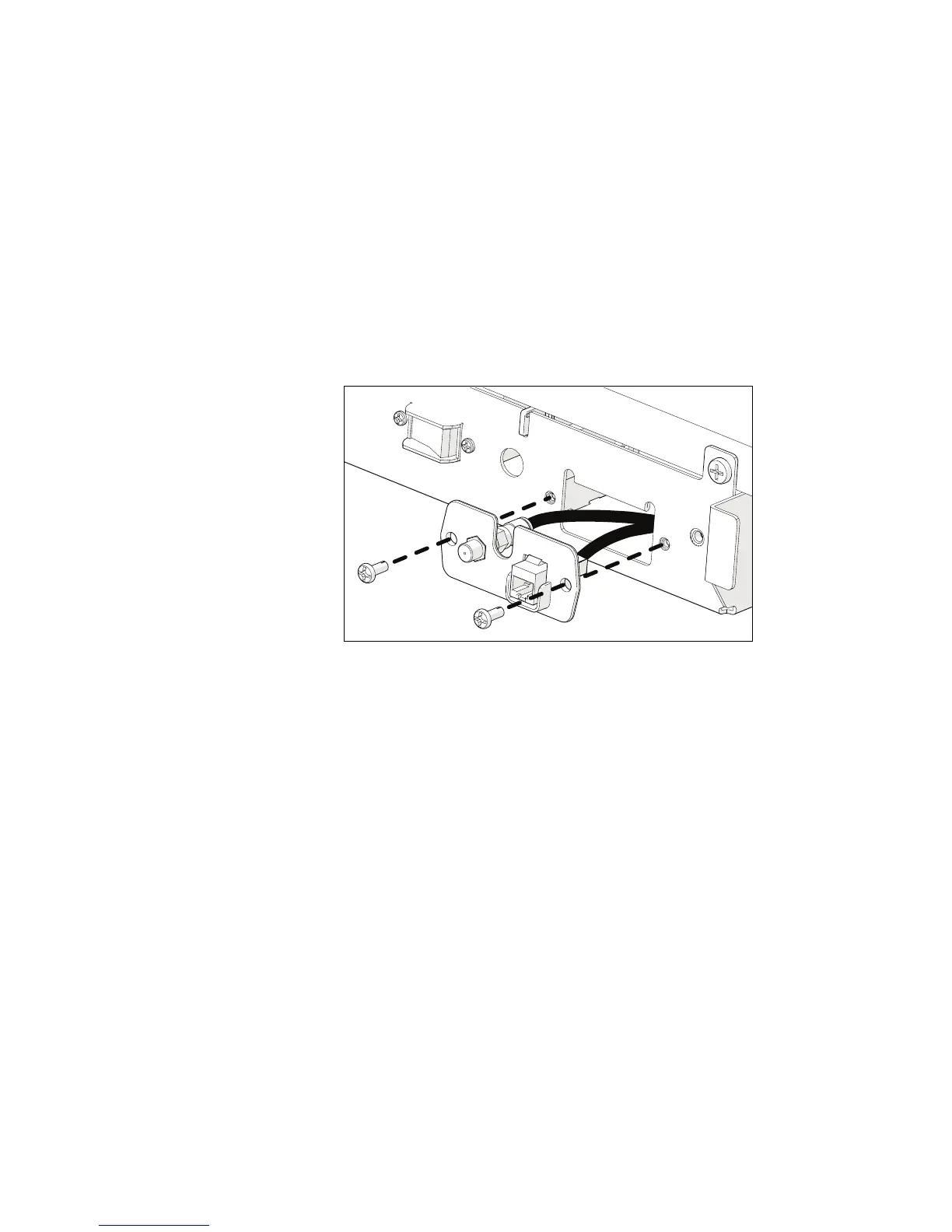

Figure 9: Accessory jack panel installation
