30 Assembling and Maintaining TRM 800-Series Treadmills
To attach the treadmill fairing and finish installing the
cables:
1. Detach the six ¹₄-inch × ³₄-inch self-tapping panhead
screws securing the back cover on the treadmill fairing,
then remove the back cover. Set the back cover and the
six screws aside to be reinstalled later.
Note: In the following step, make sure that the plastic
coverings of the treadmill arms fit over the upright
supports on all sides and are not bent or pushed out of
shape. The assistance of a second person can be helpful
in positioning and lowering the fairing.
2. Lower the treadmill fairing assembly over the upright
supports so that its brackets extend into the rectangular
openings in the supports. Tilt the fairing forward slightly,
guide the brackets into the supports, and then lower the
fairing into place.

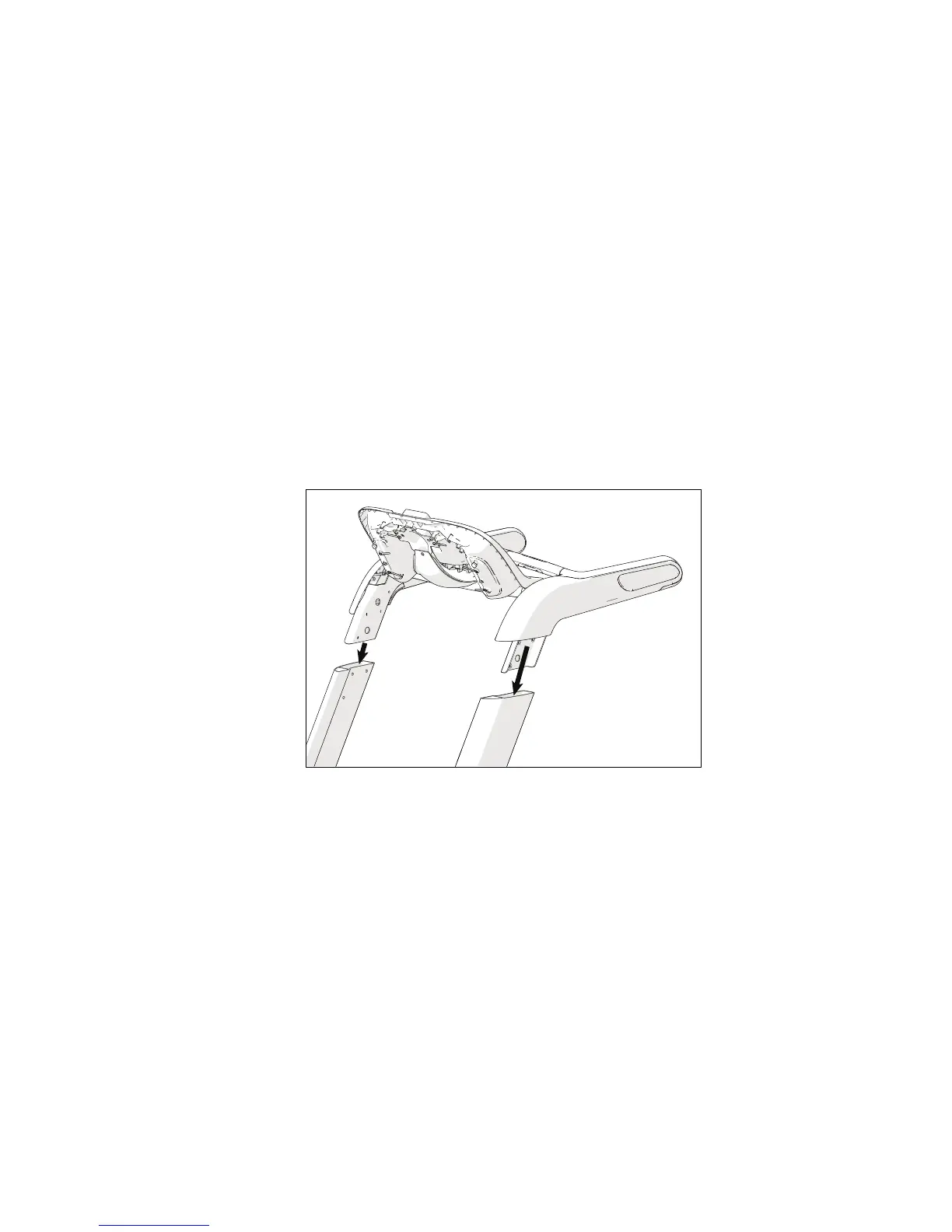

Figure 10: Fairing position in upright supports
