Assembling the Treadmill 35
To complete assembly of the treadmill base:
1. Insert a square grommet into the square opening in each
corner cover, making sure that the grommet is completely
seated.

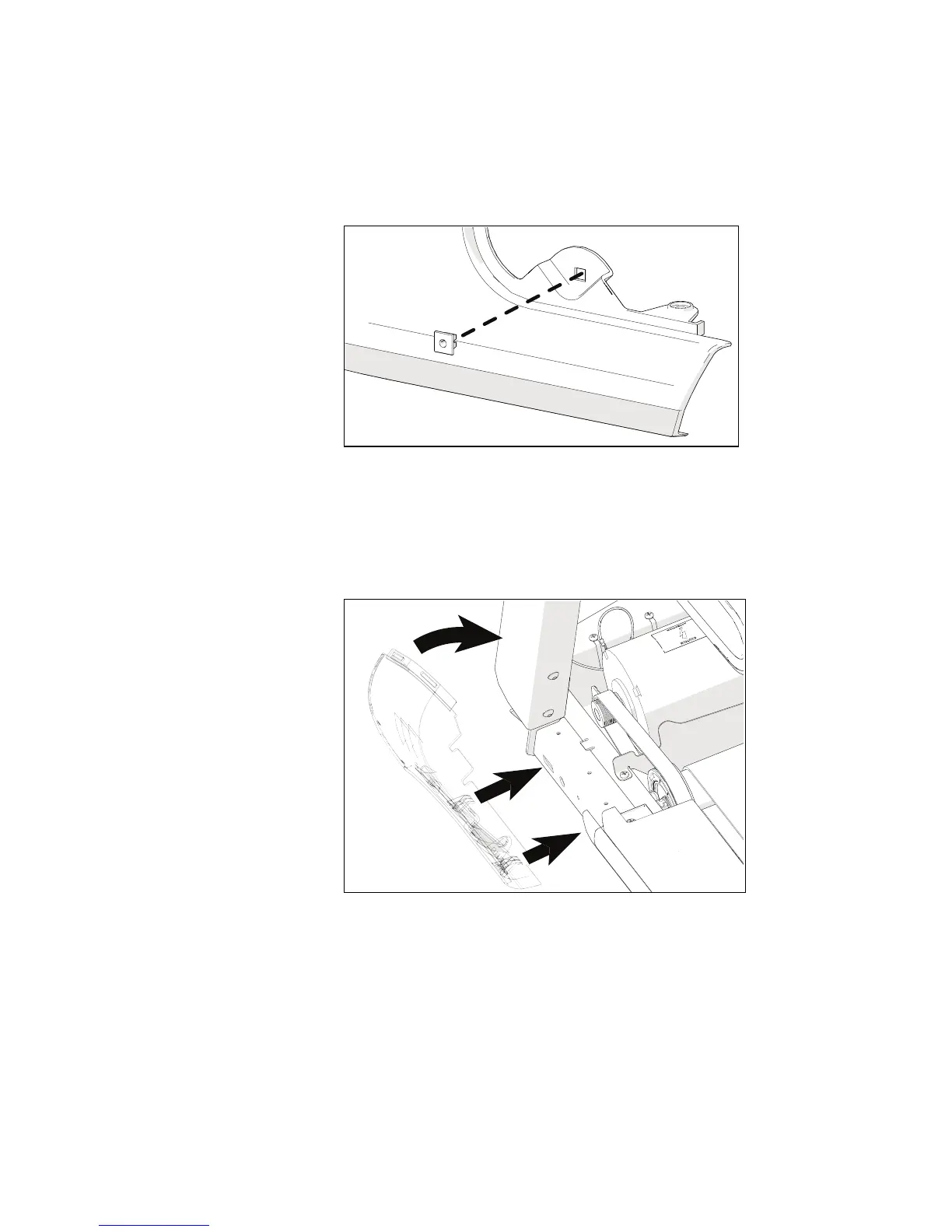

Figure 16: Corner cover grommet attachment
2. Attach a corner cover to each of the lower front corners of
the treadmill. Insert the two hooks on the inside of each
corner cover into the rectangular openings in the treadmill
frame, then rotate the cover into position.
Figure 17: Corner cover positioning
