©2019 Precor Inc. | Diverging Lat Pulldown RSL 314 | Assembly Guide
5

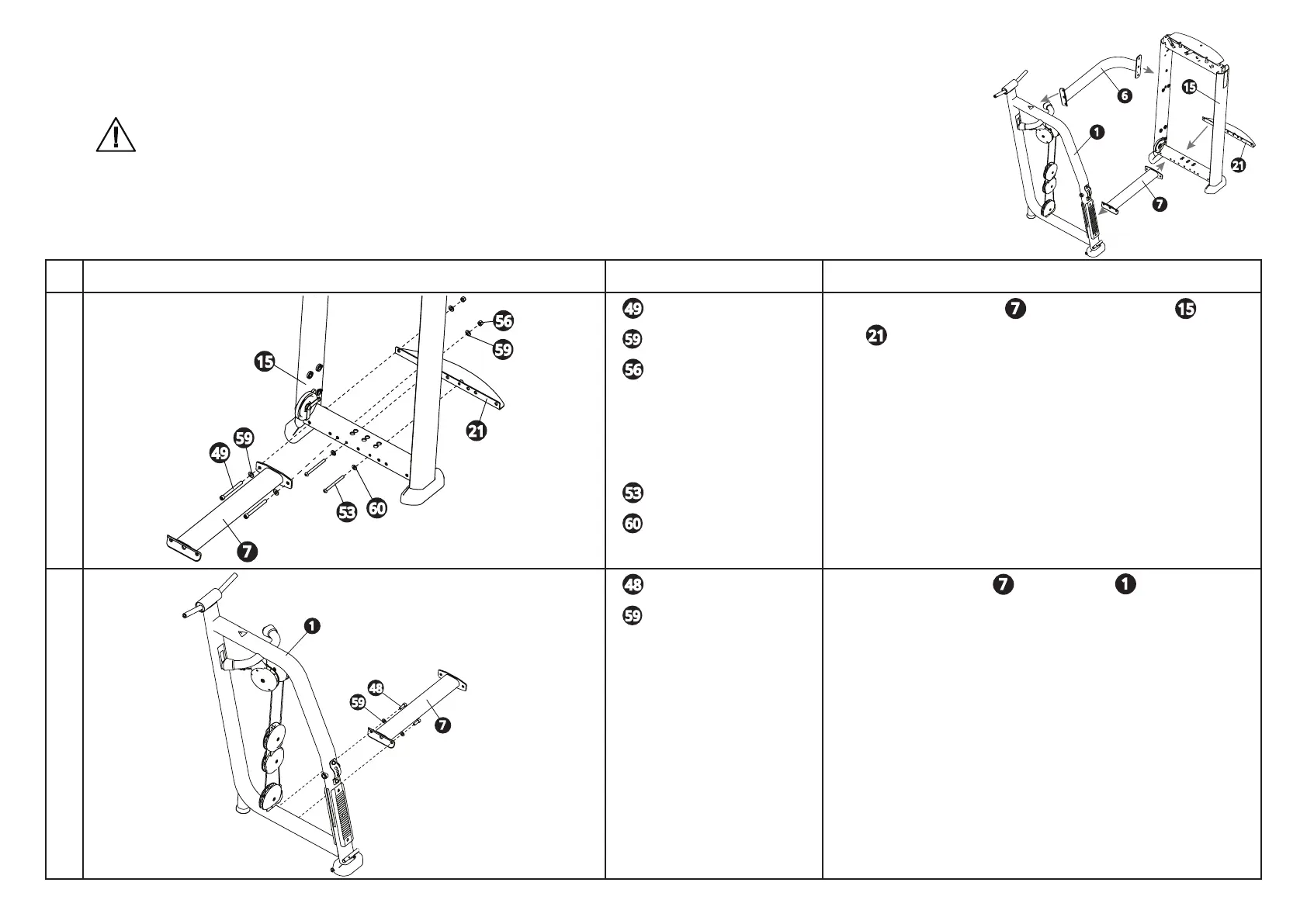

Frame Assembly
DO NOT tighten fasteners until instructed to do so.
Have your assistant hold frame parts in place during assembly.
Image Hardware Instructions
1 2 M12 x 130 mm SHCS
4 washers, 13 mm
2 M12 nylon lock nuts
Tools: Hex wrench, 10 mm
Socket wrench, 19 mm
2 M10 x 125 mm BHCS
2 washers, 11 mm
Connect lower cross brace to weight stack tower and kick
plate .
Align at last hole on left under pulley.
Insert both guide rod fasteners from user side to align the kick
plate. Hand tighten only. These will be removed temporarily in
a later step.
2 2 M12 x 35 mm SHCS
2 washers, 13 mm
Tool: Hex wrench, 10 mm
Attach lower cross brace to main frame .
7
15
56
59
21
59
49
53
60
48
7
1
59
15
21
48
49
7
53
56
59
60
59
7
1
7
15
21
1
6
