©2019 Precor Inc. | Diverging Lat Pulldown RSL 314 | Assembly Guide
6
3 2 M12 x 35 mm SHCS
2 washers, domed
Tool: Hex wrench, 10 mm

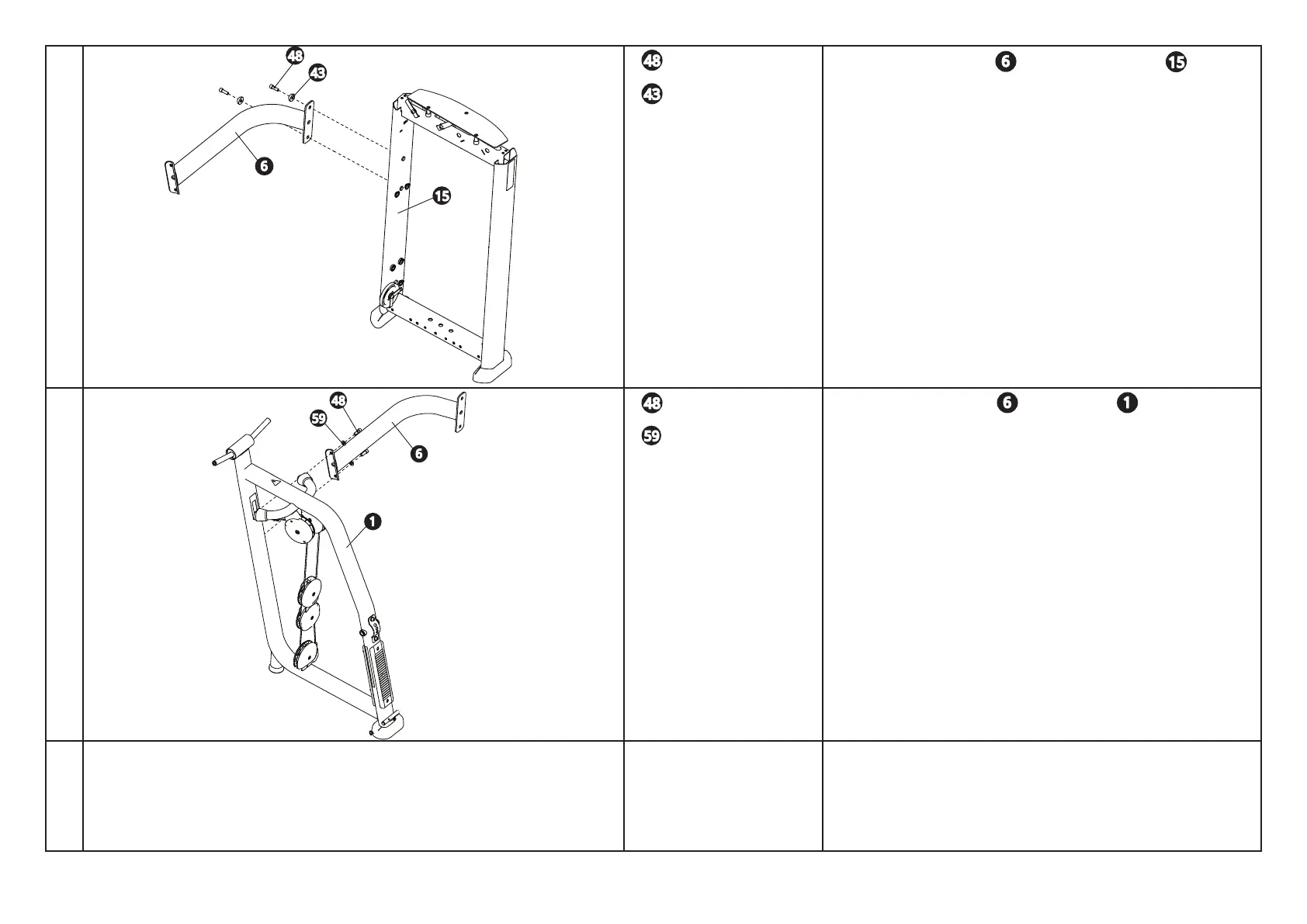

Attach upper cross brace to weight stack tower .
4 2 M12 x 35 mm SHCS
2 washers, 13 mm
Tool: Hex wrench, 10 mm
Attach upper cross brace to main frame .
5 Tools: Hex wrench, 10 mm
Socket wrench, 19 mm
Torque wrench
Gently rock the frame to align. Tighten all M12 fasteners to a
torque of 55 ft-lb (75 N-m).
Do not tighten the M10 screws installed in step 1 at this time.
They will be removed temporarily in a later step.
48
43
6
15
1
6
48
59
1
15
48
6
59
43
48
6
