Precor Resolute RSL 605 User Manual

©2019 Precor Inc. | Leg Extension RSL 605 | Assembly Guide
5

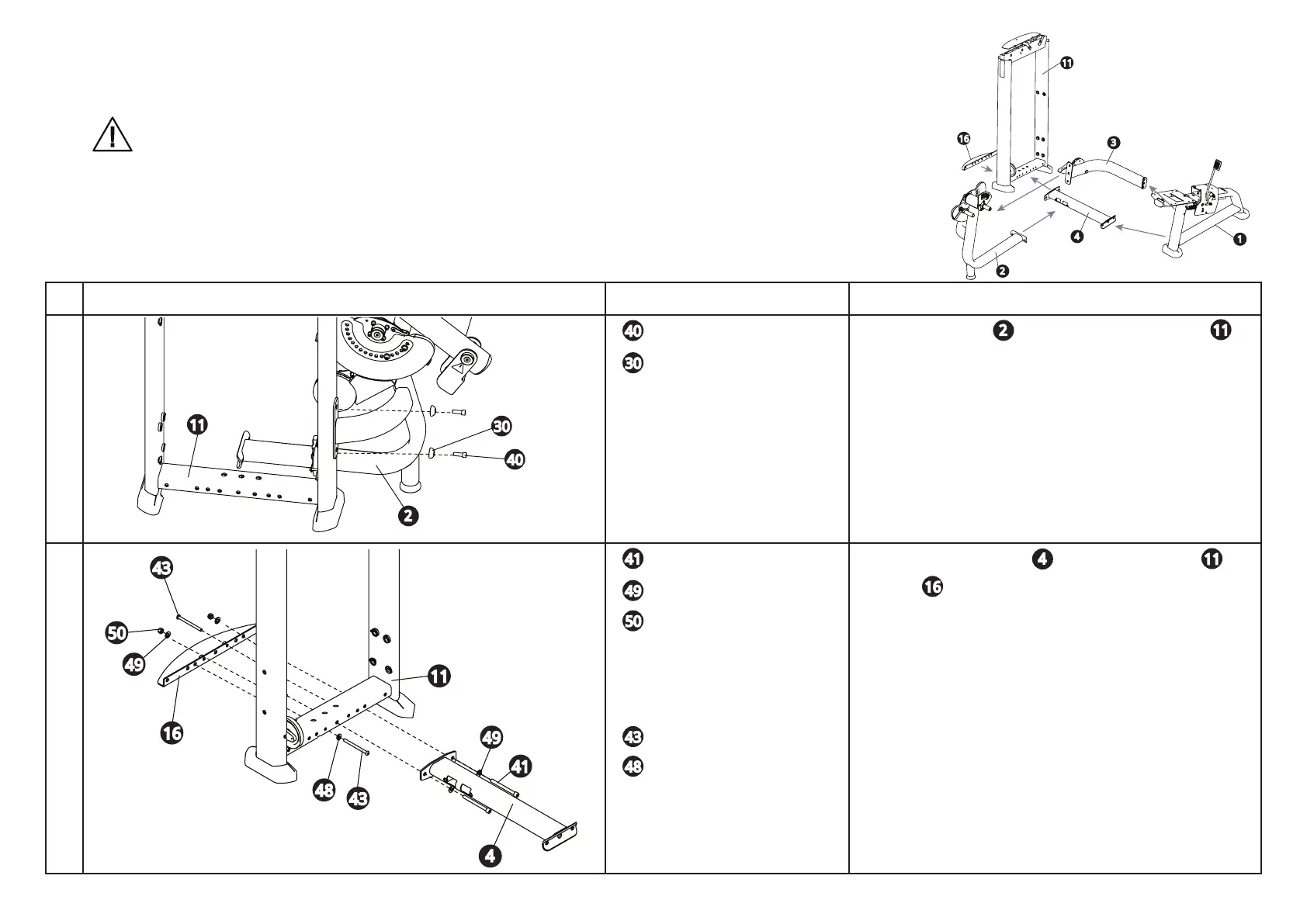

Frame Assembly
DO NOT tighten fasteners until instructed to do so.
Have your assistant hold frame parts in place during assembly.
Image Hardware Instructions
1 2 M12 x 35 mm SHCS
2 washers, domed
Tool: Hex wrench, 10 mm
Connect main frame to side of weight stack tower .
2 2 M12 x 130 mm SHCS
4 washers, 13 mm
2 M12 nylon lock nuts
Tools: Hex wrench, 10 mm
Socket wrench, 19 mm
2 M10 x 125 mm BHCS
1 washer, 11 mm
Connect lower cross brace to weight stack tower and
kick plate .
Align to second hole from right.
Insert guide rod fasteners, one from each side, to align kick
plate. Hand tighten only. These will be removed temporari-
ly in a later step.
30
40
2
11
11
16
30
4
49
2
11
43
50
49
16
43
49
41
48
4
11
3
16
11
4
2
1
40
43
48
41
50
