©2019 Precor Inc. | Leg Extension RSL 605 | Assembly Guide
9

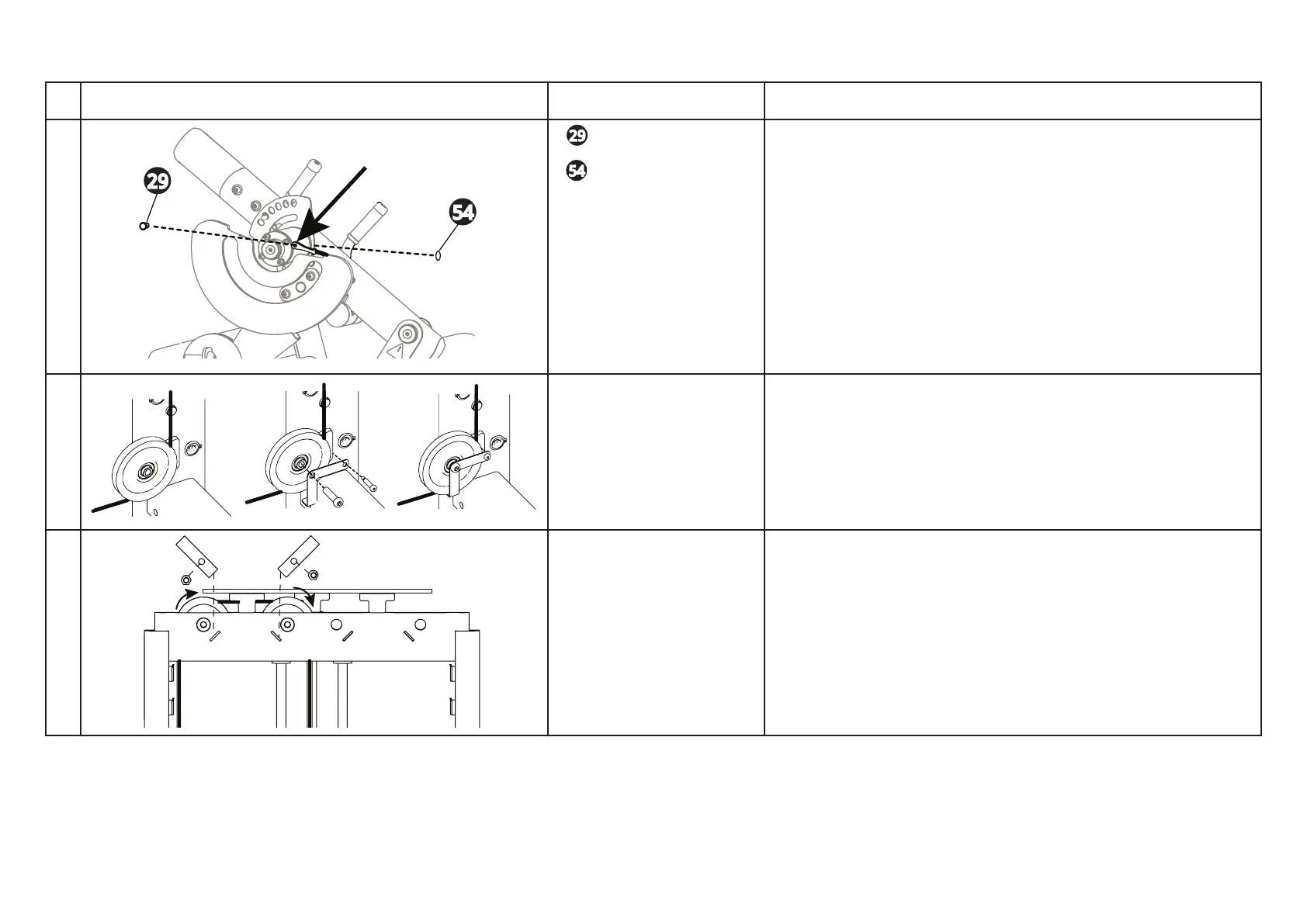

Route the Cable
Image Hardware Instructions
1 1 cable retainer pin
1 retaining ring, small
Tool: Retaining ring pliers
Attach cable to cam. Rotate cam downward as shown and secure. Slide
cable end over hole in cam and connect with pin and retaining ring.
2 Tools: Hex wrench, 8 mm
Hex wrench, 4 mm
To route the cable around the lower pulley on the weight stack tower,
remove the cable retainer. Route the cable around the pulley and then
replace the cable retainer.
3 Tools: Hex wrench, 10 mm
Open-end wrench, 19 mm
Torque wrench
To route the cable to the upper pulleys of weight stack tower, remove the
cable retainers, route the cables, and replace the retainers. Tighten to 50
ft-lb (67 N-m) of torque.
29
54
29
54
