Precor Resolute RSL 605 User Manual

©2019 Precor Inc. | Leg Extension RSL 605 | Assembly Guide

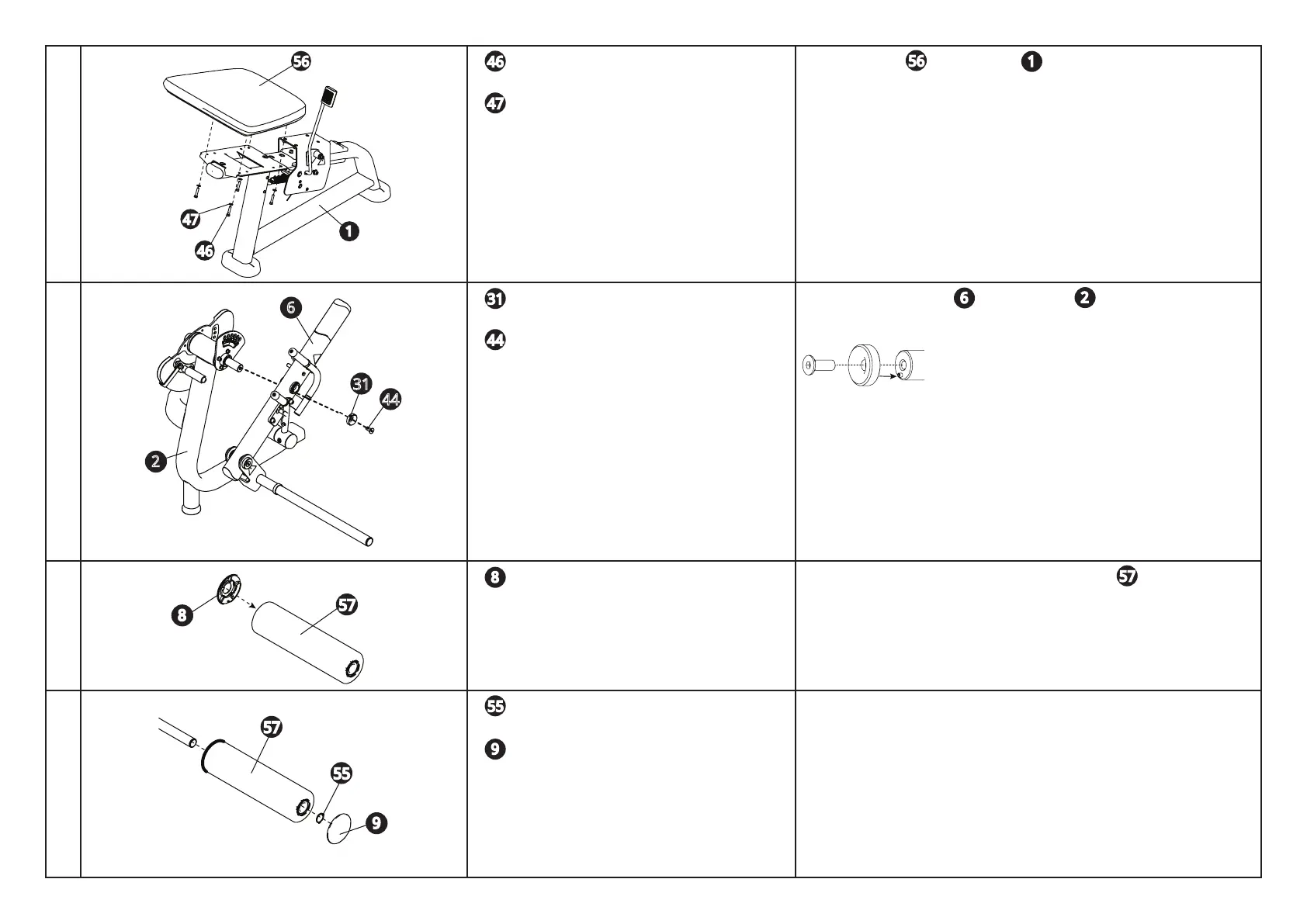

8
4 4 hex head screws 5/16-inch x 1½-inch
4 washers, 9 mm
Tool: Socket wrench, ½-inch with extension
Attach seat pad to seat frame with narrow edge towards back
pad.
5 1 end cap
1 FHCS M12 x 35 mm
Tool: Hex wrench, 8 mm
Connect arm assembly to main frame . Slide arm onto shaft.
Align hole in end cap with pin on shaft and secure.
6 1 roller pad cap ring Prepare roller pad. Attach cap ring to roller pad .
7 1 retaining ring, large
1 roller pad cap
Tool: Retaining ring pliers
Slide roller pad onto shaft and secure. Snap on roller cap.
31
44
6
2
8
57
57
9
55
31
6
8
9
2
44
55
57
1
56
46
47
1
46
56
47
