Precor Resolute RSL 605 User Manual

©2019 Precor Inc. | Leg Extension RSL 605 | Assembly Guide
7

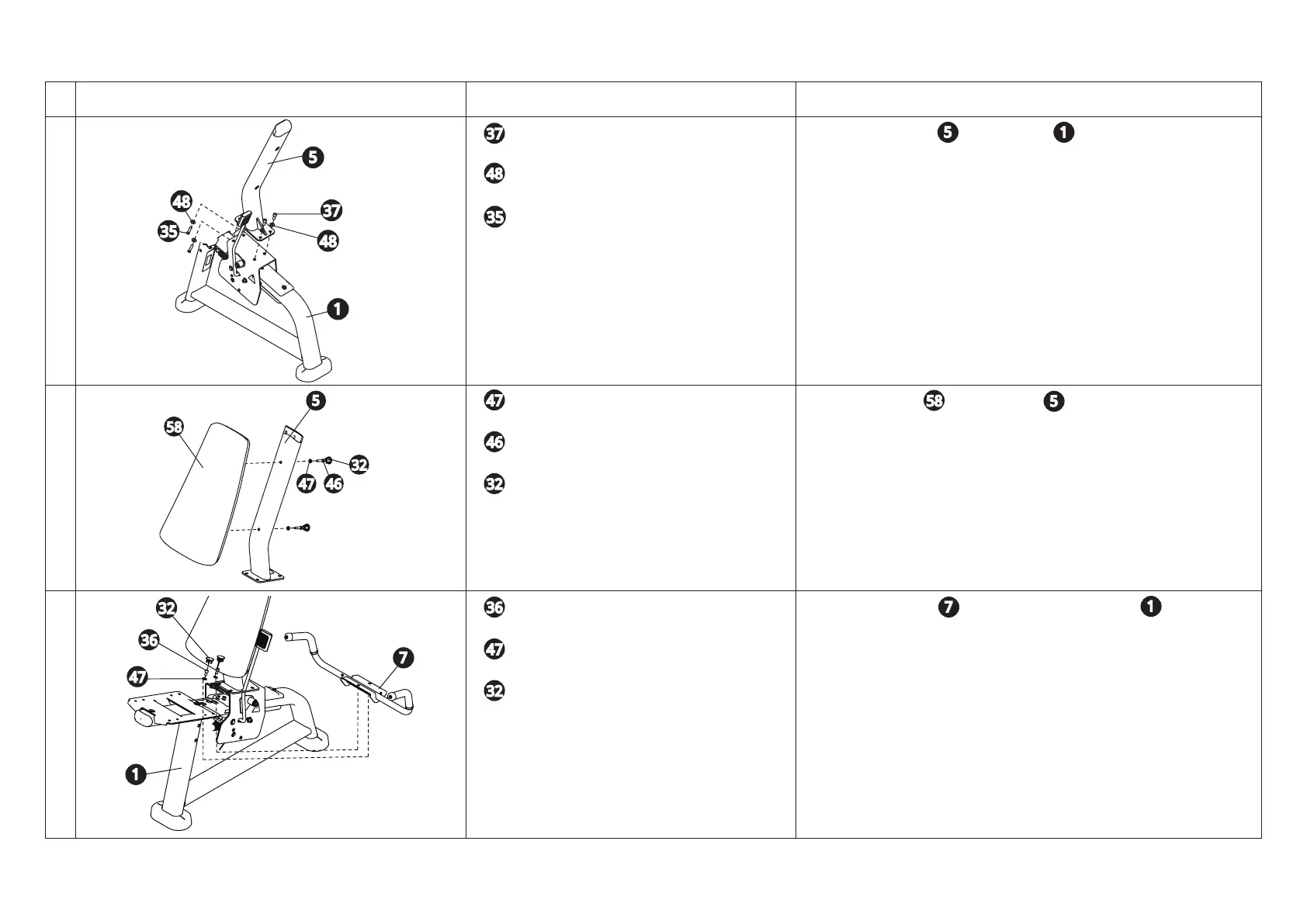

Seat and Arm Assembly
Image Hardware Instructions
1 2 M10 x 25 mm SHCS
4 washers, 11 mm
2 hex head screws, M10 x 25
Tools: Hex wrench, 8 mm
Open end wrench, 16 mm
Connect back frame to seat frame .
2 2 washers, 9 mm
2 hex head screws 5/16-inch x 1½-inch
2 hole plugs
Tool: Socket wrench, ½-inch with extension
Connect back pad to back frame .
CAUTION! Do not drop hardware down tube.
3 2 M8 x 15 mm SHCS
2 washers, 9 mm
2 hole plugs
Tool: Hex wrench, 6 mm
Connect handlebars to underside of seat frame .
CAUTION! Do not drop hardware down tube.
47 46
32
5
58
1
32
7
5
32
5
1
32
36
47
1
7
36
37
47
48
58
47
46
35
5
37
48
1
48
35
