Attaching the Console to the Treadmill
9
Attaching the Console to the
Treadmill
Before you begin, make sure there are four cables protruding upward from the
handrail assembly.
To attach the console bracket:
1. Position the console bracket against the welded bracket holder on the handrail
assembly as shown in the following figure.

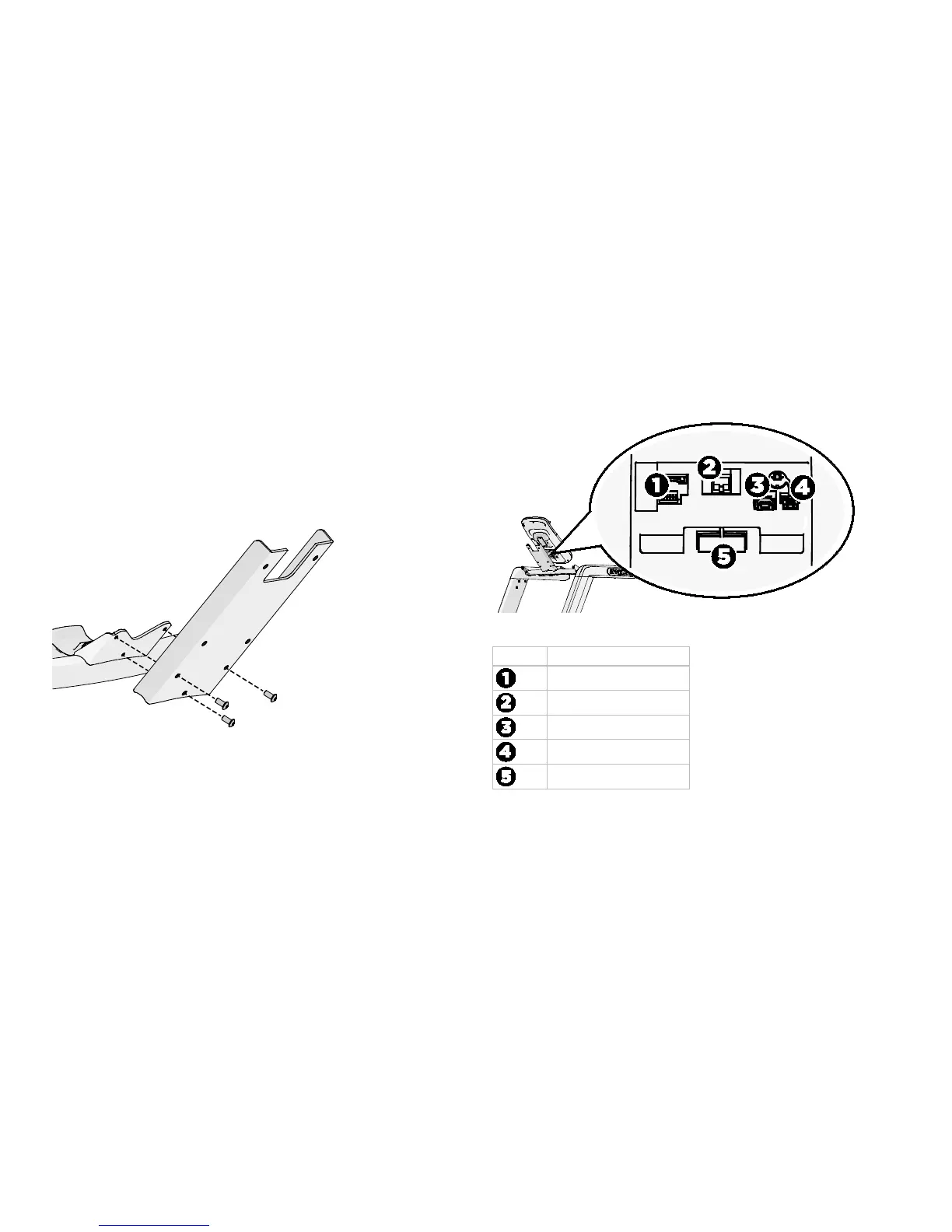

Figure 10: Console bracket attachment
2. Secure it using three ¹₄-inch x ¹₂-inch buttonhead screws.
Note: Do not fully tighten the screws until all three have been partially
threaded.
Attaching the Cables to the Console
Four cables attach to the console. This guide feature helps ensure that the cables
are not pinched when the console is attached to the treadmill.
Figure 11: Cable attachments on back of console
Number Cable or feature
Stop switch cable
Base unit data cable
Console ground cable
Touch heart rate cable
Cable retainer
