Page 7For technical questions, please call 1-888-866-5797.ITEM 63080
SAFETYSETUPOPERATIONMAINTENANCE

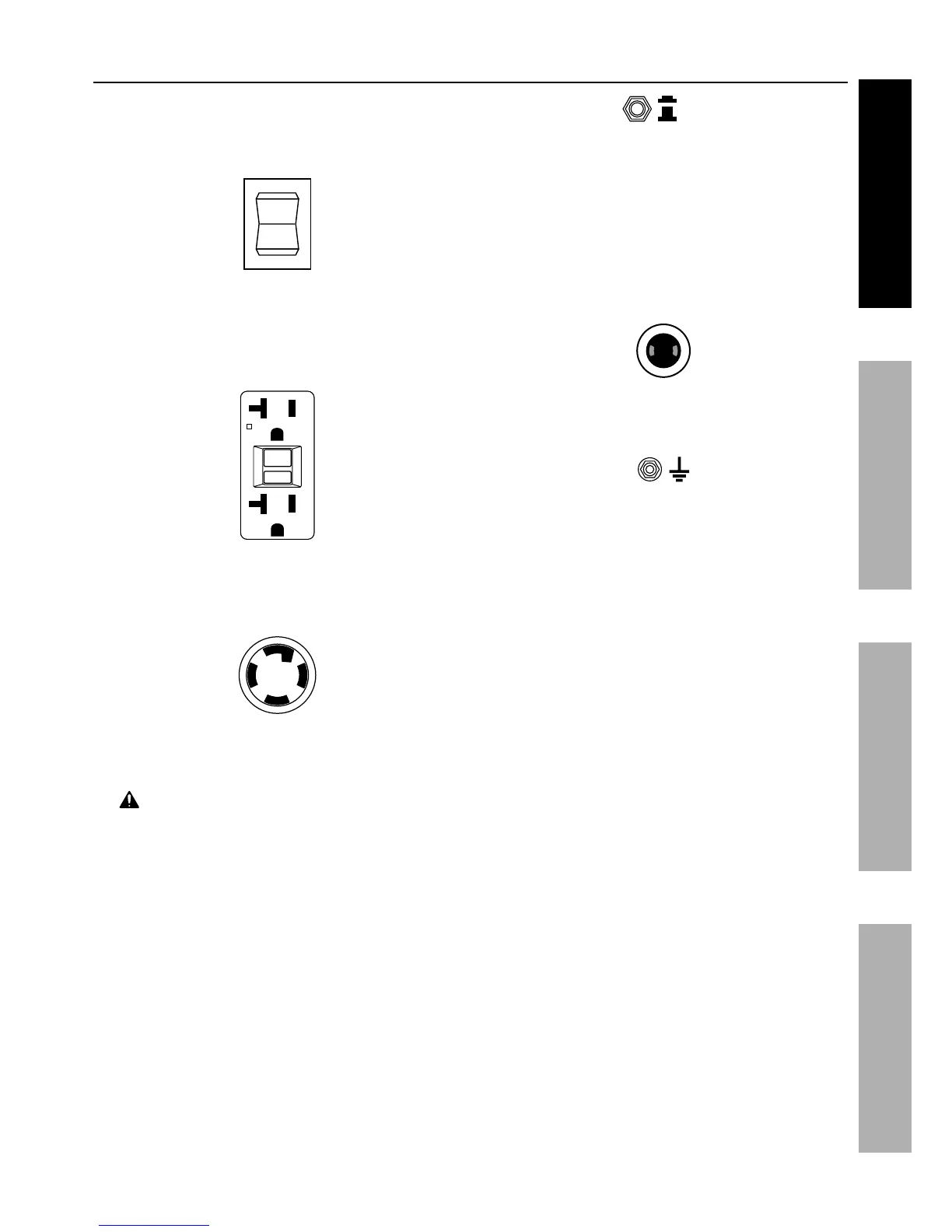

Components and Controls (continued)
The following are descriptions of the controls
on the power panel. Your Generator has
sockets to power your products with circuit
breakers to protect the voltage flow.
1.
I
O
Engine Switch: Used to start and stop the Engine.
2. AC Receptacles: The Generator contains several
AC Receptacles to power tools and equipment.
a.
RESET
TEST
RESET
TEST
3-Prong, duplex
120 volt GFCI receptacle
(NEMA #5-20)
b. 4-Prong, twistlock,
120/240 volt receptacle
(NEMA #L14-30)
WARNING! Connect tools and equipment
only to the Receptacle (120 volt or 240 volt)
that is compatible with the electrical
characteristics and rated capacities of
the tools and equipment being used.
3.
ON
OFF
Circuit Breakers: The circuit breaker protects
the Generator from overloading. The rating of the
breaker and the load it protects are marked near
the breaker. Should any of the Circuit Breakers trip,
the Generator will stop the electricity output. If this
happens, unplug all loads from the Generator.
Allow the Generator to cool down. Then, press
the tripped Circuit Breaker, restart the Engine, and
re-attach loads.
4. 12 VDC Receptacle: 12 VDC Receptacle provides a
power source for 12 volt DC items.
5. Grounding Terminal: Prior to each use, set
up the ground wire (not included) connection to
the Grounding Terminal to properly ground the
Generator. Refer to Grounding on page 8
for instructions on grounding the Generator.
