Premier Hazard 9004 - Wiring Loom Details; Pinout and Wire Functions

6

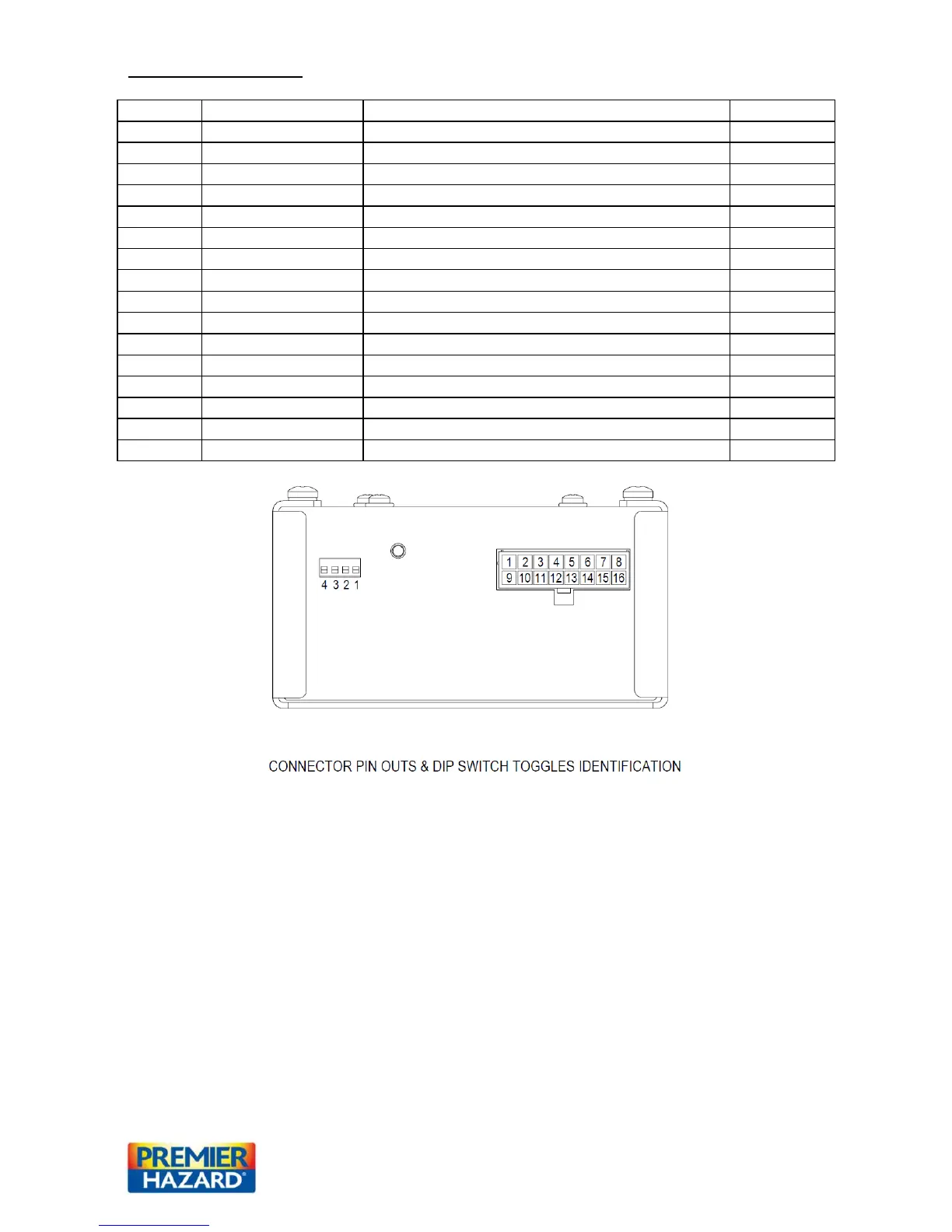

Wiring Loom information:
Pin No:
Wire Colour:
Function:
Wire rating:
1
Brown / white stipe
Speaker 100W output
10A
2
–
Speaker 60W output
10A
3
Brown
Speaker common output
10A
4
Gray
Not used on this version
1A
5
Blue
Relay output (Positive output, 200mA max)
1A
6
Not connected
No Function
–
7
Not connected
No Function
–
8
Pink
Data output (Positive output, 200mA max)
1A
9
Orange
Horn ring transfer input - HRT (pos. or neg. input)
1A
10
White
Interlock input (Positive input)
1A
11
Violet
Not used on this version
1A
12
Green
Not used on this version
1A
13
Yellow
Town / Country sound select (Negative input)
1A
14
Yellow / black stripe
Run input (Negative input)
1A
15
Black
Battery ground return
10A
16
Red
Battery power input
10A
