Installation Instructions Visit the Premier Mounts website at http://www.mounts.com Page 7
EST100/EST200

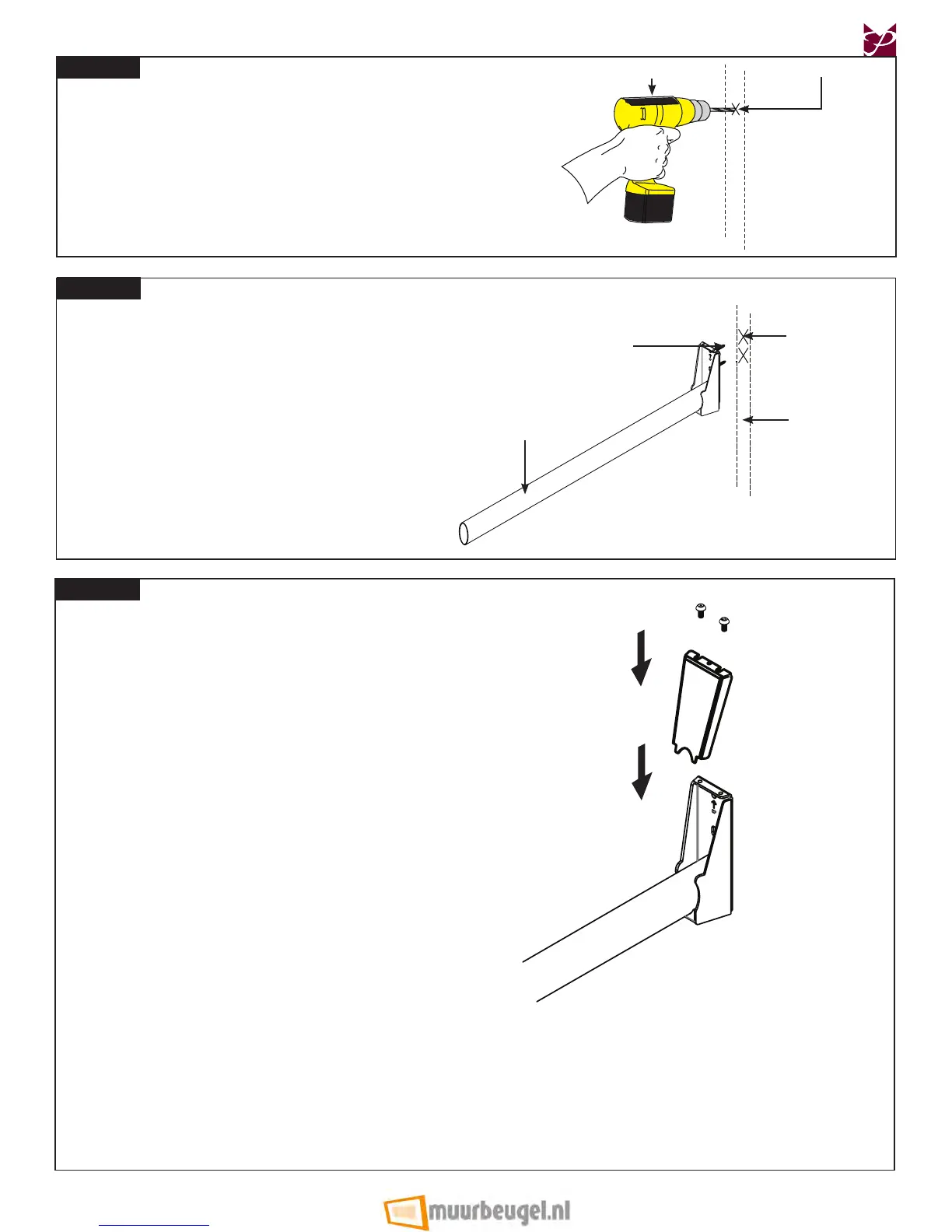

After the pilot holes have been drilled, use
two (2) #14 x 2˝ wood screws to mount the projector
arm to the wooden stud.
Step 5
Once the mounting points have been marked, use a
⅛˝ drill bit and portable drill to drill the pilot holes.
Drill
Marking
Step 4
Wood Stud
Marking
Projector
Arm
#14 x 2” Wood Screw
Step 6
Use two (2) M5 x 10mm security screws to attach the
projector arm cover plate to the projector arm.
Wood stud not shown
Go to the “Throw Distance Calculation” section on
page 10.
