Important Warnings
Ventilated Motors:
Do not attempt to connect this forward ventilated motor to any Premier shear head or
clipper head acquired by yourself or your dealer before June 20, 2003.
If you do the motor will overheat & destroy the internal windings.
Why? The air from this motor is driven forward and out through the heads. This is a
new feature that results in cooler operating temperatures (up to 20 degrees less) of heads,
blades, combs and cutters. However, for this to occur the shear head or clipper head is
designed to enable the air to exit through the head. Older clipper heads can easily be
changed to allow this by knocking out the 2 black plastic kidney-shaped plugs on either
side of the drive shaft.
Shear heads supplied before June 20, 2003 will need to be sent back to
Premier for retro tting before they can be  tted to this motor.
Clipping Machine Warning:
Unlike some other clipper motors, this motor will neither slow down nor sound
different when oil is needed. But failure to oil will quickly cause damage to the blades and
drive head. So you must apply oil by time instead of sound. Apply a small amount of oil
every 3 minutes to the tips of the teeth and each side of the blade by dipping them into a
dish of oil or pouring oil directly onto the teeth with a small oil container. And every 10
minutes drip oil into the small hole behind the tension assembly. Excessive wear can
occur if not oiled properly!

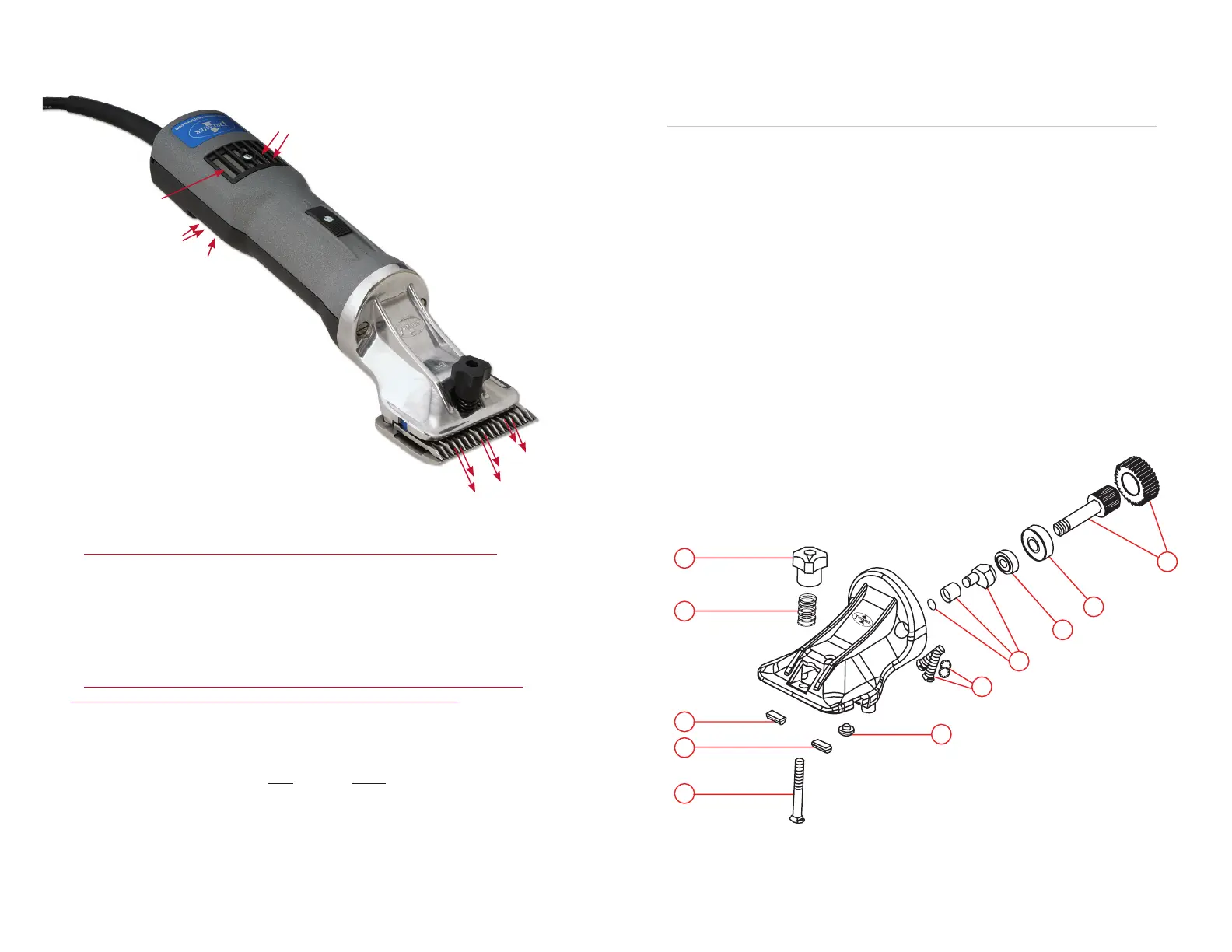

Outgoing
Air
Incoming Air
Air
Filter
Air Filter
Incoming Air
05
07
08
09
10
01
02
03
03
04
06
Item No. Part No. Description
01 82800401 1 - Tension nut
02 82800402 1 - Tension spring
03 82800405 2 - Upper blade guide
04 82800406 1 - Tension bolt
05 82800407 1 - Blade positioner
06 89600610 2 - Head screws and 2 washers (sold as a set)
07 82800409 1 - Crank spindle cover kit
(includes crank spindle, tension lock spring & excenter head)
08 82800411 1 - Small bearing
09 82800412 1 - Large bearing
10 82800414 1 - Crank spindle with fi bergear
Premier recommends returning units
back to us for internal repairs.
5
Premier 4000c Clipper Head Parts
