Premier PD500 - Page 26

24

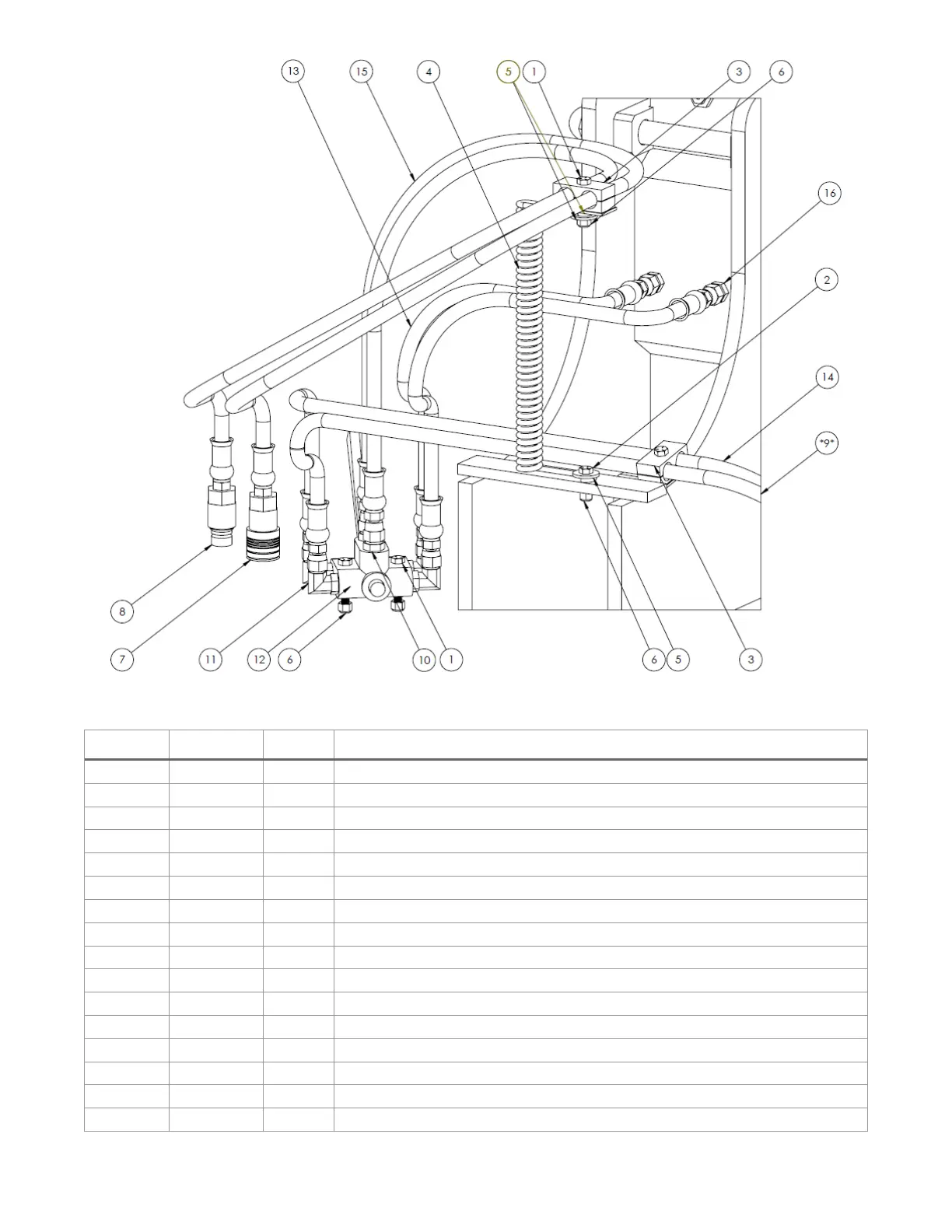

Figure B: Hose Kit Components for Attachment with Auger System
REF. #
PART #
QTY.
PART DESCRIPTION
1
40012
3
5/16”-18 x 2-1/2” HHCS, Grade 5
2
40013
1
5/16”-18 x 1-1/4” HHCS, Grade 5
3
40018
2
Hose Holder Kit, 3252T6
4
40057
1
Hose Holder Spring
5
40062
3
5/16” x 1-1/2” OD Fender Washer, Grade 5
6
40077
4
5/16”-18 Crown Lock Nut, Grade 5
7
61006
1
Quick Coupler, 1/2” FF Female
8
61007
1
Quick Coupler, 1/2” FF Male
*9*
61048
2
Mini-Skid 45 Degree Fitting (**Connects from hose end to auger motor)
10
61097
2
#10M JIC x #10M Pipe Fitting
11
61098
4
#10M JIC x #10M 90 Pipe Fitting
12
61099
1
6-Port Diverter Valve, #10 NPT
13
61100
2
1/2" x 27" Hose, #10F JIC x #10F JIC
14
61101
2
1/2" x 63" Hose, #10F JIC x #10F JIC
15
61102
2
1/2" x 75" Hose, #10F JIC x #12MB
16
61105
2
#10M JIC x #10M BS
