Premier PD500 - Page 27

25

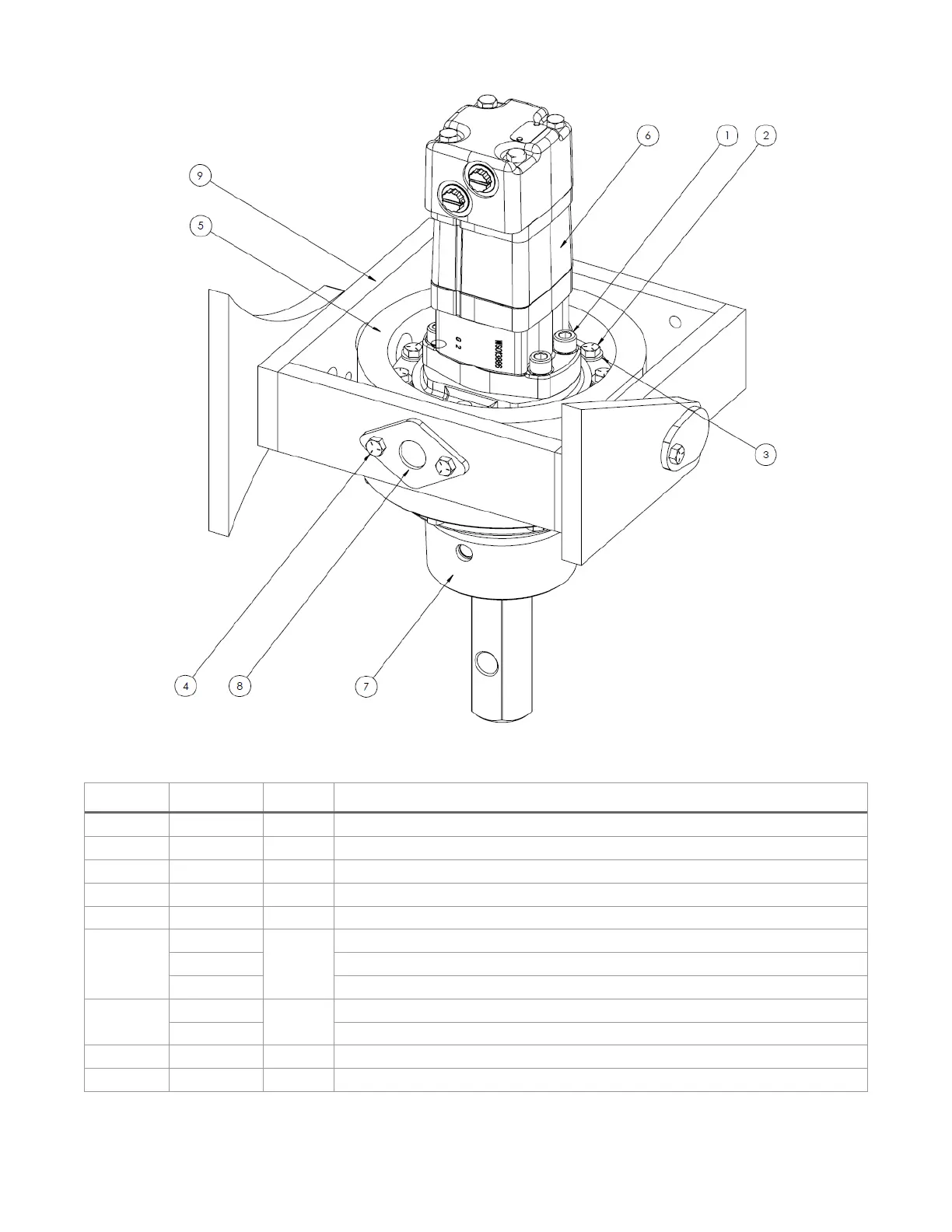

Figure C: Auger System Overview
REF. #
PART #
QTY.
PART DESCRIPTION
1
40004
4
1/2”-13 x 1-1/2” SHCS
2
40020
8
3/8”-16 x 2” HHCS
3
40045
8
3/8” Split Lock Washer
4
41002
4
3/8”-16 x 1” HHCS
5
50290
1
Mini-Skid Drive Ring
6
60024
1
9.4 Cl Motor (for MS11)
60026
15.5 Cl Motor (for MS14)
60027
18.97 Cl Motor (for MS18)
7
65017
1
2” Hex Output Shaft
65018
2-9/16” Round Output Shaft
8
91060
2
Swivel Pin Weldment
9
91061
1
Mini-Skid Housing Weldment
