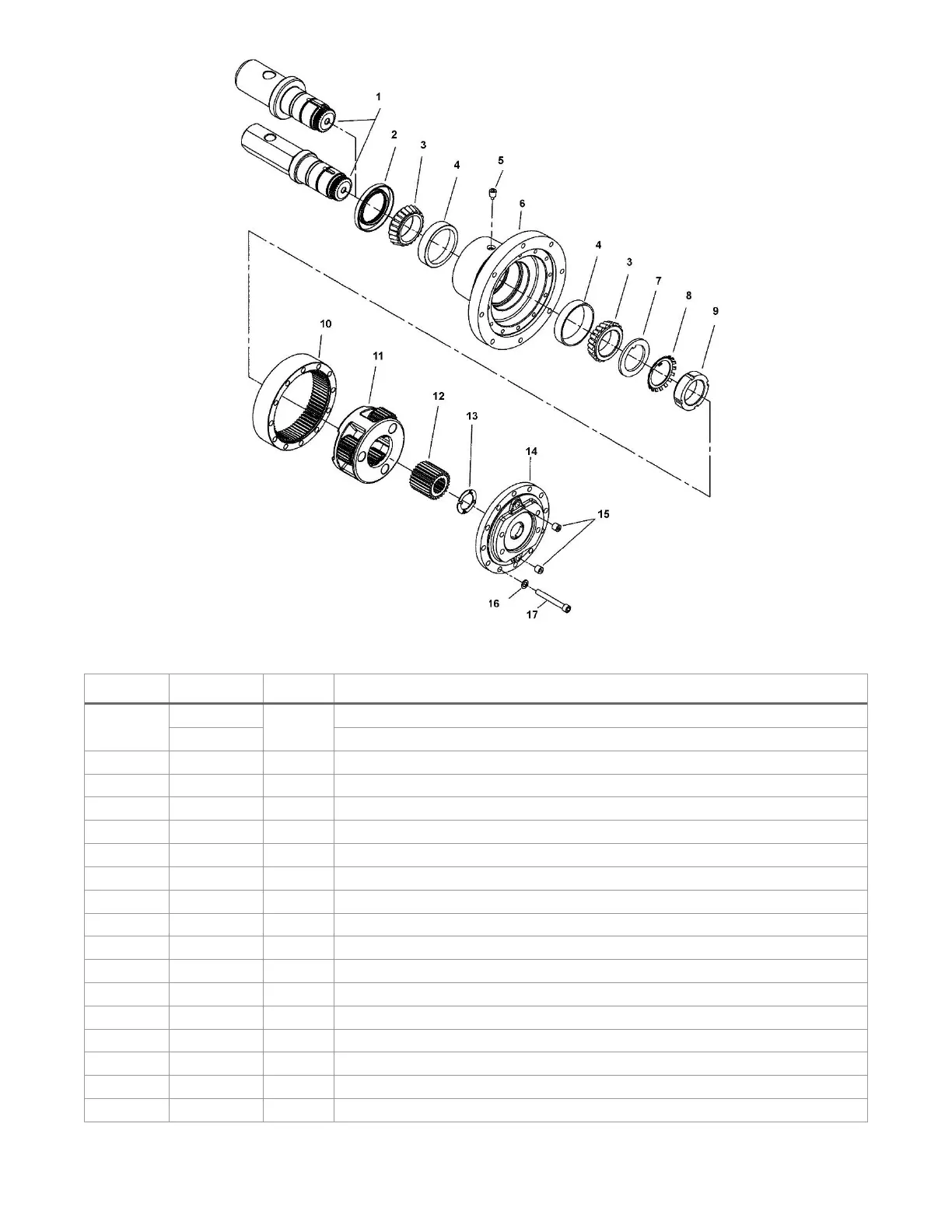

Figure D: Auger System Drive Unit
REF. #
PART #
QTY.
PART DESCRIPTION
1
69200
1
2” Hex Output Shaft
69201
2-9/16” Round Output Shaft
2
69202
1
Oil Seal
3
69203
2
Bearing Cone
4
69204
2
Bearing Cup
5
69205
1
Magnetic Plug
6
69206
1
Hub
7
69207
1
Thrust Washer
8
69208
1
Lock Washer
9
69209
1
Lock Nut
10
69210
1
Ring Gear
11
69211
1
Secondary Carrier Assembly
12
69212
1
Sun Gear
13
69213
1
Thrust Washer
14
69214
1
Cover
15
69215
2
Pipe Plug
16
69216
12
Washer
17
69217
12
Socket Head Cap Screw
