Premier WP-4 - Connect the Red Tube from Faucet to RO Module; Connect the Blue Tube from the Faucet to RO Module

Page 10
Connect the Blue Tube from the Faucet to RO Module
Step 25
Step 24
Connect the Red Tube from Faucet to RO Module
Insert the open end of the red 1/4” tube attached to the RO faucet
into the 1/4” X 1/4” quick connect fi tting on the RO Manifold. Make
sure the tube is pushed in all the way to the tube stop. (See Picture)
Insert the blue 3/8” tube from the faucet into the port on the module marked “FAUCET”.
Make sure the tube is pushed in all the way to the tube stop.
A connection to a refrigerator / ice maker may be tee’d into this blue tube.
Premier offers an ice maker install kit part # 500102 (See Page 22).
Note:

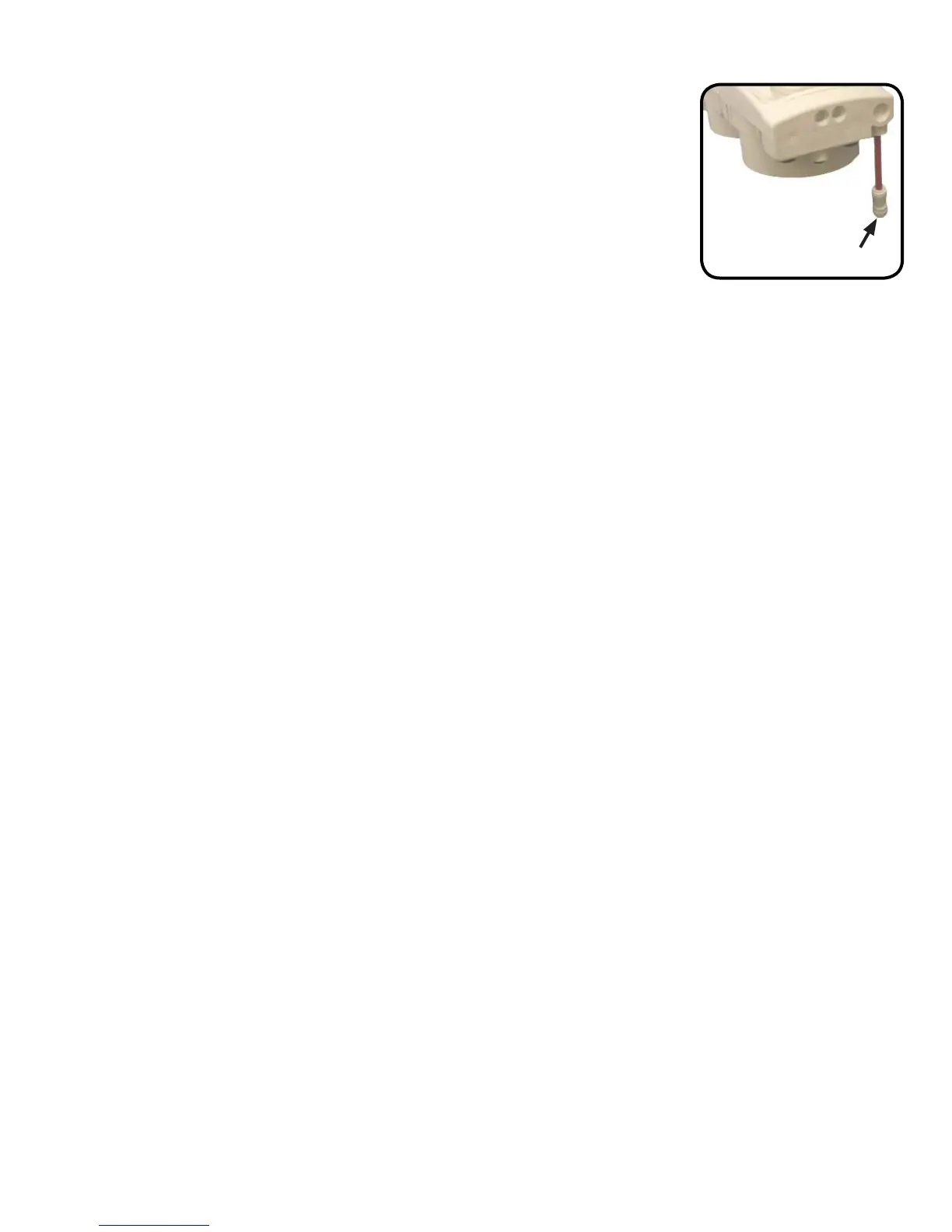

Connect red faucet tube.
